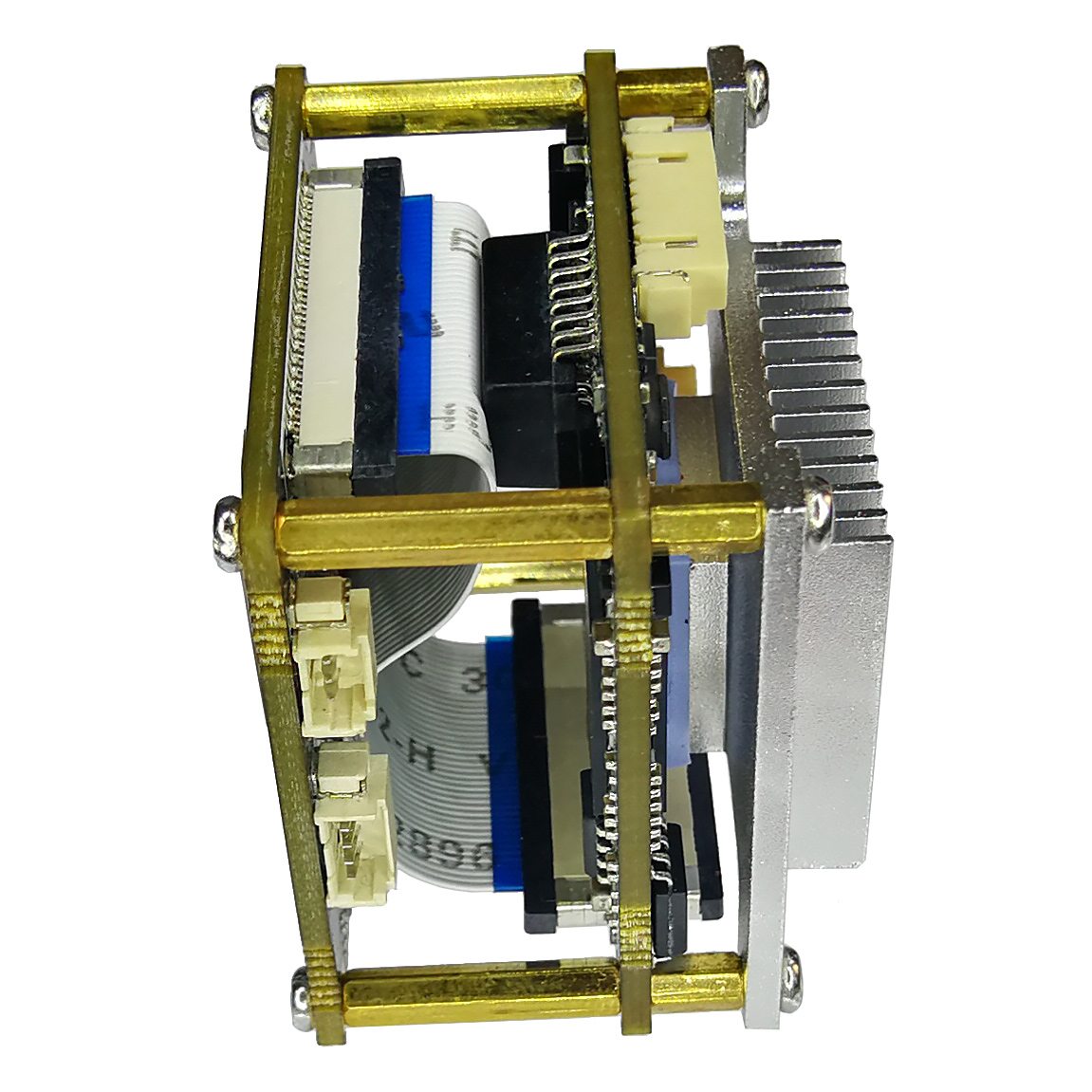

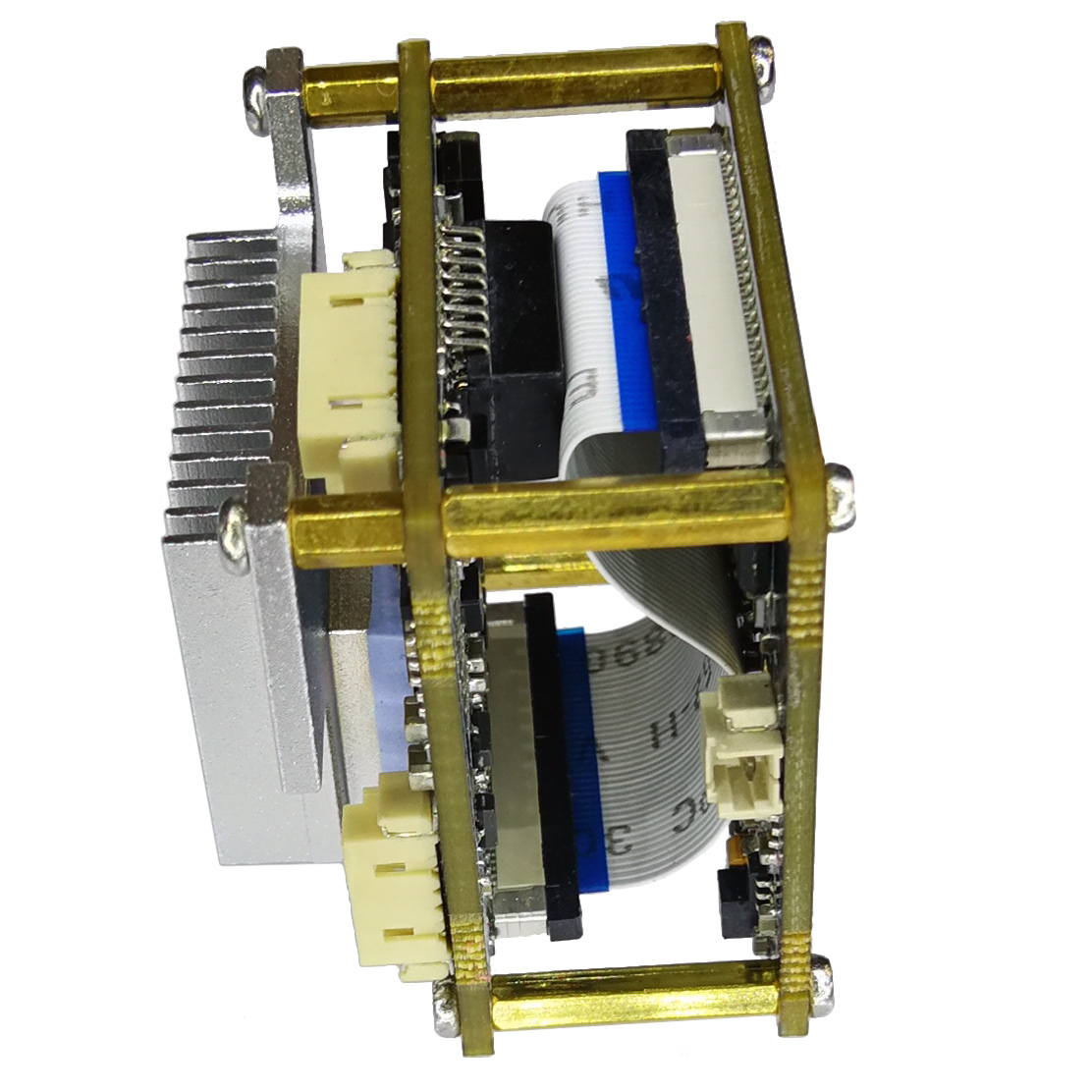

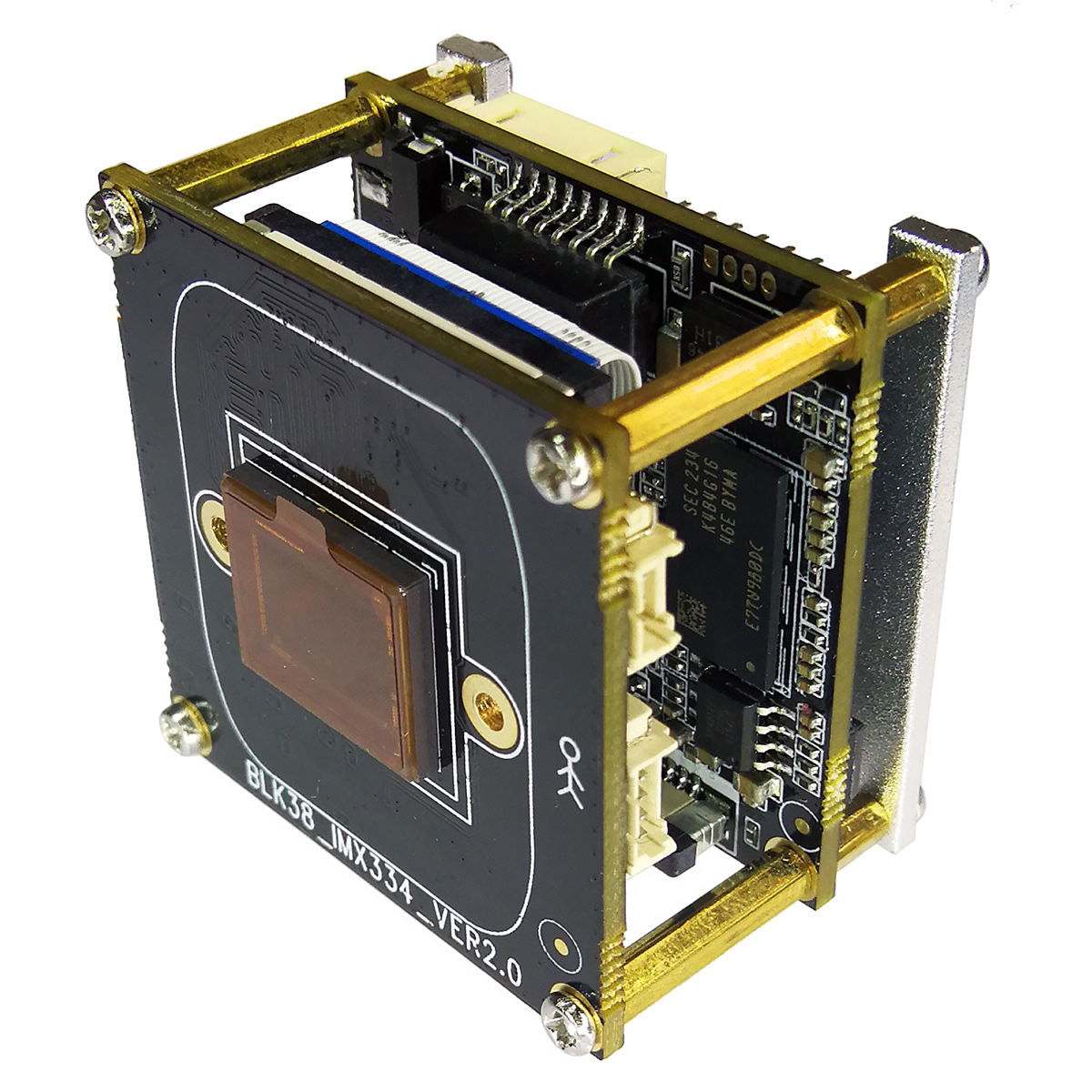

H334A 30fps 3840x2160 1080P 1/1.8" Sony Starlight IMX334 + HI3516AV300 8MP CCTV IP CAMERA Board Security Camera Module

Hi3516AV300，Cortex   A7@900MHz

Sensor

1/1.8" Progressive   Scan CMOS IMX662

Min illumination

Color：0.0001Lux@F1.0(AGC ON), Black &   White：0Lux(IR ON)

WDR

120 dB

Main Stream Resolution

30 fps@（3840x2160, 2880x1620, 2560x1440, 1920x1080)

Sub Stream Resolution

30 fps@（704×576，640×480）

Coding

H.265+/H.265/H.264

Bitrate

32 Kbps~16 Mbps

H.264 coding

Baseline Profile/Main   Profile/High Profile

H.265 coding

Main Profile

Bitrate

CBR，VBR

OSD

Support

Image Enhance

Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission

Image settings

Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night switch support

Audio port

1ch input, support mic / line in; 1ch output support earphone or amplifier

Audio sampling bitrate

8 kHz

Audio coding format

G.711u law / G.711a   law / G.726 / AAC-LC

Preview channels

8ch MAX

Protocol

HTTP, HTTPS, TCP/IP,   UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol

Browser

Preview with plugin：IE10，IE11

Preview with local service：Edge，Chrome，Firefox   etc.

Network

1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive

Audio

1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or   amplifiers

LED light

Support photosensitive detection input, support PWM dimming

USB

1 USB2.0 (5V Power)，Support 4G/WiFi (Optional)

Reset

Support

CVBS output

Not available

Size

38x38x18mm，38mm dual board structure

Weight

20 g

Working temperature

-20°C ~ +60°C

Power consumption

DC12V Power input,   1.2W (Max @30fps), 1.8W (Max @60fps), 2.4W (Max @90fps)
