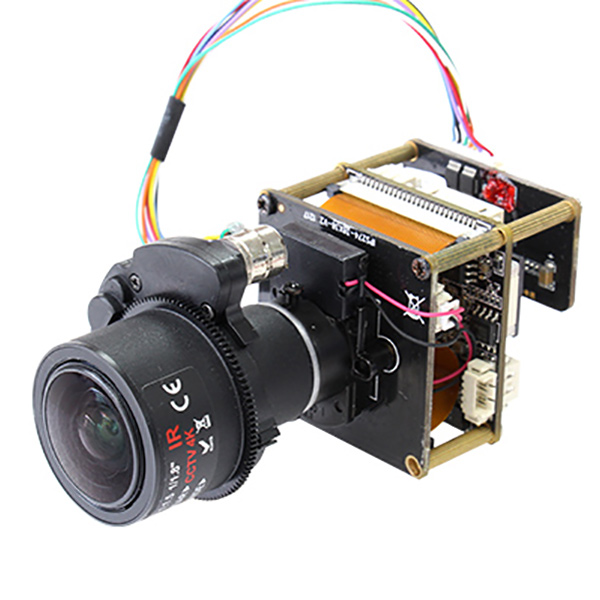

IP19VS226DR-AZ3611 1/1.7" 12MP 4K Sony IMX226 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens

IP19VS226DR-AZ3611 1/1.7" 12MP 4K Sony IMX226 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens

SKU: IP19VS226DR-AZ3611

Sensor:

Video Coding:

Hole Distance:

Resolution:

$268.00

Weight: 0.05 kg

Description

Product features:

  • Use latest standard H.265 video compression technology, High compression ratio,accurate and stable stream control ,support dual stream

  • Use 1/1.7 inch 12.0MP CMOS, Sony high performance image sensor

  • 3X optical zoom, focus faster, zoom process with clear throughout

  • Built-in automatic night and day double filter switching mechanism, with manual or automatic color

  • Support dual stream

  • Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm

  • Support intelligent coding control

  • Max supports 4 ROI regions of interest

  • Support rich network protocol

  • 1/1.7" 12.0MP/4000*3000@15FPS  1/1.9" 4K 4096*2160@25/30fps

  • Support D-WDR, 3D noise reduction

  • Support ONVIF protocol, GBT28181

Model IP19VS226DR-AZ3611
Camera Type 3.6-11mm 3x Zoom Autofocus lens+4K 8MP 12MP IP Camera Module
Camera
Image Sensor  1/1.7"  12.40M-Effective Pixel Color CMOS Image Sensor IMX226CQJ
DSP Hisilicon 3519V101
Effective Pixels 4072 (H) X 3046 (V) Approx. 12.40M pixels
Scanning System Progressive
Min. Illumination 0.0001Lux/F1.2
S/N Ratio ≥50dB(AGC OFF)
IR-Cut Support
Day/Night Auto(ICR)/Color/B/W
WDR Digital WDR  >80db
White Balance Auto
Gain Control Auto
Noise Reduction 3D-DNR
Privacy Masking Up to 4 areas
Image parameter Bir/Con/Hue/Sat/Acu/Gamma
Image basic Mirror/Flip/LSC/CTB/AntiFogging/Defog
Rotation Optional (90°/270°)
Exposure Time Optional (1/12~1/8000s)
Image Stabilizer Close/Open
Lens
Lens Type 4K 8MP HD Motorized Zoom Lens
E.F.L. 3.6-11 mm
Electric zoom Support
Iris Auto IRIS
Focus Auto Focus
Format 1/1.8"
F No F1.5
Mount Type Φ14
Video/Audio
Video Compression H.265+/H.265/H.264/Mjpeg Dual-stream encoding
Resolution Main Stream: 12.0mp 15fps, UHD 4K 8.0mp 30fps
Sub Stream:D1,VGA,CIF,  (1~25/30fps)
Frame Rate 12mp 15fps, 8mp 1~25/30fps
Bit Rate 30Kbps~16Mbps, support VBR, CBR
Text Overlay Channel, Date & Time, Bit Rate
Audio Compression G.726/G.711A/G.711U
Audio bit rate 16000
Sampling rate 8K
Network
Data Storage Video record, Picture format
Trigger Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission FTP, E-mail, Browser, CMS
Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF ONVIF V2.4
Max. User Access 9 users, IE, Google, Firefox
Smart Phone Support iPhone, iPad, Android View
Interface
Audio 1ch Audio MIC input/ line input, 1ch output
BNC Video out 1CH Analog CVBS output
RS485 1ch
USB 1ch (Support 128G USB flash/WIFI/3G Extended)
Alarm 1ch input
Reset Support
Optional function#
Memory Card# micro SDHC / SDXC card slot, maximum 128GB (with Alarm 1ch output)
POE # IEEE802.3af
General
Power Supply DC12V
Power Consumption <3W
Working Environment  -20°C~+55°C , Less than 90% RH
Product Size 38 x 38 x 30mm
Net Weight 0.15kg
#Remark: POE,Memory Card Slot, are optional. If need please consult with us.


JP1 powerinterface
1DC 12V
2video GND
3Analog video CVBS output
4GND
JE1 network interface
1RJ45_1 (TX+)
2RJ45_2 (TX-)
3RJ45_3 (RX+)
4RJ45_6 (RX-)
5network connect indicator light (green light)
6network status indicator light(yellow light)
J1 IR-CUT interface
1IR-CUT control signal 5V
2IR-CUT control signal 5V
J2 DC auto irisinterface
1drive-
2damping-
3damping+
4drive+
J5 IR light board interface
1IR light board12V power output
2GND
3IR return signal input(range:0.8V-12V)
4IR light enable control
JOV1 video loop outport
1Analog video output
2GND
J6 function interface
1audio input
2audio GND
3audio output
4GND
5reset, resume to default setting
6alarm input, effective for low level
7NULL
8NULL
9RS_485+
10RS_485-
JU1
1GND
2USB DP
3USB DM
45V power output
J7
1USB_DP
2USB_DM
35Vpower output
4GND
5SD card pull-up resistance power
6SD card detection signal
7SD card time colock cable
8SD card Data cable DATA3
9SD card Data cable DATA0
10SD card Data cable DATA1
11SD card command cable CCMD
12SD card connect power to enable GPIO
13SD card Data cable DATA2
14alarm output GPIO
15NULL
16NULL

-EP for extra POE support


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
