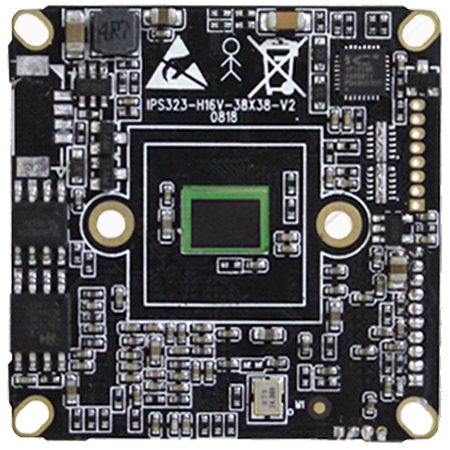

IP16VS323 1/2.9" 2MP Sony IMX323 + HI3516CV200 CMOS IP Camera Module Board (2MP, IMX323)

IP16VS323 1/2.9" 2MP Sony IMX323 + HI3516CV200 CMOS IP Camera Module Board (2MP, IMX323)

SKU: IP16VS323

Sensor:

Video Coding:

Hole Distance:

Resolution:

$23.88

Weight: 0.03 kg

Pixel Size:

Description

  • 1/2.9" IMX323 Low illumination CMOS sensor

  • Adopt Hi3516CV200, standard board size:38mm*38mm

  • support Day& N switch(optional IR-CUT) infrared sensor, Support LDR signal linkage, apply to common Box, Bullet, dome and etc housing

  • H.264 video coding, support dual streaming, Max resolution:1920*1080, Color 0.1Lux@F1.2,D& N 0.01 Lux@F1.2

  • Support onvif 2.4protocol, Support compatible with most oversea and local platform software manager system

Model NoIP16CV2323(2MP)
Hardware
Chipset

HI3516CV200 1/2.9" CMOS IMX323

Min illuminationColor 0.1Lux@F1.2  B& W 0.01Lux@F1.2
SNR> 50db(AGC OFF)
WDRDWDR > 80db
Interface
audio/talk input1CH audio MIC input/line input
audio output1CH line output
Analog video outputNot support
Storage Card interfaceNot support
IO interface1CH reset
USB interface1x USB interface，support TF Card Storage expansion(max 128G)
video coding
Coding formatH.264 Baseline, Main Profile, High Profile coding
MJPEG coding


Main steaming

1920*1080, 1-25(30)frame/s 1280*720, 1-25(30)frame/s

Sub-steaming

704*576, 1-25(30)frame/s 640*480, 1-25(30)frame/s
640*352, 1-25(30)frame/s 320*240, 1-25(30)frame/s
video compression rate32Kbps-16Mbps continuous adjusting, support CBR/VBR
Subtitles overlaysupport channel name, date time, streaming info overlay,overlay position able to adjust
Data transmission & Storage
Data Storagevideo, image file
Storage mechanismManual, auto(circulation, time, alarming switch volume,motion detection)
Alarm Data TransmissionFTP, E-mail,browser, manage software
Support ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF ProtocolStandard onvif 2.4 Protocol
Client browseSupport IE6.0 and above(embedded Web Server in device)browse by browser，support 10users to access simultaneously(MAX)
Mobile clientSupport iPhone, iPad, Android
General specification
Power supplyDC12V/POE(external connection POE module)
Device power2W(MAX)
Device dimension38(long ) * 38(wide ) *15(high)mm(without lens)
IR-CUT pitch of holes20mm
Device weight0.06kg
JP4 Power interface
1DC12V
2NC
3NC
4GND
J6 Network interface
1RJ45_1 (TX+)
2RJ45_2 (TX-)
3RJ45_3 (RX+)
4RJ45_6 (RX-)
5Network connection indicator light（green light）
6Network status indicator light（yellow light）
J1 IR-CUT interface
1IR-CUT control signal 12V
2IR-CUT control signal 12V
J3 IR board interface
1IR Board 12V power supply output
2GND
3IR return signal input(Rang:0.8V-12V)
4IR enable control
J2 Function interface
1audio input
2audio GND
3audio output
4Reset
5GND
6USB_DP
7USB_DM
85V output
9alarm output controlling GPO
10Alarm input GPO

Pin Definition

  • Single Board H.264 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2NC
    3NC
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in
