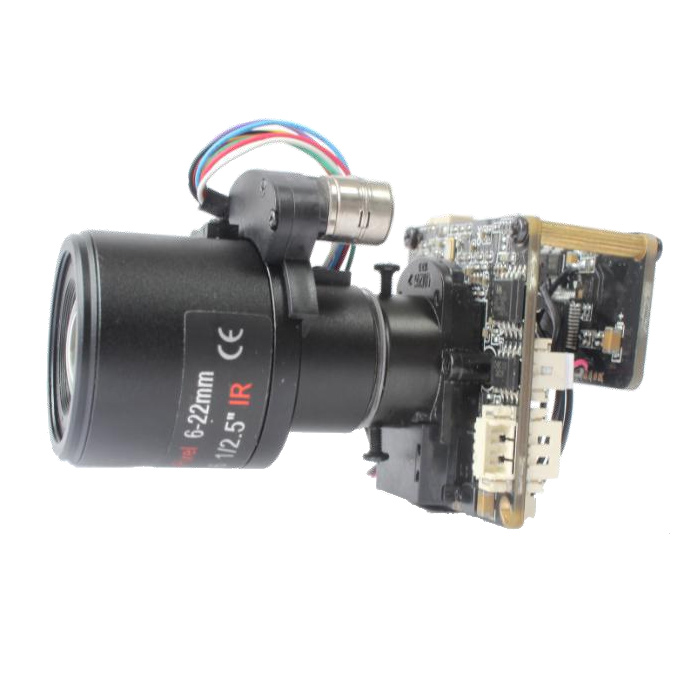

IP16DV689-AZ0622 1/3" OV4689 4MP IP Camera module 6-22mm auto zoom lens

SKU: IP16DV689-AZ0622

Sensor:

OV4689

Video Coding:

Analog/CVBS, H.264, H.265+, MJPEG

Resolution:

$66.61

Weight: 0.09 kg

Pixel Size:

2.0μm

Description

4.0MP, single board size: 38mm*38mm
interface is plentiful: audio input/output, reset, USB interface, support D&amp N switch(optional IR-CUT) infrared sensor, support LDR signal linkage
H.264/H.265video coding, support dual streaming, Max resolution:2592*1520, color 0.6Lux@F1.2 B&W 0.08Lux@F1.2
support onvif protocol, able to integrate with most oversea and national platform software
suit for assemble metal dome and bullet.

Model No	IP16D4689-AZ0622(4.0MP)
Hardware
Chipset	Hi3516D 1/3" OV4689 CMOS
Min Illumination	Color 0.6Lux@F1.2 B&W0.08Lux@F1.2
SNR	>50db(AGC OFF)
Lens Type	3X optical zoom Lens 6-22mm
Interface
Audio/talk input	1 CH Audio MIC input/line input
Audio output	Support 1 CH Audio output
IO interface	1 CH reset
USB interface	1pcs USB interface, support TF card storage expansion(MAX 128G)
Video coding
Coding format	H264, Baseline/ Main Profile/ High Profile coding H.265 Main Profile coding
Coding format	MJPEG coding
Main streaming	2592*1520, 1-15 frame/s
Main streaming	20481520, 1-25(30) frame/s 19201080, 1-25(30) frame/s
Sub- streaming	704576, 1-25(30) frame/s 640480, 1-25(30) frame/s
Sub- streaming	640352, 1-25(30) frame/s 320240, 1-25(30) frame/s
Video	32Kbps-16Mbps able to continue adjusting, support CBR/VBR
Subtitle overlay	support channel name, date time, streaming info overlay,overlay position able to adjust
Data transmission & storage
Data storage	Video, image files
Storage mechanism	Manual, auto(circulation, time, alarming switch volume, motion detection)
alarm	FTP, E-mail, browser, CMS
Support protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Support WIFI	802.11b/g/n, support WEP, WPA, WPA2 encryption protocol
ONVIF protocol	Standard ONVIF protocol
Client browse	Support IE6.0 and above(embedded Web Server in device)browse by browser, support 8 users to access simultaneously
Mobile client	Support iphone, ipad, Android
General Specification
power supply	DC12V/POE(need connect external POE module)
Device power	3W(MAX)
Device dimension	38(long) * 38(wide) *10(high)mm(without lens)
IR-CUT pitch of holes	22mm
Device weight	0.1Kg

Pin Definition

Single Board H.265 Full function

No.	Pin Defination	Pitch	Preview
JP4 Power interface		1.25mm
1	DC12V
2	Video GND
3	CVBS Signal Out
4	GND
J6 Network interface		1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connector light(Green)
6	Network status light(Yellow)
J1 IR-cut interface		1.25mm
1	IR-CUT control signal 12V-
2	IR-CUT control signal 12V+
J3 LED Board interface		1.25mm
1	LED board 12V power out
2	GND
3	LED feedback signal (0.8V-12V)
4	Infrared light enable control
J2 Function interface		1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	Reset
5	GND
6	USB_DP
7	USB_DM
8	5V power out
9	alarm out I/O(3.3V Level signal)
10	Alarm in
