IP16AV510D 1/2.7" OmniVision PureCel OS05A10 + Hi3516A CMOS BOARD 5.0 MegaPixel Real-Time FOR CCTV IP Camera (5MP, OS05A10)
Description

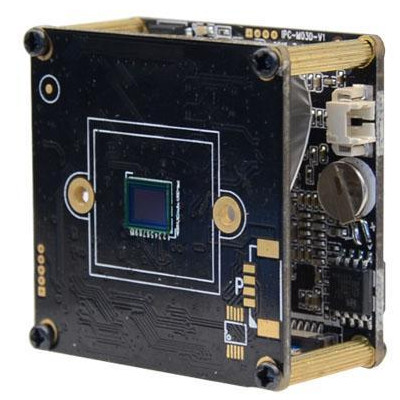

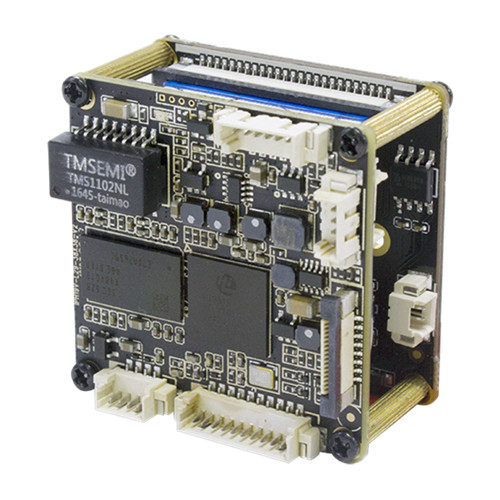

5.0 megapixel 2 Boards IP Camera Module, Hi3516A + OS05A10
1/2.7" 5.0 Megapixels Progressive Scan OS05A10 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of2592*1944, 0.05 Lux@F1.2 (color)
0.01 Lux@F1.2 (black and white )
38x38mm 2 boards
RS485,IR - CUT(day/night), adapt Bullet, Dome
H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible manyNVR and platform management software.
> Hisilicon Hi3516A
> 1/2.7" 5.0 Megapixels Progressive Scan OmniVision PureCel OS05A10 CMOS
> Max 5.0 Megapixels (2592*1944)
> H.264/H.265 & MJPEG dual-stream encoding
> Privacy Mask, Motion Detection
> Support Onvif 2.4 protocol
| Model | IP16AV510D(-AI/-ET9/-EP) | |
| Hardware | ||
| CPU | Hi3516A,1/2.7" OS05A10 COMS Sensor | |
| Mini illumination | Color: 0.05Lux@F1.2 Black and white: 0.08Lux@F1.2 | |
| S/N Ratio | ≥50dB(AGC OFF) | |
| WDR Range | D-WDR > 80db | |
| Interface | ||
| Audio/backtalk in | 1ch audio MIC in/line in | |
| Audio out | Support 1ch audio out | |
| CVBS out | Support 1ch video out | |
| I/O in/out | Support 1ch alarm in | |
| IO interface | 1 ch reset | |
| Interface | Support 1ch RS485 interface | |
| USB interface | 1ch USB interface,support TF card slot(max 128G) (Optional -ET9 Extension board with TF Alarm) | |
| Video coding | ||
| Coding format | H264, Baseline/Main Profile/High Profile cording H.265 Main Profile cording | |
| MJPEG coding | ||
| Resolution | Main stream | 2592*1944,1-25(30)fps/s |
| 2048*1536,1-25(30)fps/s | ||
| 1920*1080, 1-50(60)fps/s | ||
| Sub stream | 704*576,1-25(30)fps/s 640*480,1-25(30)fps/s | |
| 640*352,1-25(30)fps/s 320*240,1-25(30)fps/s | ||
| Video bit rate | 32Kbps-16Mbps,support CBR/VBR | |
| OSD setting | support channel name, date and time, stream information superposition, stacking position adjustable | |
| Data transmission and storage | ||
| Data storage | Video, Image file | |
| Storage mechanism | Manual, auto(circulation, time, alarming switch volume,motion detection) | |
| Alarm data trans | FTP, E-mail, browse, CMS | |
| Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP | |
| Wireless protocol | 802.11b/g/n, support WEP, WPA, WPA2 encryption protocol | |
| ONVIF | ONVIF2.4 | |
| Client browse | Support up toIE6.0 (built-in Web Server) browser, max 8 users | |
| Client APP | Support iPhone, iPad, Android | |
| General | ||
| Power supply | DC12V 1A/POE(POE optional) | |
| Power device | 3W(MAX) | |
| Device size | 38(L) * 38(W) *20(H)mm(without lens) | |
| IR-CUT hole | 22mm | |
| Device weight | 0.15kg | |
< tr
| JP1 Power interface | |
| 1 | DC12V |
| 2 | Video GND |
| 3 | CVBS output |
| 4 | GND |
| JE1 Network interface | |
| 1 | RJ45_1 (TX+) |
| 2 | RJ45_2 (TX-) |
| 3 | RJ45_3 (RX+) |
| 4 | RJ45_6 (RX-) |
| 5 | Network connection indicator light(green light) |
| 6 | Network status indicator light(yellow light) |
| Sensor board J1 IR-cut interface | |
| 1 | IR-CUT control signal 5V- |
| 2 | IR-CUT control signal 5V+ |
| Sensor board J2 DC auto light interface (Support automatic aperture model: -AI) | |
| 1 | drive- |
| 2 | damp- |
| 3 | drive+ |
| 4 | damp+ |
| Sensor board J3 Power lens interface (Support Electric lens model: -AZ) | |
| 1 | Focus A- |
| 2 | Focus A+ |
| 3 | Zoom A- |
| 4 | Zoom A+ |
| 5 | Zoom B+ |
| 6 | Zoom B- |
| 7 | Focus B- |
| 8 | Focus B+ |
| Sensor board J4 No difinition | |
| 1 | Infrared light board12V power output |
| 2 | GND |
| 3 | LED feedback signal input(0.8V-12V) |
| 4 | Infrared Light enable control |
| J6 function interface | |
| 1 | Audio in |
| 2 | Audio GND |
| 3 | Audio out |
| 4 | GND |
| 5 | Reset |
| 6 | Alarm in 1, low level effective |
Pin Definition
Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V
1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface
1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
