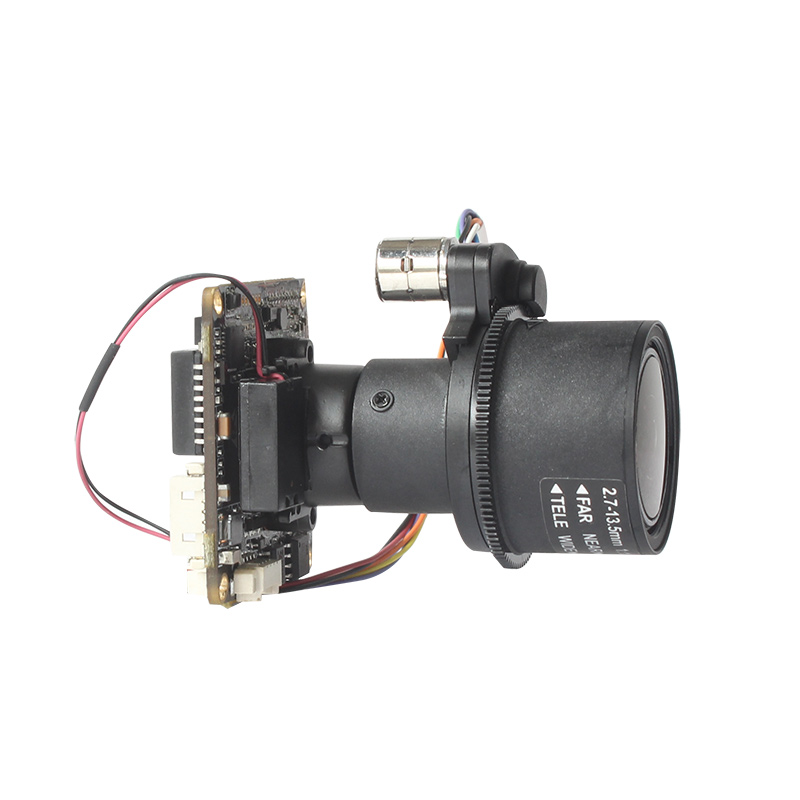

IP16XS323-AZ27135 2MP 1080P 1/2.9" IMX323 IP Camera module 2.7-13.5mm Auto zoom lens

IP16XS323-AZ27135 2MP 1080P 1/2.9" IMX323 IP Camera module 2.7-13.5mm Auto zoom lens

SKU: IP16XS323-AZ27135

Sensor:

Video Coding:

Hole Distance:

Resolution:

$51.25

Weight: 0.09 kg

Pixel Size:

Description

  • 1/2.9" IMX323 low illumination CMOS sensor

  • Adopt Hi3516CV300, Standard size:38mm*38mm

  • support Day&Night switch(optional IR-CUT) infrared sensor, Support LDR signal linkage, apply to common Box, Bullet, dome and etc housing

  • H.2654video codin,support dual stream, Max resolution:1920*1080, color 0.1Lux@F1.2 B&W 0.01 Lux@F1.2

  • Support onvif 2.4 protocol, Support compatible with most oversea and local platform software manager system

Model NoIP16XS323-AF3015(2.0MP)
Hardware
ChipsetHI3516CV300 1/2.9" CMOS IMX323
Min illuminationColor 0.1Lux@F1.2  B&W 0.01Lux@F1.2
SNR> 50db(AGC OFF)
WDRDWDR > 80db
Lens Type5X Optical auto zoom Lens  2.7-13.5mm
interface
Audio/ Talk input1CH Audio MIC input/ line input
Audio output1CH line output
Analog video outputsupport
Storage card interfaceNot support
IO interface1CH reset
USB interface1pcs USB interface，support TF card storage expansion(MAX128G)
Video coding
Coding formatH.265 Main Profile coding  H.264 Baseline，Main Profile，High Profile coding
MJPEG coding
Image ResolutionMain streaming1920*1080, 1-25(30)frame/s
1280*720, 1-25(30)frame/s
Sub-streaming704*576, 1-25(30)frame/s 640*480, 1-25(30)frame/s
640*352, 1-25(30)frame/s 320*240, 1-25(30)frame/s
video compression rate32Kbps-16Mbps able to continue adjusting, support CBR/VBR
Subtitles overlaysupport channel name, date time, streaming info overlay, overlay position able to adjust
Data transmission &amp storage
Data storagevideo, image files
Storage mechanismManual, auto(circulation, time, alarming switch volume,motion detection)
Alarm data transmissionFTP, E-mail,browser, manage software
Protocol supportTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF protocolStandard onvif 2.4protocol
Client browserSupport IE6.0 and above(embedded Web Server in device)browse by browser，support 8 users to access simultaneously(MAX)
Mobile clientSupport iPhone, iPad, Android
General Specification
Power supplyDC12V/POE(External connect POE module)
Device power2W(MAX)
Device dimension38(long) * 38(wide) *15(high)mm(without lens)
IR-CUT pitch of holes20mm
Device weight0.1Kg

Pin Definition

  • Single Board H.265 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2Video GND
    3CVBS Signal Out
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in
