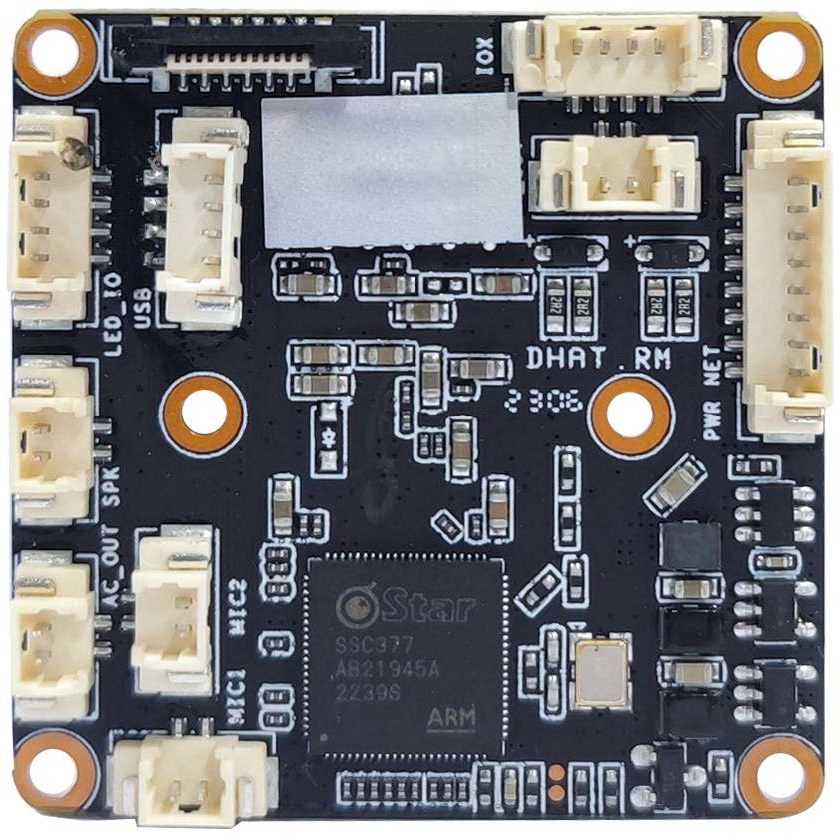

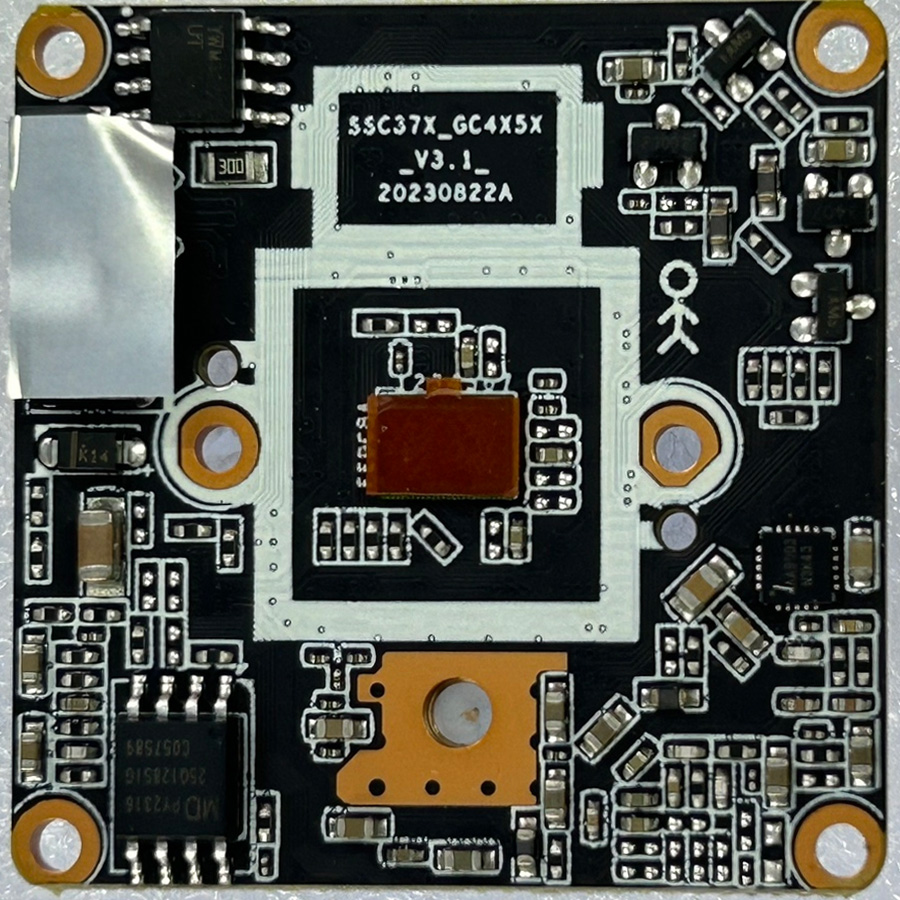

IP37C46D 1/3" GC4653 SSC337 Security CCTV HD Camera Module board 5MP H.264 H.265
Description
Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 25 frames per second active video (5MP)
2. H.264/H.265/H.265+ video compression standard, G.711 audio compression standard
3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4.
Two-way audio real-time transmission on the Internet, the video frame
rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bitrate 0.1~4Mbps continuously adjustable, frame rate (5-25) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ
model | IP37C46D |
SOC | SigmaStar SSC377 |
Image sensor | 1/3" 5MP |
Minimum illumination | Color 0.01 Lux |
Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR,
support WDR, support anti-face overexposing, support defog function,
H.264/H.265/H.265+ coding format, achieve ultra-low storage, code
rate/frame rate adjustable, manual adjustable shutter |
Image resolution | Main stream: 25FPS@(2592x1944, 2560x1440, 2304x1296, 1920x1080,1280x720) sub stream: D1 / VGA / 640*360 support CBR/VBR |
Audio processing | Audio linear input/output, G711 encoding, support two-way voice intercom |
Network interface | RJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design |
Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
storage | Not available |
IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program |
LED Board interface | Support active mode and passive mode, need compatible light board to work together |
IRCUT interface | Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
Conventional parameters | DC12V/POE (Optional), 1.7W Max, 38 mm(L) *38 mm(W) (without lens), 0.06kg |
Working temperature | -40~65 ℃ |

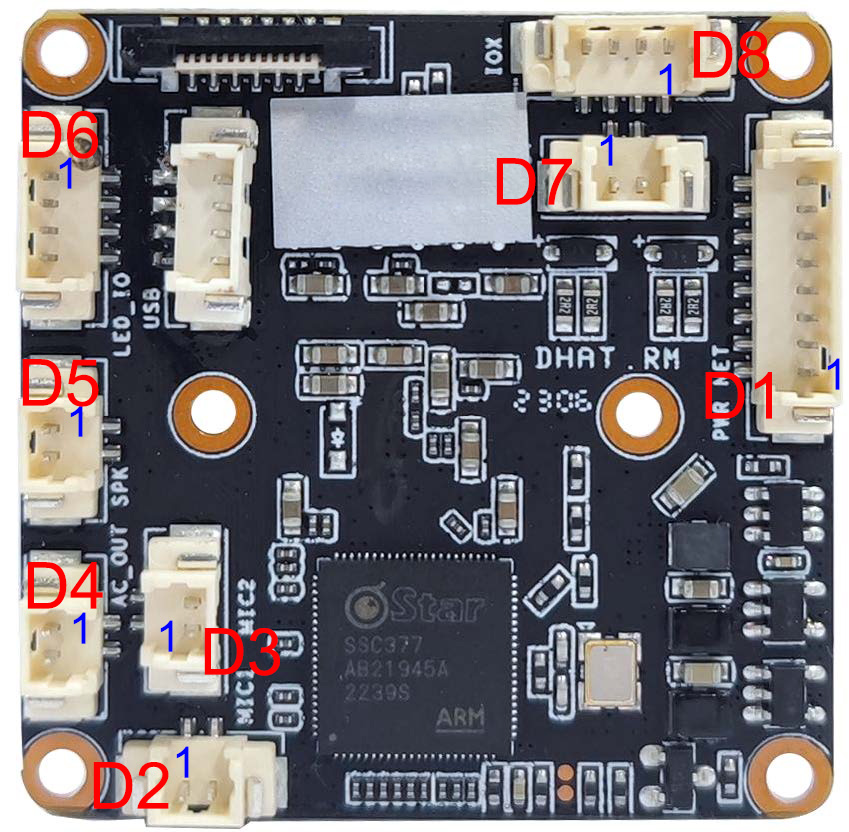

Port | Interface function | Serial | Pin definition | Stitch function |
D1 | 8 core network & Power interface | 1 | DC 12V+ | DC12V input |
2 | CND | Power GND | ||
3 | RJ45_6 | network differential signal RJ45_6 | ||
4 | RJ45_3 | network differential signal RJ45_3 | ||
5 | RJ45_2 | network differential signal RJ45_2 | ||
6 | RJ45_1 | network differential signal RJ45_1 | ||
7 | Reset | reset | ||
8 | LED+ | network status indicator | ||
D2 | 2 core main MIC | 1 | MIC- | microphone |
2 | MIC+ | |||
D3 | 2 core auxiliary MIC | 1 | MIC- | microphone |
2 | MIC+ | |||
D4 | Audio output | 1 | GND | Audio GND |
2 | AUDIO OUT | Audio output | ||
D5 | Speaker output | 1 | SPK- | Speaker output 8Ω 2W |
2 | SPK+ | |||
D6 | Lighting control | 1 | CDS IN | Hard photosensitive |
2 | GND | to | ||
3 | PWM1 | PWM for IR LED | ||
4 | PWM2 | PWM for White / Warm LED | ||
D7 | IR-CUT | 1 | IR-CUT1 | Dual filters switcher control |
2 | IR-CUT2 | Dual filters switcher control | ||
D8 | GPIO & UART | 1 | GND | GND |
2 | TX | UART TX | ||
3 | RX | UART RX | ||
4 | IO-OUT | SPK EN |
Please contact us for more info.
Pin Definition
Single Board H.265 Full function
No. Pin Defination Pitch Preview JP4 Power interface 1.25mm 1 DC12V 2 Video GND 3 CVBS Signal Out 4 GND J6 Network interface 1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connector light(Green) 6 Network status light(Yellow) J1 IR-cut interface 1.25mm 1 IR-CUT control signal 12V- 2 IR-CUT control signal 12V+ J3 LED Board interface 1.25mm 1 LED board 12V power out 2 GND 3 LED feedback signal (0.8V-12V) 4 Infrared light enable control J2 Function interface 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 Reset 5 GND 6 USB_DP 7 USB_DM 8 5V power out 9 alarm out I/O(3.3V Level signal) 10 Alarm in
