IP16DS327D 1/2.8" SONY Starlight WDR IMX327 + Hi3516D Starlight Security CCTV HD Camera Module board 2MP 1080P H.265

IP16DS327D 1/2.8" SONY Starlight WDR IMX327 + Hi3516D Starlight Security CCTV HD Camera Module board 2MP 1080P H.265

SKU: IP16DS327D

Sensor:

Video Coding:

Hole Distance:

Resolution:

$91.00

Weight: 0.05 kg

Pixel Size:

Description

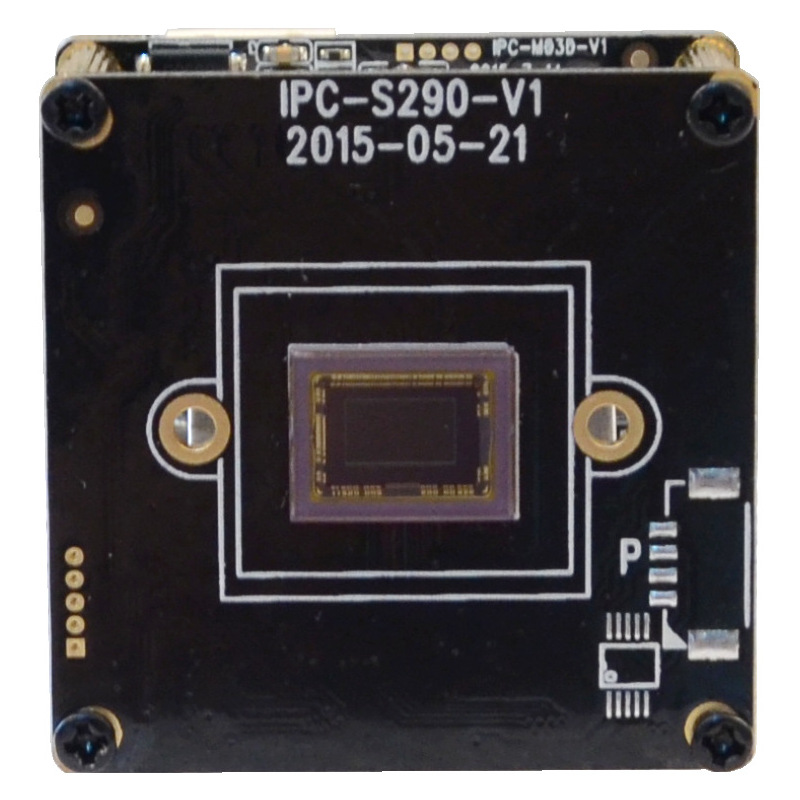

1/2.8" 2mp starvis IMX327 CMOS sensor, 38*38mm double board.

Feature Support:

Audio in/out, Alarm in, reset, RS485, CVBS, USB  Video coding:H.265/H.264, support dual stream, Max resolution:1920*1080, Color:0.001Lux@F1.2  WDR:&gt 120db   support back-light compensation during the day,  suit for back-light camera, such window and door.


Model

 IP16D327D (-AI -AZ -ET9)

Hardware

CPU

Hi3516D + 1/2.8" IMX327 COMS Sensor

Mini  illumination

Color: 0.001Lux@F1.2

S/N Ratio

≥50dB(AGC OFF)

WDR

D-WDR &gt 120db

Interface

Audio / talkback in

1ch MIC/line in

Audio output

1ch audio out

CVBS input

1ch CVBS output

Alarm in/out

1ch alarm in

IO function interface

1ch reset

Interface

1 ch RS485 interface

USB interface

1chUSB interface,support TF card slot (Max 128G) (Extension Board -ET9 Series optional)

Video  encoding

Encoding format

H264,Baseline/Main Profile/High Profile encoding H.265 Main Profile encoding
MJPEG

Image resolution

Main stream

1920*1080,1-25(30)fps/s
1280*720, 1-25(30)fps/s

Sub stream

704*576,1-25(30)fps/s      640*480,1-25(30)fps/s
640*352,1-25(30)fps/s      320*240,1-25(30)fps/s

Video compression

32Kbps-16Mbps,support CBR/VBR

OSD setting

support channel name, date and time, stream information superposition, stacking position adjustable

Data transmission and storage

Data storage

Video, Image file

Storage mechanism

Manual, auto(cycling, timing, alarm on/ off,motion detection)

Alarm data trans

FTP, E-mail, browser, management software

Protocol

TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

Wireless protocol

802.11b/g/n, support WEP, WPA, WPA2 encryption protocol

ONVIF

ONVIF2.4

Client browsing

Support up to IE6.0 (built-in Web Server) browser, max 8 users

Client APP

Support iPhone, iPad, Android

General

Power supply

DC12V 1A/POE(POE optional)

Power device

3W(MAX)

Device size

38(L) * 38(W) *20(H)mm(without lens)

IR-CUT hole site

22mm

Device weight

0.15kg



JP1 Power interface

1DC12V
2

Video GND

3

CVBS output

4GND

JE1 Network interface

1RJ45_1  (TX+)
2RJ45_2  (TX-)
3RJ45_3  (RX+)
4RJ45_6  (RX-)
5Network connection indicator light(green light)
6Network status indicator light (yellow light)

Sensor board  J1  IR-cut interface

1IR-CUT control signal 5V-
2IR-CUT control signal 5V+

Sensor board J2  DC auto light interface (Support automatic aperture model:-AI)

1drive-
2damp-
3drive+
4damp+

Sensor board J3  Power lens interface (Support Electric lens model:-AZ)

1Focus A-
2Focus A+
3Zoom A-
4Zoom A+
5Zoom B+
6Zoom B-
7Focus B-
8Focus B+

Sensor board  J4  No definition

J5  Infrared Light board interface

1Infrared Light board 12V power output
2GND
3LED feedback signal input(0.8V-12V)
4Infrared Light enable control

J6  function interface

1Audio in
2Audio GND
3Audio out
4GND
5Reset
6Alarm in 1, low level effective
7Alarm in 2 (reserve),low level effective
8Alarm out control GPO,3.3V level signal
9RS_485+
10RS_485-

JU1  USB interface

1GND
2USB_DP
3USB_DM
45Vpower out

J7 Expansion board

1USB_DP
2USB_DM
3System
4SDIO Work Clock
5SDIO  Data3
6SDIO  Data2
7SDIO  Data1
8SDIO  Data 0
9System
10SDIO Order
11SDIO Power enable control signal
12SDIO Card detection signal
13SDIO Pull-up resistor power out
14Alarm out control GPO
15System
16DC5V Power out


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out

Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP16DS327D
Resolution:
2MP 1080P
Sensor:
IMX327
