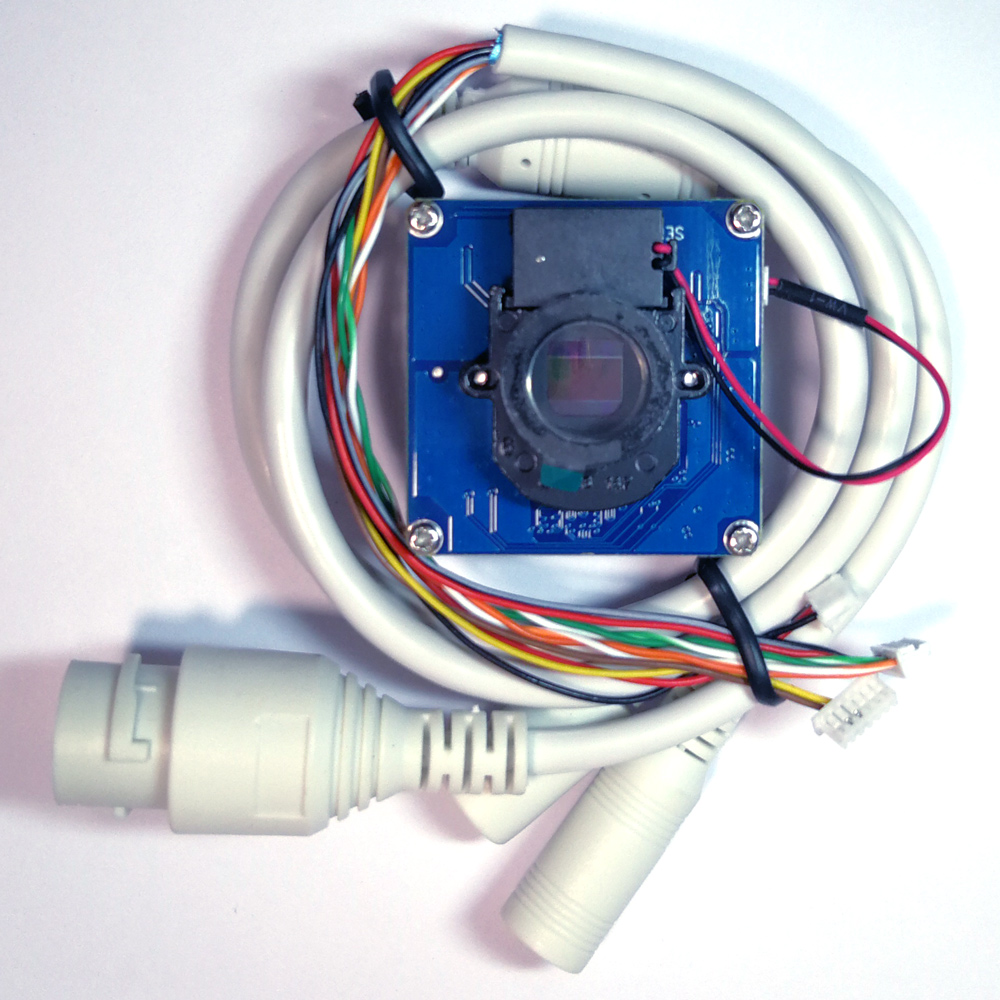

IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board

IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board

SKU: IP528S334D-M12

Sensor:

Video Coding:

Resolution:

$119.00

Weight: 0.05 kg

Pixel Size:

Description

General Functions:

  • Support intelligent coding control

  • Adopting the latest standard H.265+ video compression technology, high compression ratio, accurate and stable code stream control

  • Max resolution up to 8MP (3840x2160), and it can output 20fps real-time images at this resolution, and the image is smoother.

  • Support 3D digital noise reduction

  • Support Onvif protocol, GB28181 standard


Model

IP528S334D-M12

Camera

Image Sensor

1/1.8" 8MP 4K Sony IMX334 Progressive Scan CMOS

DSP Chip

NOVATEK NT98528 Dual ARM A9 SOC

Flash Memory
NAND 128MB
RAM
DDR3 512MB

Electrical Shutter

1/25s~1/10000s

Min Illumination

Color: 0.01Lux@F1.2;

Black & White: 0.001Lux@F1.2;

Day & Night
Active / Passive / Schedule

Video parameters

Video compression

H.265/H.264

H.265 coding

Stream1 Stream2

Video Bitrate

512 Kbps~16Mbps

Web browser Video Preview

IE, Firefox, Chrome, EDGE


Max resolution

3840 x 2160 @ 20fps

Stream1

2160P(3840x2160) / 960P(1280x960) / 720P(1280x720) / 960x576 / 960x540 / 800x600 / 960x480 / 720x576 / 704x576 / 720x480 / 640x480 / 640x360

Stream2

VGA(640x480) / 640x360

Video frame rate

50Hz: 25fps

60Hz: 30fps

OSD overlay

Support

Network parameters

Network protocol

IPv4, IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, SNMP, RTMP

Access standard

Support the latest ONVIF

Auxiliary Port

Network Port

1 RJ45 10M/100M Adaptive Ethernet port

Audio Port

1 Audio Input;
1 Audio Output;

General Port

1 Reset port, support one key reset

General parameters

Language
English 简体中文 繁體中文 Pусский 한국어

Power Supply

DC 12V

Power consumption

2W(MAX)

IR-CUT hole distance

22mm

Lens Mount
M12

Size

38(L) * 38(W) *30(H)mm (without Lens)


Default user: admin

Default password: admin

Default IP address: 192.168.12.100



Pin Definition

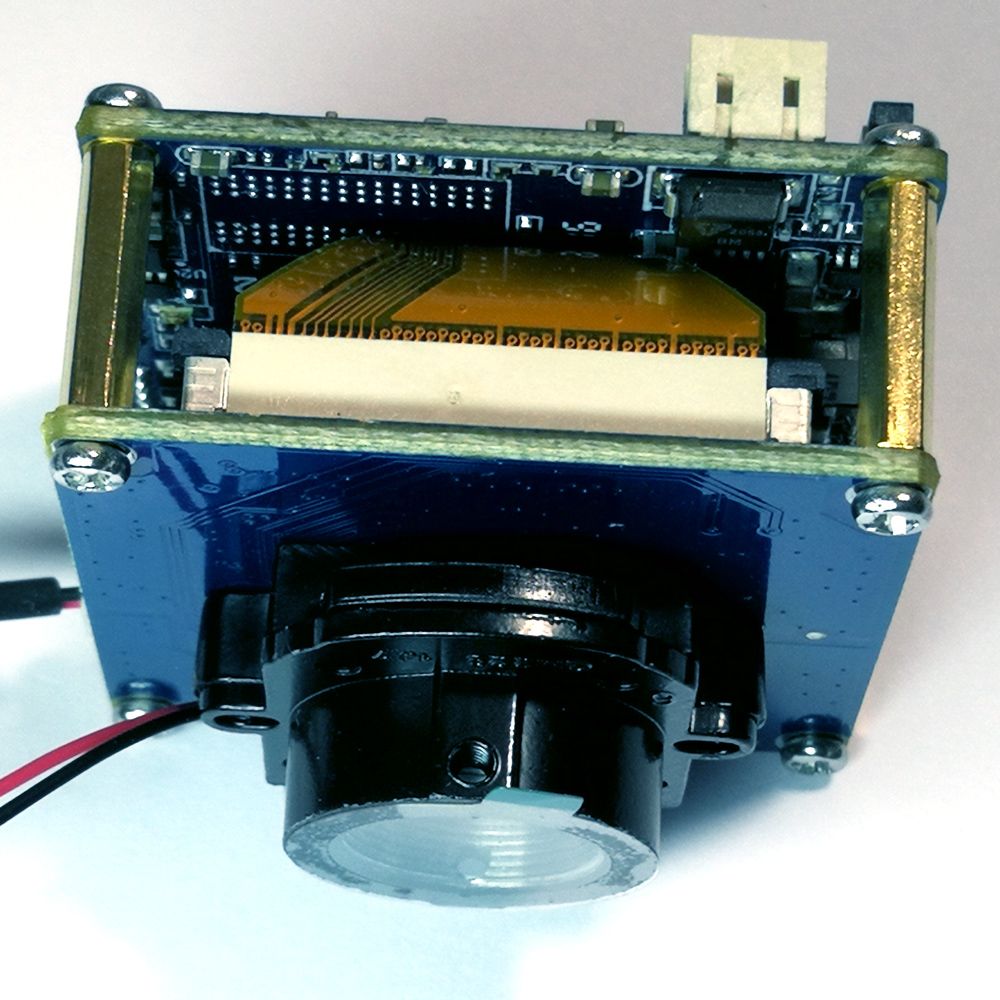

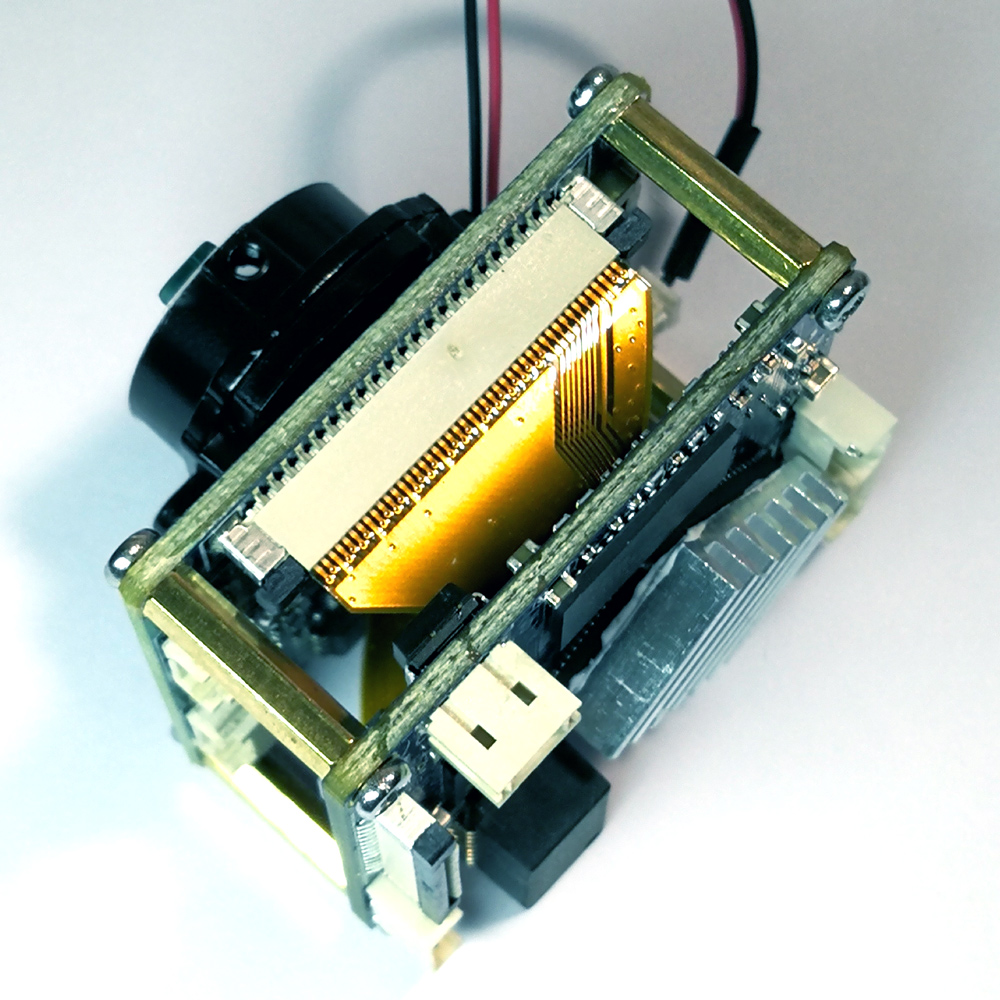

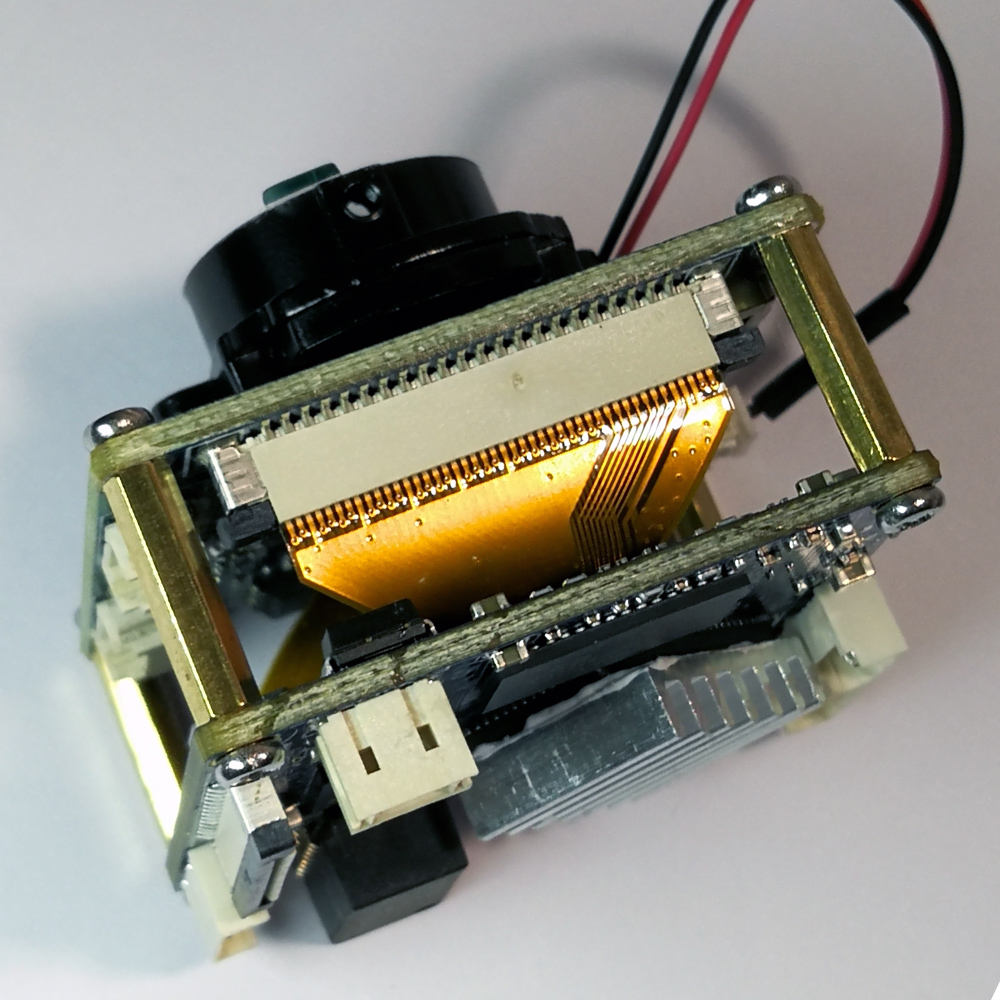

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)

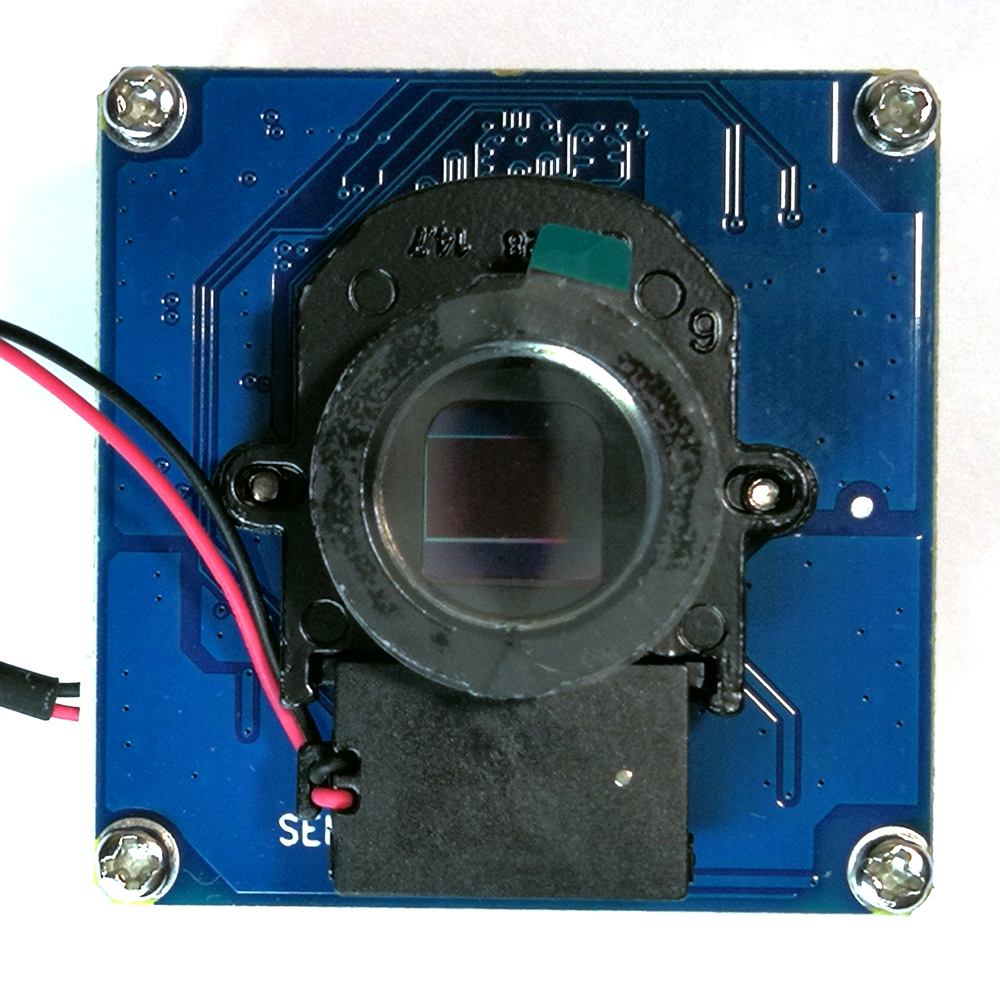

    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out

Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP528S334D-M12
Resolution:
8MP
Sensor:
IMX334
