1/2.8" 3MP 1080P WDR 120db Sony Starvis IMX123 Hi3516D H.265 IP Camera module (IMX123, 3MP, 22mm)

SKU: IP16DS123D

$92.00

Weight: 0.05 kg

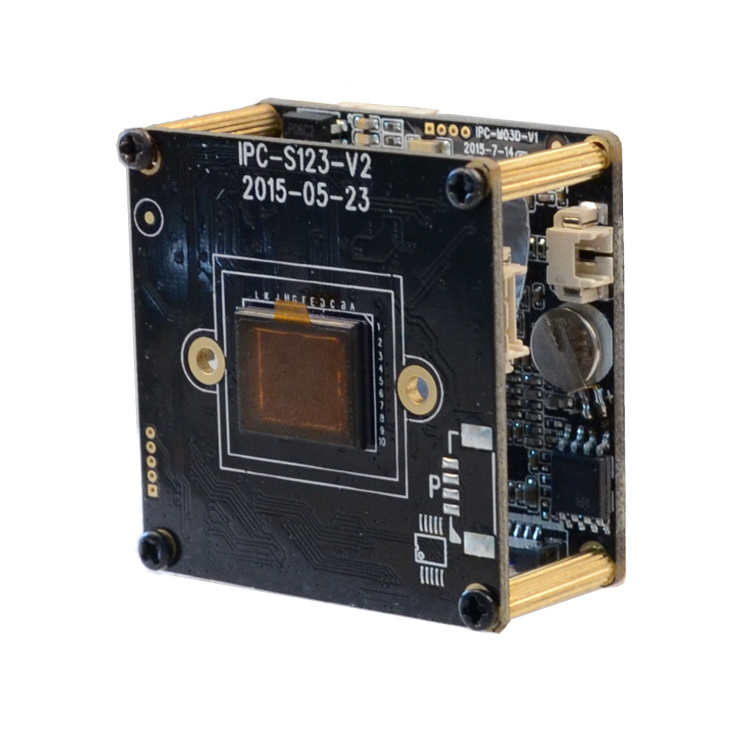

3.0 megapixel Starvis 2 Boards IP Camera Module, Hi3516D + SONY IMX123 CMOS
1/2.8" 3.0 Megapixels Progressive Scan Sony IMX124 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of 2048*1536, 0.001 Lux@F1.2 (color)
38X38mm 2 boards
RS485,Optional Motorized lens, IR -CUT (day/night), adapt Bullet, Dome
H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatiblemany NVR and platform management software.
Hisilicon Hi3516D
1/2.8"3.0 Megapixels Progressive Scan Sony IMX124 CMOS
Max 25/30fps@2.0 Megapixels (2048*1536)
H.264/H.265 &amp MJPEG dual-stream encoding
Super low-light, 0.001 Lux@F1.2 (color)
Privacy Mask, Motion Detection
Support Onvif 2.4 protocol
WDR＞80db

Model		IP16DS123-D26(-AI/-ET9)
Camera
Image Sensor		1/2.8" 3.0 megapixels Progressive Sony IMX123 CMOS
CPU		Hisilicon 3516D
Effective Pixels		2048(H)x1536(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto (1/25 ~ 1/10000s)
Min. Illumination		0. 001Lux/F1.2 (Color)
S/N Ratio		≥50db(AGC OFF)
Camera Features
Day/Night		Auto(ICR)/Color/B/W
WDR		&gt 120dB
White Balance		Auto
Gain Control		Auto
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Video
Compression		H.264/MJPEG/H.265
Resolution		20481536/1080P(19201080)/720P(1280720)/D1(704576)/VGA(640480)/QVGA(320240)
Frame Rate	Main Stream	20481536/19201080/720P(1280*720)(1 ~ 25/30fps)
	Sub Stream	D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate		32KB ~16Mbps, support VBR, CBR
Text Overlay		Channel, Date &amp Time, Bit Rate
Network
Data Storage		Video record, Picture format
Trigger		Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission		FTP, E-mail, Browser, CMS
Protocol		TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF		ONVIF 2.4
Max. User Access		8 users, IE, Google, Firefox
Smart Phone		Windows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio in		Support
Audio out		Support
BNC Video out		Support
RS422/RS485		Support
USB		Support (MT7601 WiFi/Max 128G TF Card)(-ET9 TF &amp Alarm extension board）
Alarm in		Support
Alarm out		N/A
IO Interface		Support
General
Power Supply		DC12V / PoE (802.3af)
Power Consumption		&lt 3W
Working Environment		-20°C~+55°C , Less than 90% RH
Dimensions		38 x 38 x 20mm
Weight		0.05kg

Dual Board

This product not include cable by default.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)		Depend on color definition of Lens	1.25mm
1	drive-
2	damp-
3	drive+
4	damp+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)		Depend on color definition of Lens	1.25mm
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface		Support powerless microphone and Line in	1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface		Support MT7601 /RT5370 USB wifi module. Support -ET TF card extension board.	1.25mm
1	GND
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out
