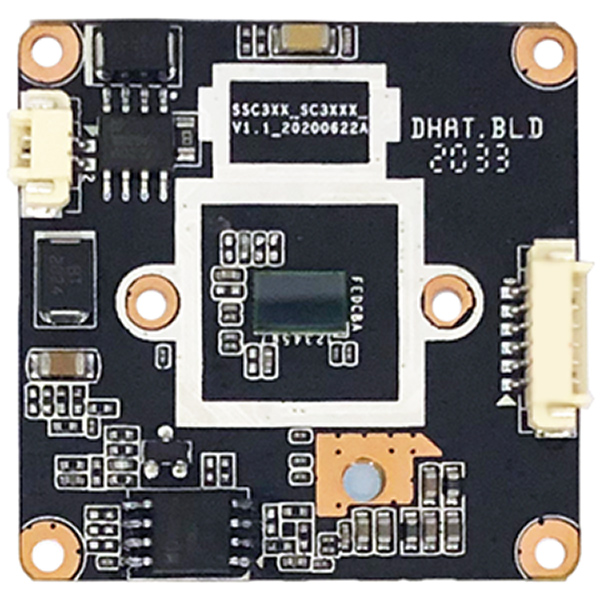

IP35C35 1/2.7" SC3335 SSC335 Security CCTV HD Camera Module board 4MP H.264 H.265

IP35C35 1/2.7" SC3335 SSC335 Security CCTV HD Camera Module board 4MP H.264 H.265

SKU: IP35C35

Video Coding:

Hole Distance:

Resolution:

$12.80

Weight: 0.05 kg

Description

Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (4MP)
2. H.264/H.265/H.265+ video compression standard, G.711 audio compression standard

3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ



modelIP35C35
SOC
SigmaStar SSC335
Image sensor1/2.7"  SC3335
Minimum illuminationColor 0.01 Lux
SNR>=38dB
Video processing

PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable, manual adjustable shutter

Image resolution

Main stream: 3MP@25fps, 1080P/720P/D1@30fps

sub stream: D1 / VGA / 640*360 / CIF @30fps

support CBR/VBR

Audio processingAudio linear input/output, G711u/G711A encoding, support two-way voice intercom
Network interfaceRJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection
Protocol supportSupport HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storageNot available
IO interfaceSupports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interfaceSupport active mode and passive mode, need compatible light board to work together
IRCUT interfaceIntegrated IRCUT filters switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions

IE6.0 and above (device embedded Web Server) browser

mobile detection and OSD adjustable
JPEG screenshots

P2P cloud services (danale)

IP filters
provide the SDK (Windows, Android, Linux) development kit

Active infrared function
Active warm light function

automatic zoom (optional)

PTZ linkage

support voice alarm linkage and customizable alarm sound

Conventional parametersDC12V/POE (Optional), 38 (L) *38 (W) (without lens), 0.06kg
Working temperature-30~70 ℃



Please contact us for more info.


Pin Definition

  • Single Board H.265 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2Video GND
    3CVBS Signal Out
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in


Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP35C35
Resolution:
3MP
