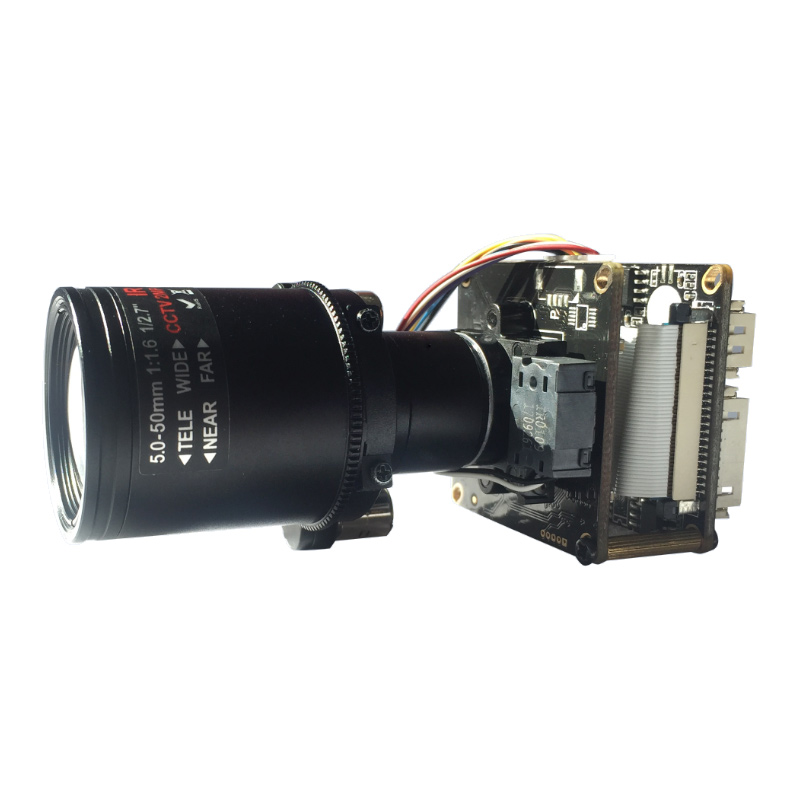

IP16DS124D-AZ0550 1/2.8" 3MP Sony Starlight IMX124 + HI3516D 5X 5-50mm Auto Zoom CCTV Security HD CMOS Camera Module (3MP, IMX124)

Product features:

• Use latest standard H.265 video compression technology,High compression ratio,accurate and stable stream control ,support dual stream

• Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor

• 10X optical zoom, focus faster, zoom process with clear throughout

• Built-in automatic night and day double filter switching mechanism, with manual or automatic color

• Support dual stream

• Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm

• Support intelligent coding control

• Max supports 4 ROI regions of interest

• Support rich network protocol

• Support D-WDR, 3D noise reduction

• Support ONVIF protocol, GBT28181




  Model	IP16DS124D-AZ0550
  Camera
  Image Sensor	1/2.8" 3MP Progressive Sony IMX124 CMOS
  CPU	Hisilicon 3516D
  Effective Pixels	2048(H)x1536(V)
  Scanning System	Progressive
  Electronic Shutter Speed	Auto (1/25 ~ 1/10000s)   automatic regulation
  Min. Illumination	0. 001Lux/F1.2 (Color)
  S/N Ratio	≥50db(AGC OFF)
  Camera Features
  Day/Night	Auto(ICR)/Color/B/W
  WDR	>80dB
  White Balance	Auto
  Gain Control	Auto
  Noise Reduction	3D
  Lens interface	5 times optical zoom lens,5-50mm 4MP Automatic zoom lens
  Privacy Masking	Up to 4 areas
  Video
  Compression	H.264/MJPEG/H.265
  Main Stream	2048*1536/1920*1080 (1 ~ 25/30fps)
  Sub Stream	D1(704*576)/VGA(640*480)/QVGA(320*240)(1 ~ 25/30fps)
  Bit Rate	32KB ~16Mbps, support VBR, CBR
  Imaging Setting	Adjustable brightness, contrast, saturation, sharpness, white balance AWB(automatic white balance), AGC(automatic gain), AE(automatic exposure control), AIC(automatic aperture correction)   support privacy area occlusion OSD superposition image rotation: normal 90/270°automatic, manual or automatic color switching
  Text Overlay	Channel, Date &amp  Time, Bit Rate
  Network
  Data Storage	Video record, Picture format
  Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
  Alarm data transmission	FTP, E-mail, Browser, CMS
  Protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
  ONVIF	ONVIF 2.4
  Max. User Access	8 users, IE, Google, Firefox
  Smart Phone	Windows Mobile, iPhone, iPad, Android
  Auxiliary Interface
  Audio in	Support
  Audio out	Support
  BNC Video out	Support
  RS422/RS485	Support
  USB	Support (32G USB flash)
  Alarm in	Support
  Alarm out	N/A
  IO Interface	Support
  Smart function
  Smart coding	Supports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas
  Smart detection	Support intelligent occlusion detection and intelligent defocus detection
  Smart control	Support intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction
  General
  Power Supply	DC12V / PoE (Optional 802.3af)
  Power Consumption	&lt  3W
  Working Environment	-20°C~+55°C , Less than 90% RH
  Dimensions	38 x 38mm
  Weight	0.15kg




  JP1 Power Supply Connector
  1	DC12V
  2	CVBS GND
  3	CVBS Signal Out
  4	GND
  JE1 Network Connector
  1	RJ45_1
  2	RJ45_2
  3	RJ45_3
  4	RJ45_6
  5	Network Connected Light (Green light)
  6	Network Status Light (Yellow light)
  J1 IR-CUT Connector
  1	IR-CUT Control Signal 5V
  2	IR-CUT Control Signal 5V
  J2 DC Auto-iris Connector
  1	Drive-
  2	Damp-
  3	Damp+
  4	Drive+
  J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6)
  1	Focus A-
  2	Focus A+
  3	Zoom A-
  4	Zoom A+
  5	Zoom B+
  6	Zoom B-
  7	Focus B-
  8	Focus B+
  J4 P-Lris Connector
  1	IRIS A-
  2	IRIS B+
  3	IRIS A+
  4	IRIS B-
  J5 IR Light Board Connector
  1	IR Light Board Power Supply (12V)
  2	GND
  3	IR Feedback Signal Input (0.8V-12V)
  4	IC PWM Control
  JVO1 BNC Video out
  1	BNC Video out
  2	GND
  J6 Functions Connector
  1	Audio In (MIC/ Line )
  2	GND (Audio)
  3	Audio Out
  4	GND
  5	Reset
  6	Alarm In
  7	NULL
  8	NULL
  9	RS_485+
  10	RS_485-
  JU1
  1	GND
  2	USB_DP
  3	USB_DM
  4	5V Power Supply
