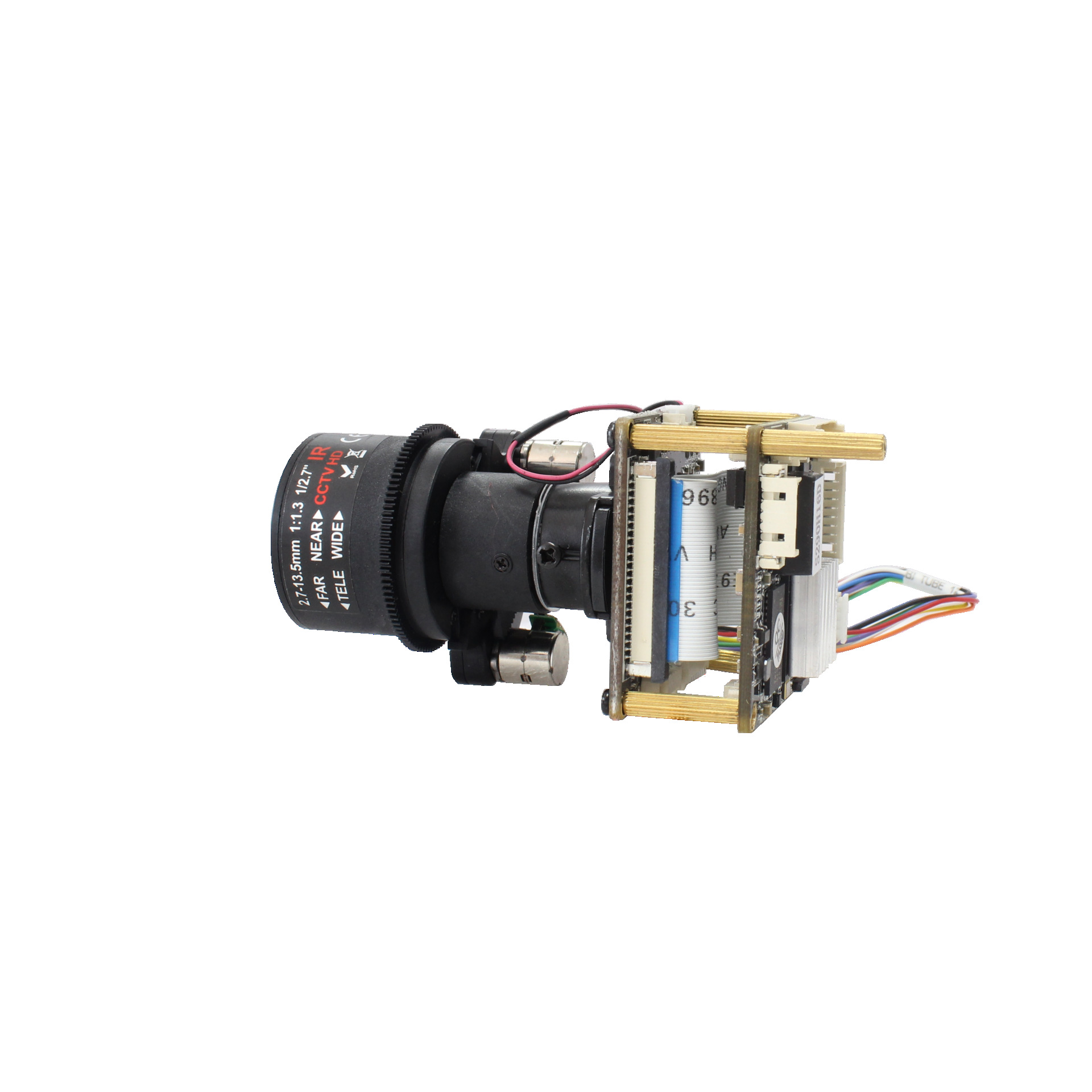

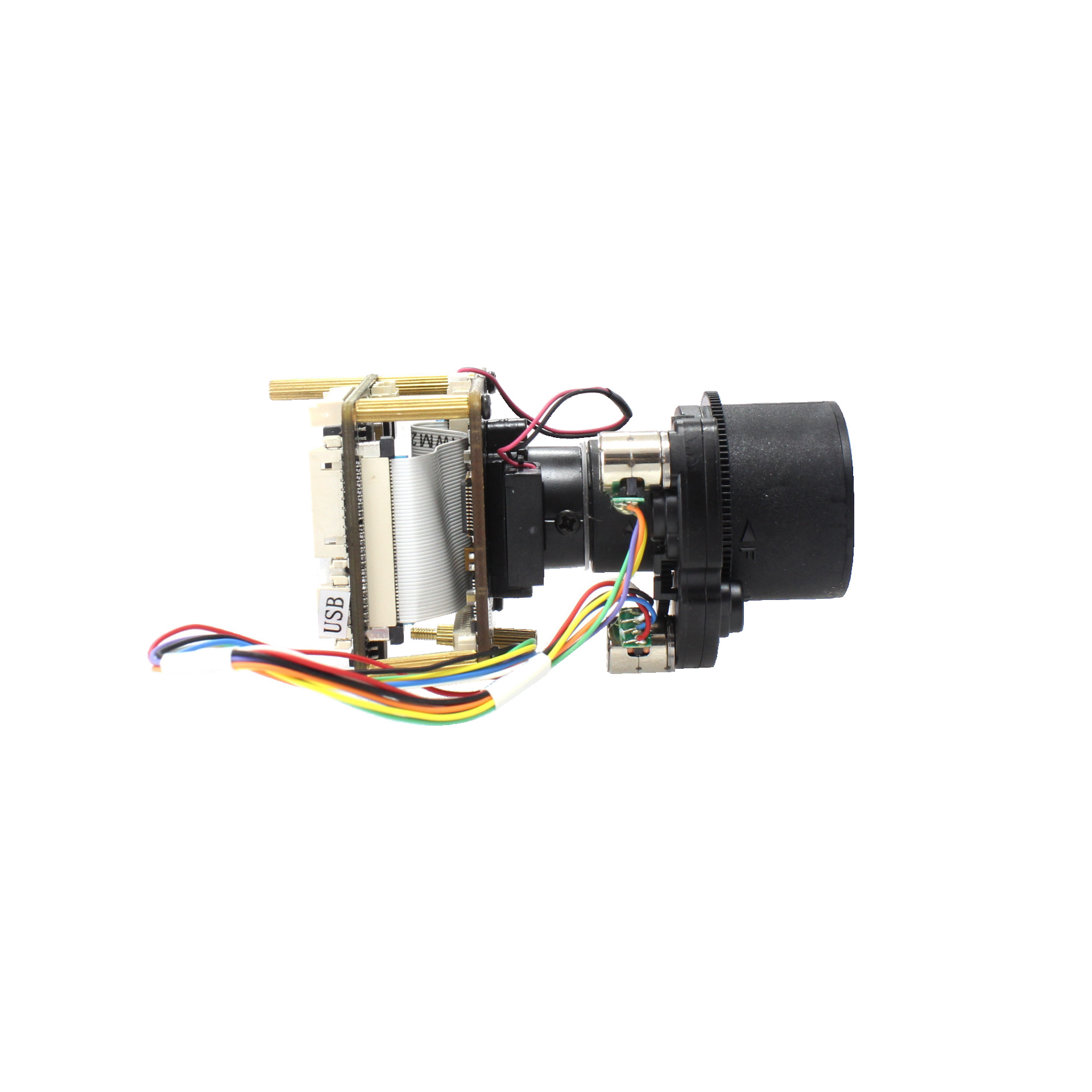

IP16AS290D-AZ27135 1/2.8" 1080P 30fps starlight IP camera board 2.7-13.5mm auto zoom lens

IP16AS290D-AZ27135 1/2.8" 1080P 30fps starlight IP camera board 2.7-13.5mm auto zoom lens

SKU: IP16AS290D-AZ27135

Sensor:

Video Coding:

Hole Distance:

Resolution:

$103.00

Weight: 0.05 kg

Pixel Size:

Description

  • 2MP WDR 2 Boards IP Camera Module, Hi3516A + SONY Starvis IMX290 CMOS

  • 1/2.8" 1080P Progressive Scan Sony IMX290 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 1920*1080, 0.001 Lux@F1.2 (color)

  • 38X38mm 2 boards

  • RS485, 2.7-13.5mm Motorized Zoom lens, IR - CUT (day/night), adapt Bullet, Dome

  • H.264 or H.265 video coding, double stream, ONVIF2.4, be compatible many NVR and platform management software.

  • Hisilicon Hi3516A

  • 1/2.8" 2.0 Megapixels Progressive Scan Sony IMX290 CMOS

  • Max 50/60fps@1080P (1920*1080)

  • H.264/H.265 & MJPEG Three-stream encoding

  • WDR > 120dB

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol

  • BLC

Model

IP16A290D-AZ27135

Camera

Image Sensor

1/2.8" 2MP Progressive Scan Sony Starvis IMX290 CMOS

CPU

Hisilicon 3516A

Effective Pixels

1920(H)*1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto (1/25 ~ 1/10000s)

Min. Illumination

 Color: 0. 001Lux@F1.2

S/N Ratio

≥50db(AGC OFF)

Camera Features

Day/Night

Auto(ICR)/Color/B/W

WDR

>120dB

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens Type5X Optical zoom lens, 2.7-13.5mm 2MP
Video

Compression

H.264/MJPEG/H.265

Resolution

1080P(1920*1080) / 720P(1280*720) / D1(704*576) / VGA(640*480) / QVGA(320*240)

Main Stream

1920*1080(1 ~ 25/30fps), 1280*720(1 ~ 25/30fps)

Sub Stream

D1/VGA/QVGA(1 ~ 25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Text Overlay

Channel, Date & Time, Bit Rate

Network

Data Storage

Video record, Picture format

Trigger

Manual, Automatic(motion detection, alarm, schedule, cycle )

Alarm data transmission

FTP, E-mail, Browser, CMS

Protocol

TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

ONVIF

ONVIF 2.4

Max. User Access

8 users, IE, Google, Firefox

Smart Phone

Windows Mobile, iPhone, iPad, Android

Auxiliary Interface

Audio in

Support

Audio out

Support

BNC Video out

Support

RS422/RS485

Support

USB

Support (Optional MT7601 WiFi/128G USB flash)

Alarm in

Support

Alarm out

N/A

IO Interface

Support

General

Power Supply

DC12V / PoE (802.3af)

Power Consumption

< 3W

Working Environment

-20°C~+55°C , Less than 90% RH

Dimensions

38 x 38 x 20mm

Weight

0.15kg

Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
