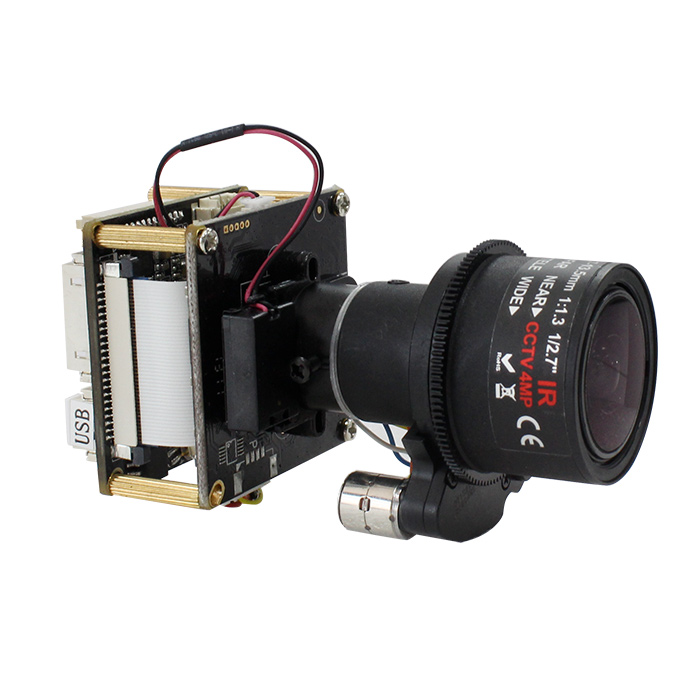

IP16DS124D-AZ27135 Sony IMX124 HI3516D IP camera board 2.7-13.5mm Auto Zoom CCTV Security HD CMOS Camera Module

IP16DS124D-AZ27135 Sony IMX124 HI3516D IP camera board 2.7-13.5mm Auto Zoom CCTV Security HD CMOS Camera Module

SKU: IP16DS124D-AZ27135

Sensor:

Video Coding:

Hole Distance:

Resolution:

$117.80

Weight: 0.12 kg

Description

Product features:
· Use latest standard H.265 video compression technology,High compression ratio,accurate and stable stream control ,support dual stream
·Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor
·5X optical zoom, focus faster, zoom process with clear throughout
·Built-in automatic night and day double filter switching mechanism, with manual or automatic color
·Support dual stream
·Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm
·Support intelligent coding control
·Max supports 4 ROI regions of interest
·Support rich network protocol
·Support D-WDR, 3D noise reduction
·Support ONVIF protocol, GBT28181

ModelIP16DS124D-AZ27135
Camera
Image Sensor1/2.8" 3MP Progressive Sony IMX124 CMOS
CPUHisilicon 3516D
Effective Pixels2048(H)x1536(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)   automatic regulation
Min. Illumination0. 001Lux/F1.2 (Color)
S/N Ratio≥50db(AGC OFF)
Camera Features
Day/NightAuto(ICR)/Color/B/W
WDR&gt 80dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D
Lens interface5 times optical zoom lens,2.7-13.5mm 4MP Automatic zoom lens
Privacy MaskingUp to 4 areas
Video
CompressionH.264/MJPEG/H.265
Main Stream2048*1536/1920*1080 (1 ~ 25/30fps)
Sub StreamD1(704*576)/VGA(640*480)/QVGA(320*240)(1 ~ 25/30fps)
Bit Rate32KB ~16Mbps, support VBR, CBR
Imaging SettingAdjustable brightness, contrast, saturation, sharpness, white balance
AWB(automatic white balance), AGC(automatic gain), AE(automatic exposure control), AIC(automatic aperture correction)
support privacy area occlusion OSD superposition
image rotation: normal 90/270°automatic, manual or automatic color switching
Text OverlayChannel, Date &amp  Time, Bit Rate
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF 2.4
Max. User Access8 users, IE, Google, Firefox
Smart PhoneWindows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio inSupport
Audio outSupport
BNC Video outSupport
RS422/RS485Support
USBSupport (32G USB flash)
Alarm inSupport
Alarm outN/A
IO InterfaceSupport
Smart function
Smart codingSupports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas
Smart detectionSupport intelligent occlusion detection and intelligent defocus detection
Smart controlSupport intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction
General
Power SupplyDC12V / PoE (Optional 802.3af)
Power Consumption&lt  3W
Working Environment-20°C~+55°C , Less than 90% RH
Dimensions38 x 38mm
Weight0.15kg


JP1 Power Supply Connector
1DC12V
2CVBS GND
3CVBS Signal Out
4GND
JE1 Network Connector
1RJ45_1
2RJ45_2
3RJ45_3
4RJ45_6
5Network Connected Light (Green light)
6Network Status Light (Yellow light)
J1 IR-CUT Connector
1IR-CUT Control Signal 5V
2IR-CUT Control Signal 5V
J2 DC Auto-iris Connector
1Drive-
2Damp-
3Damp+
4Drive+
J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6)
1Focus A-
2Focus A+
3Zoom A-
4Zoom A+
5Zoom B+
6Zoom B-
7Focus B-
8Focus B+
J4 P-Lris Connector
1IRIS A-
2IRIS B+
3IRIS A+
4IRIS B-
J5 IR Light Board Connector
1IR Light Board Power Supply (12V)
2GND
3IR Feedback Signal Input (0.8V-12V)
4IC PWM Control
JVO1 BNC Video out
1BNC Video out
2GND
J6 Functions Connector
1Audio In (MIC/ Line )
2GND (Audio)
3Audio Out
4GND
5Reset
6Alarm In
7NULL
8NULL
9RS_485+
10RS_485-
JU1
1GND
2USB_DP
3USB_DM
45V Power Supply


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
