IP16VS323-AZ0622

SKU: IP16VS323-AZ0622

$54.05

Weight: 0.09 kg

H.264 video compressing, high compression, stream control accurate, stable, support dual stream
1/2.9" SONY IMX323 CMOS Sensor, 2MP
4X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods
support dual stream
Support network disconnect, motion detection, Video masking, intelligent out off focus alarm
Smart coding
Up to 4 ROI area,
abundant network protocol
D-WDR, 3D noise reduction
ONVIF2.4, GBT28181

Model	IP16VS323-AZ0622
IP camera
Image sensor	1/2.9 inch 2MP Sony IMX323 CMOS
CPU	Hi3516CV200
Effective pixels	1920(H)x 1080(V)
Scan system	progressive
Electronic shutter	1/25s ~ 1/10000s
Min illuminator	Color:0.05Lux@F1.2, Black &amp white:0.01 Lux@F1.2
S/N Ratio	≥50dB(AGC OFF)
IR Cut mode	ICR Switch
WDR	&gt 80dB D-WDR
Noise reduction	&gt 3D noise
Video masking	Up to 4 area

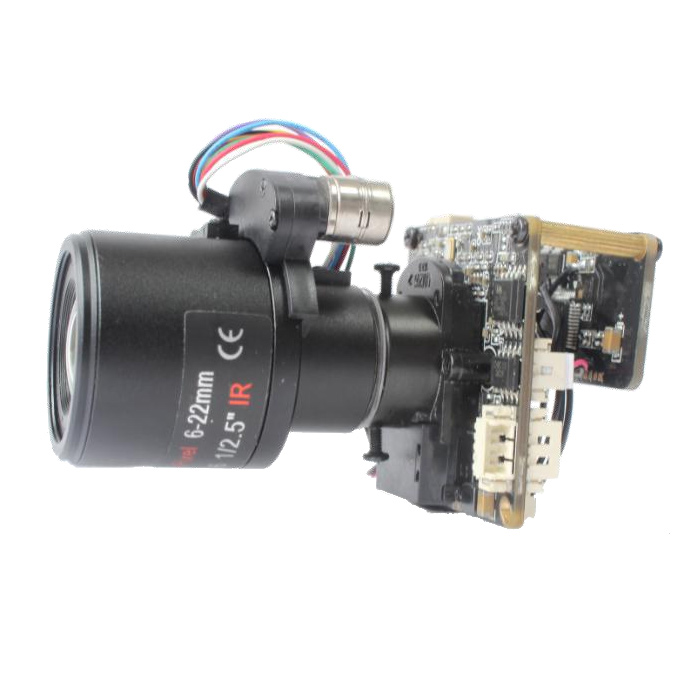

Lens type	3MP automatic zoom lens, 6-22mm
Video
Coding	H.265/ H.264/ MJPEG
Main stream	1080P(1920x1080), 720P(1280*720)
Sub stream	D1(704x576)/ VGA(640*480)/ QVGA(320x240)
Video frame	1 ~ 25fps (50HZ)/ 1 ~ 30fps (60HZ)
Video bit ratio	32KB ~ 16Mbps
Picture setting	brightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE are adjustable, support privacy masking OSD Image eversion90°/ 270°, ICR Switch auto or manual are optional
Smart function
Smart coding	Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detection	Support intelligent masking detection ,intelligent out off focus detection
Smart control	Support smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface	10M/100M
Network protocol	IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard	ONVIF/GB28181
Client user	Up to 8 user at same time
Smart phone	iphone, ipap, Android
General parameter
Power	DC 12V
Consumption	2W(MAX)
Temperature, humidity	-10°C~55°C, 20-80%RH
Size	38x38x68mm

Single Board H.264 Full function

No.	Pin Defination	Pitch	Preview
JP4 Power interface		1.25mm
1	DC12V
2	NC
3	NC
4	GND
J6 Network interface		1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connector light(Green)
6	Network status light(Yellow)
J1 IR-cut interface		1.25mm
1	IR-CUT control signal 12V-
2	IR-CUT control signal 12V+
J3 LED Board interface		1.25mm
1	LED board 12V power out
2	GND
3	LED feedback signal (0.8V-12V)
4	Infrared light enable control
J2 Function interface		1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	Reset
5	GND
6	USB_DP
7	USB_DM
8	5V power out
9	alarm out I/O(3.3V Level signal)
10	Alarm in
