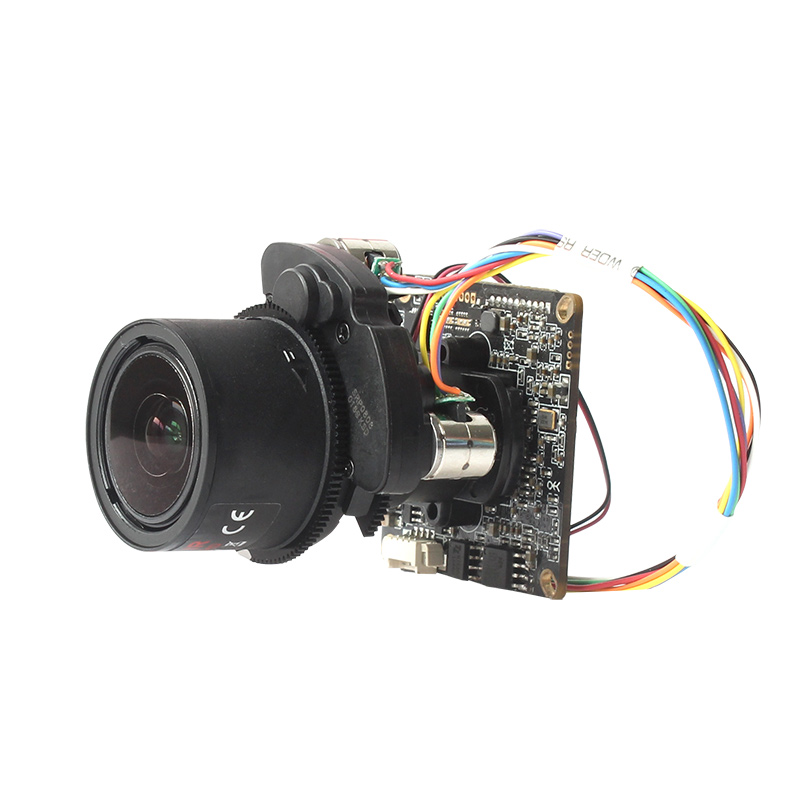

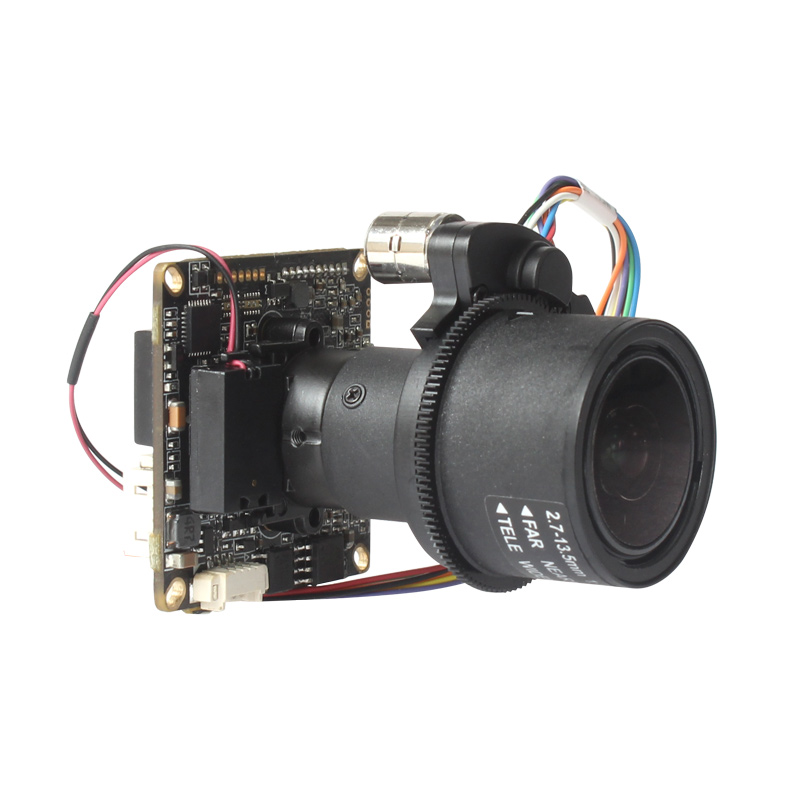

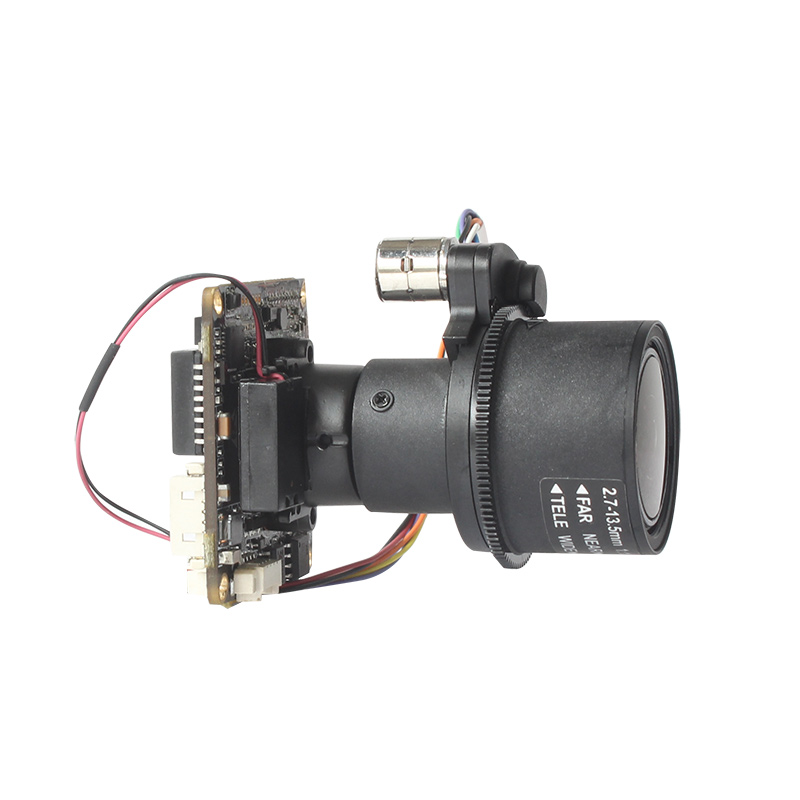

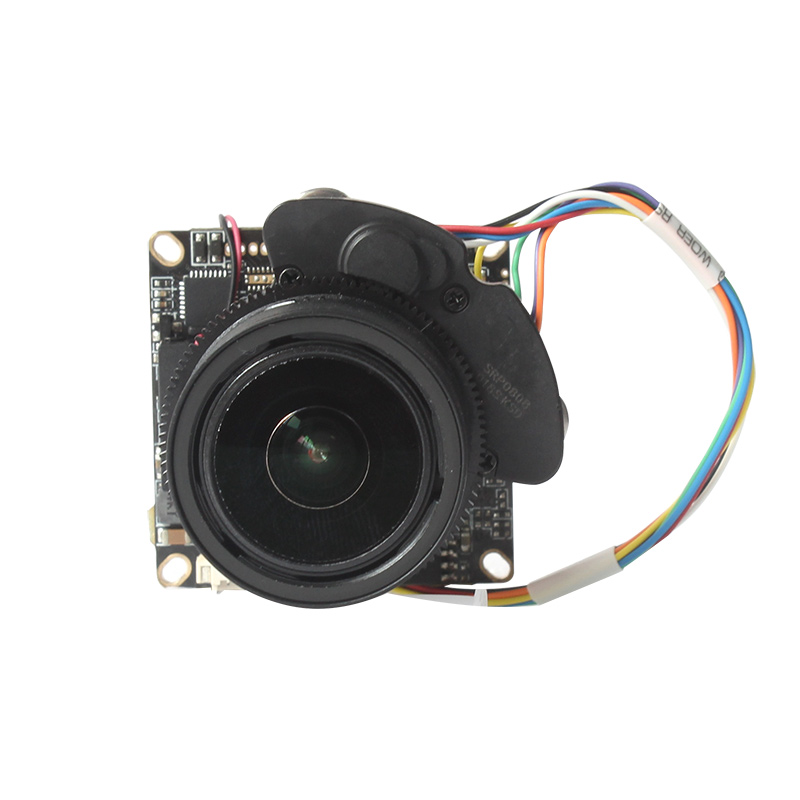

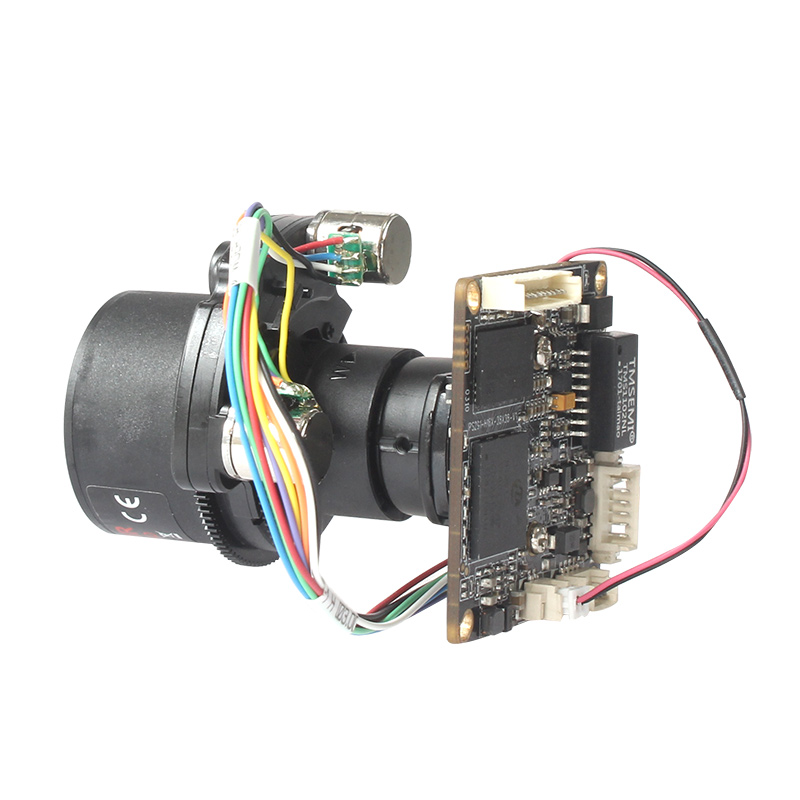

IP16XS327-AZ27135 1/2.8" 2MP 1080P Sony IMX327 + HI3516CV300 2.7-13.5mm Auto Zoom Starlight Security CCTV HD Camera Module board

IP16XS327-AZ27135 1/2.8" 2MP 1080P Sony IMX327 + HI3516CV300 2.7-13.5mm Auto Zoom Starlight Security CCTV HD Camera Module board

SKU: IP16XS327-AZ27135

Sensor:

Aperture:

Video Coding:

Hole Distance:

Resolution:

$55.60

Weight: 0.05 kg

Pixel Size:

Description

  • H.265/H.264 video compressing, high compression, stream control accurate, stable, support dual stream

  • 1/2.8" SONY Starvis IMX291 CMOS Sensor, 2MP

  • 5X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods

  • support dual stream

  • Support network disconnect, motion detection, Video masking, intelligent out off focus alarm

  • Smart coding

  • Up to 4 ROI area,

  • abundant network protocol

  • D-WDR, 3D noise reduction

  • ONVIF2.4, GBT28181

  • Support CVBS output

ModelIP16XS327-AZ27135
IP camera

Image sensor

1/2.8 inch  2MP Sony Starvis IMX327 CMOS

CPU

Hi3516CV300

Effective pixels

1920(H)x 1080(V)

Scan system

progressive

Electronic shutter

1/25s~1/10000s

Min illuminator

Color:0.001Lux@F1.2

S/N Ratio

≥50dB(AGC OFF)

IR Cut mode

ICR Switch

WDR

> 80dB D-WDR

Noise reduction

> 3D noise

Video masking

Up to 4 area

Lens type

2MP 5X automatic zoom lens, 2.7-13.5mm

Video

Coding

H.265/H.264/MJPEG

Main stream

1080P(1920x1080),720P(1280*720)

Sub stream

D1(704x576)/VGA(640*480)/QVGA(320x240)

Video frame

1 ~ 25fps (50HZ)  1 ~ 30fps (60HZ)

Video bit ratio

32KB ~ 16Mbps, Support CBR/VBR

Picture setting

brightness, Contrast, saturation, sharpness, BLC  AWB, AGC, AE areadjustable, support privacy masking  OSD  Image eversion90°/ 270°,ICR Switch auto or manual are optional

Smart function

Smart coding

Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area

Smart detection

Support intelligent masking detection ,intelligent out off focus detection

Smart control

Support smart control alarm open, alarm shut, fault clear, smart noise reduction

Network

Network interface

10M/100M

Network protocol

IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

Access standard

ONVIF/GB28181

Client user

Up to 8 user at same time

Smart phone

iphone, ipap, Android

General parameter

Power

DC 12V

Consumption

2W(MAX)

Temperature, humidity

-10°C~55°C, 20-80%RH (Non coagulation)


Size

38x38mm

Pin Definition

  • Single Board H.265 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2Video GND
    3CVBS Signal Out
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in
