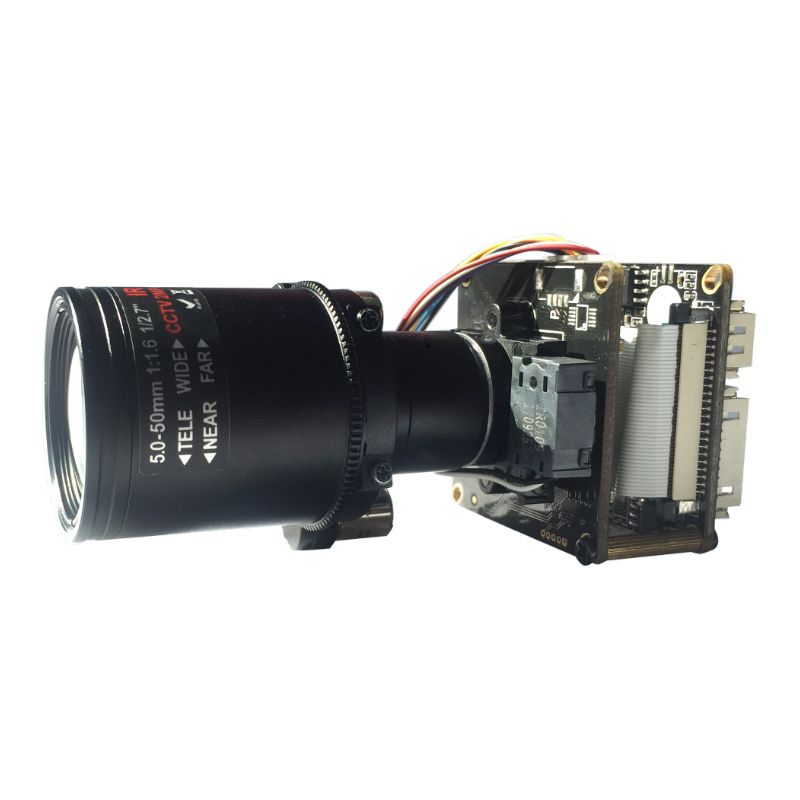

IP16AV510D-AZ0550 1/2.7" 5MP 1080P OV OS05A10 + HI3516A H.265 IP Camera Module board 5-50mm Auto Zoom Lens (5MP, OS05A10)

IP16AV510D-AZ0550 1/2.7" 5MP 1080P OV OS05A10 + HI3516A H.265 IP Camera Module board 5-50mm Auto Zoom Lens (5MP, OS05A10)

SKU: IP16AV510D-AZ0550

Sensor:

Video Coding:

Hole Distance:

Resolution:

$142.78

Weight: 0.15 kg

Description

  • H.265 video compressing, high compression, stream control accurate, stable, support dual stream 1/3 inch OmniVison CMOS sensor, 4MP 10X Optics zoom, auto zoom function

  • Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods

  • support dual stream

  • Support network disconnect, motion detection, Video masking, intelligent out off focus alarm

  • Smart coding

  • Up to 4 ROI area,

  • 5.0MP/2592*1944@25(30)FPS D-WDR, 3D noise reduction

  • ONVIF2.4, GBT28181


Note: OV5658 Version is discontinued. Please select 1/2.7" OS05A10 Version for instead.


ModelIP16AV510D-AZ0550
IP Camera
Image sensor1/2.7 inch 5MP OS05A10
CPUHISILICON Hi3516A
Effective pixels2592(H)x 1944(V)
Scan systemprogressive
Electronic shutter1/25s~1/10000s
Min illuminatorColor: 0.05Lux@F1.2, black and white:0.08Lux@F1.2
S/N Ratio≥50dB(AGC OFF)
IR CUT modelICR switch
WDR> 80dB D-WDR
S/N Ratio3D noise reduction
Privacy maskingUp to 4 area
Lens type10X optical automatic zoom lens, 5-50mm
Video parameter
Video codingH.265/H264/MJPEG
Main stream2592*1944/2048*1536/1080P(1920x1080)
Sub streamD1(704x576)/VGA(640*480)/QVGA(320x240)
Video frame1 ~ 25fps (50HZ) 1 ~ 30fps (60HZ)
Video bit rate32KB ~ 16Mbps
Picture settingbrightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE areadjustable, support privacy masking OSD Image eversion90°/ 270°, ICR Switch auto or manual are optional
Smart function
Smart codingSupport low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detectionSupport intelligent masking detection , intelligent out off focus detection
Smart controlSupport smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface10M/100M
Network protocolIPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standardONVIF/GB28181
Client userUp to 8 user at same time
Smart phoneiphone, ipap, Android
General parameter
PowerDC 12V
consumption2W(MAX)
Temperature, humidity-10°C~55°C, 20-80%RH
Size38x38x70mm

Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
