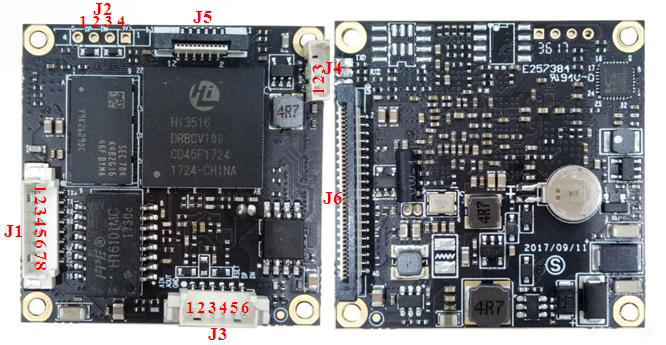

H.265 Hi3516DV100 full function 2MP Sony IMX291 Starlight IP camera board

SKU: H6D1S291

$47.00

Weight: 0.05 kg

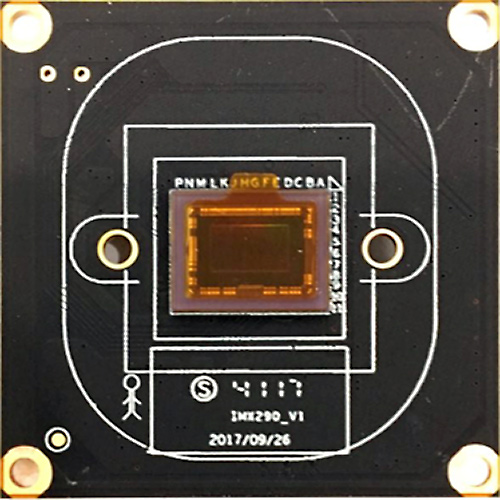

Sony IMX291 starlight 2MP sensor.
Hisilicon Hi3516DV100 processor, the latest version of ISP, low power consumption, low illumination, better noise processing, and further optimized color reproduction;
25fps full real-time monitoring, using H.265 video compression technology, low bit rate, high definition image
Full-featured interface: two-way voice, digital input and output alarm, USB wireless WIFI, TF card local storage, RTC time synchronization, hardware reset, etc.
Adopting industry-leading low-power process and internal low-power architecture design, the module continues to lead the industry in low bit rate, high image quality and low power consumption;
Secondary development customization (PCBA structure, SDK development kit, software platform docking)

Specifications

Model		H6D1S291
System	Main Chip	Hi3516DV100
	Sensor	Sony IMX291
	Board Type	Full function board
Display	Video Resolution	1920x1080
	Effective resolution	2MP
	Video Coding standard	H.265/H.264
	Video Frame rate	25FPS
	Video bitrate	128kbps ~ 8Mbps
	Video bitrate	VBR CBR selectable
Audio	Audio Input Output	Support
Audio	Audio Coding	G.711U
Function	Privacy area	Support 4 privacy area
	Exposure Control	Auto
	Gain Control	Auto
	White Balance	Auto
	Day&Night	Manually set the switching mode of IR-CUT through software
	Video Adjust	Support contrast, brightness, saturation, sharpness, etc.
	Remote operation	System settings, Video stream management, account management, network management
	Motion Detection	Support
	Alarm	Email Alarm, Client Alarm
	Maximum number of remote users	32
	DC Auto Iris	Support
	USB Interface	Extended wifi module
	Reset	Hardware Reset
	RTC Time synchronization	Support
Expansion	Add expansion board	Add switch input/output alarm, TF card local storage and other functions
