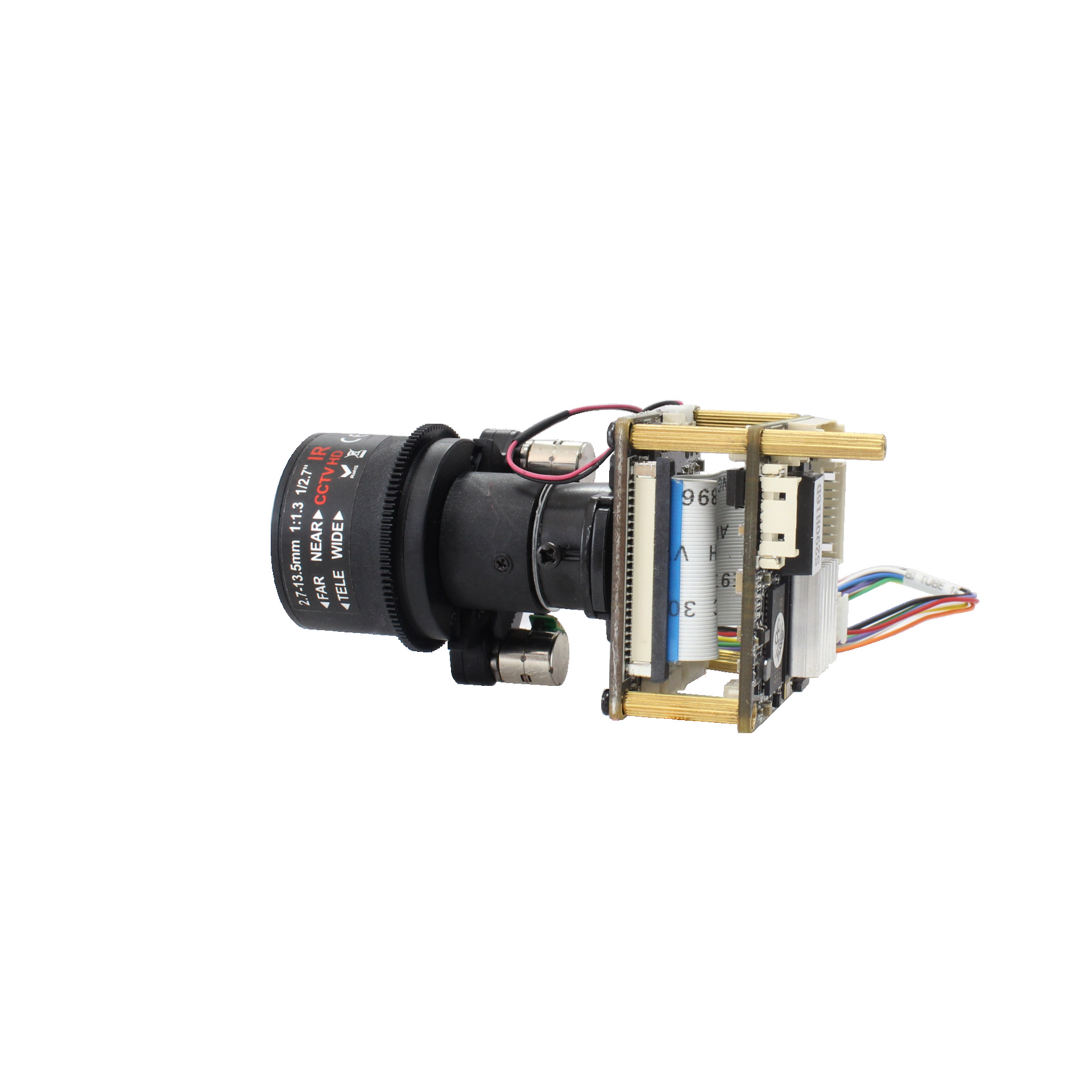

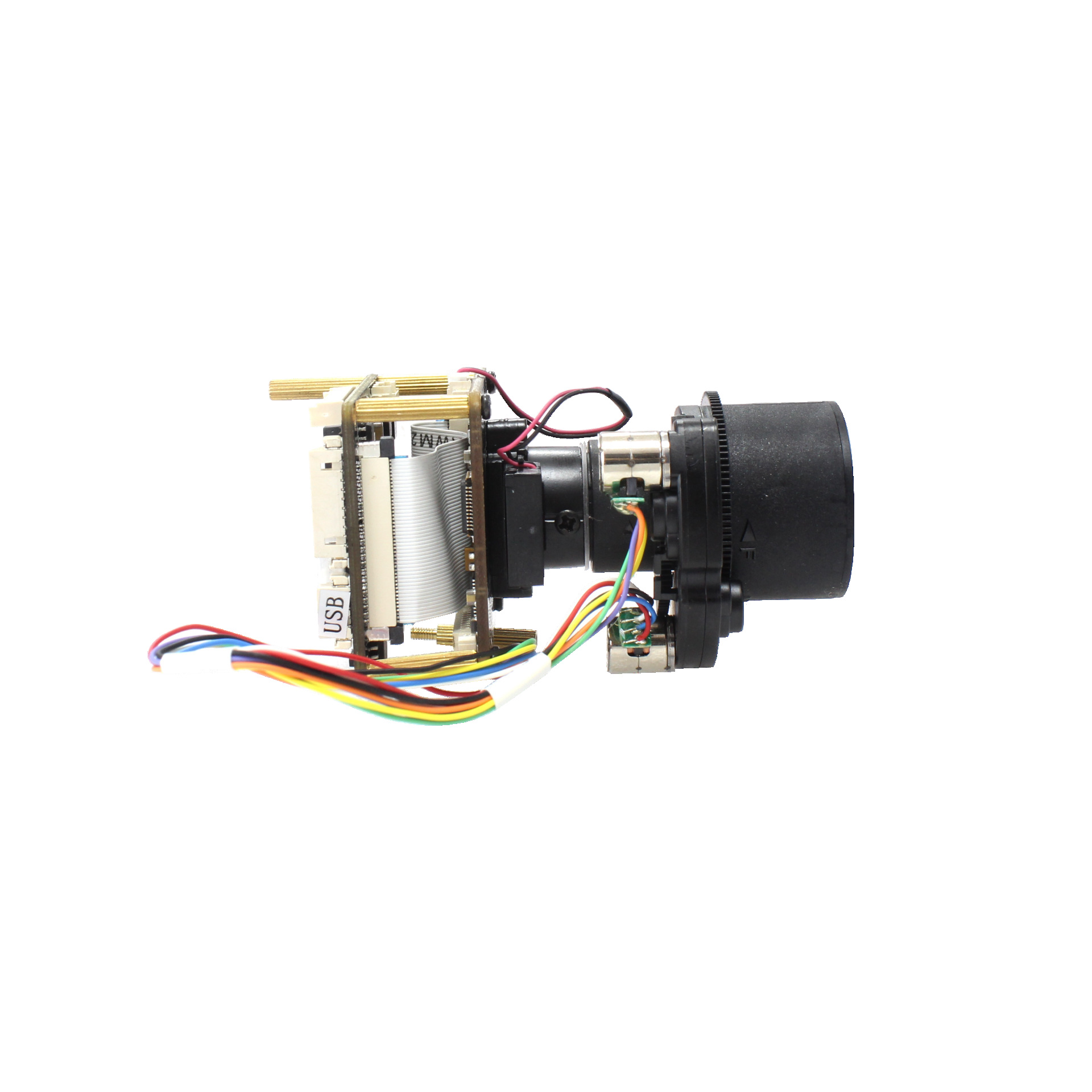

IP16XS291D-AZ0722

IP16XS291D-AZ0722

SKU: IP16XS291D-AZ0722

Sensor:

Video Coding:

Hole Distance:

Resolution:

$75.66

Weight: 0.12 kg

Pixel Size:

Description

  • H.265/H.264 video compressing, high compression, stream control accurate, stable, support dual stream

  • 1/2.8" SONY Starvis IMX291 CMOS Sensor, 2MP

  • 3X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods

  • support dual stream

  • Support network disconnect, motion detection, Video masking, intelligent out off focus alarm

  • Smart coding

  • Up to 4 ROI area,

  • abundant network protocol

  • D-WDR, 3D noise reduction

  • ONVIF2.4, GBT28181

  • Support CVBS output

ModelIP16XS291D-AZ0722
IP camera
Image sensor1/2.8 inch 2MP Sony Starvis IMX291 CMOS
CPUHi3516CV300
Effective pixels1920(H)x 1080(V)
Scan systemprogressive
Electronic shutter1/25s~1/10000s
Min illuminatorColor:0.001Lux@F1.2
S/N Ratio≥50dB(AGC OFF)
IR Cut modeICR Switch
WDR&gt 80dB D-WDR
Noise reduction3D
Video maskingUp to 4 area
Lens type2MP 3X automatic zoom lens, 7-22mm, F1.4, 43°~13°
Video
CodingH.265/H.264/MJPEG
Main stream1080P(1920x1080),720P(1280*720)
Sub streamD1(704x576)/VGA(640*480)/QVGA(320x240)
Video frame1 ~ 25fps (50HZ) 1 ~ 30fps (60HZ)
Video bit ratio32KB ~ 16Mbps, Support CBR/VBR
Picture settingbrightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE areadjustable, support privacy masking OSD Image eversion90°/ 270°,ICR Switch auto or manual are optional
Smart function
Smart codingSupport low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detectionSupport intelligent masking detection ,intelligent out off focus detection
Smart controlSupport smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface10M/100M
Network protocolIPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standardONVIF/GB28181
Client userUp to 8 user at same time
Smart phoneiphone, ipap, Android
General parameter
PowerDC 12V 1A (POE optional)
Consumption2W(MAX)
Temperature, humidity-10°C~55°C, 20-80%RH (Non coagulation)
Size38X38X68mm

Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
