IP16DS291D-AZ27135

SKU: IP16DS291D-AZ27135

$71.75

Weight: 0.09 kg

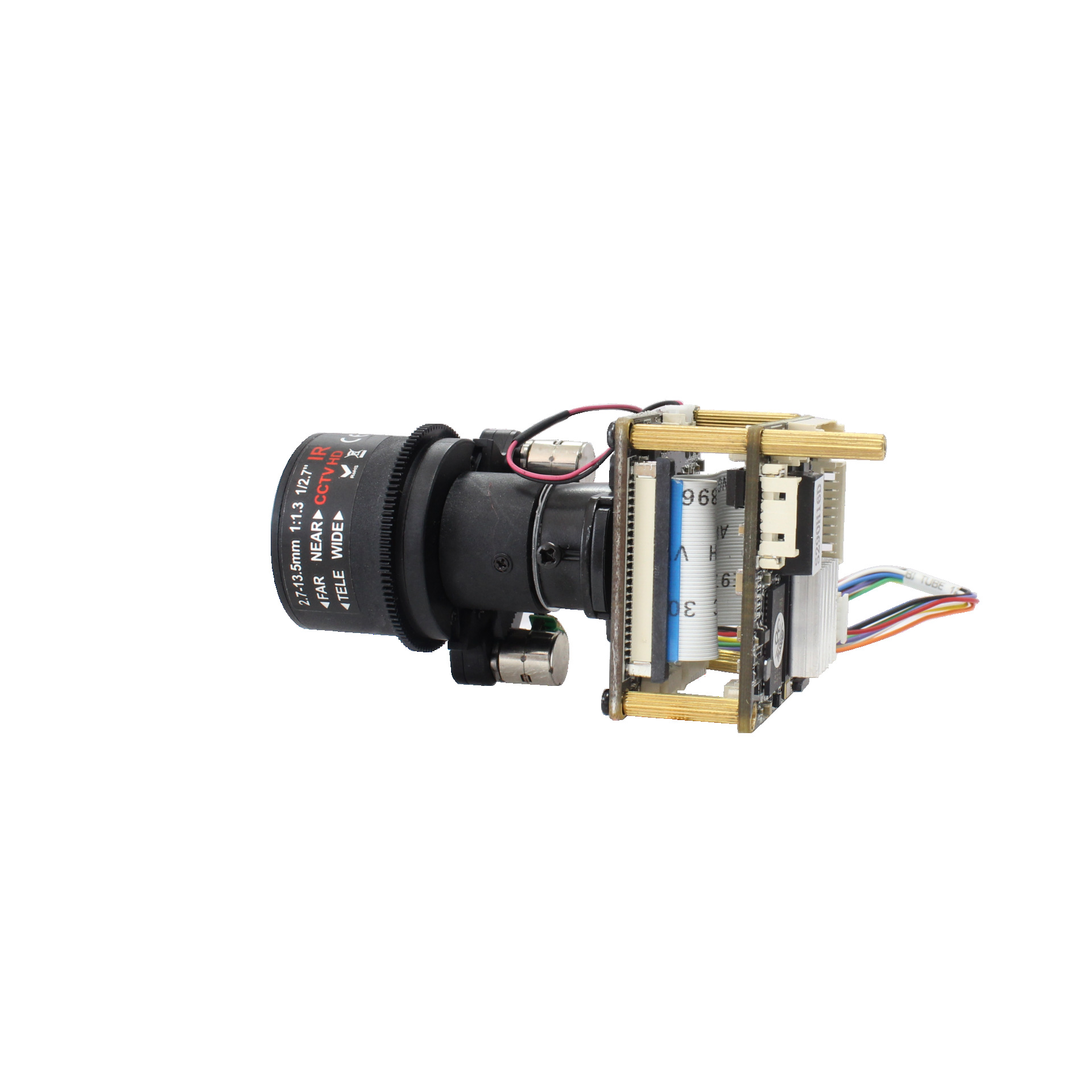

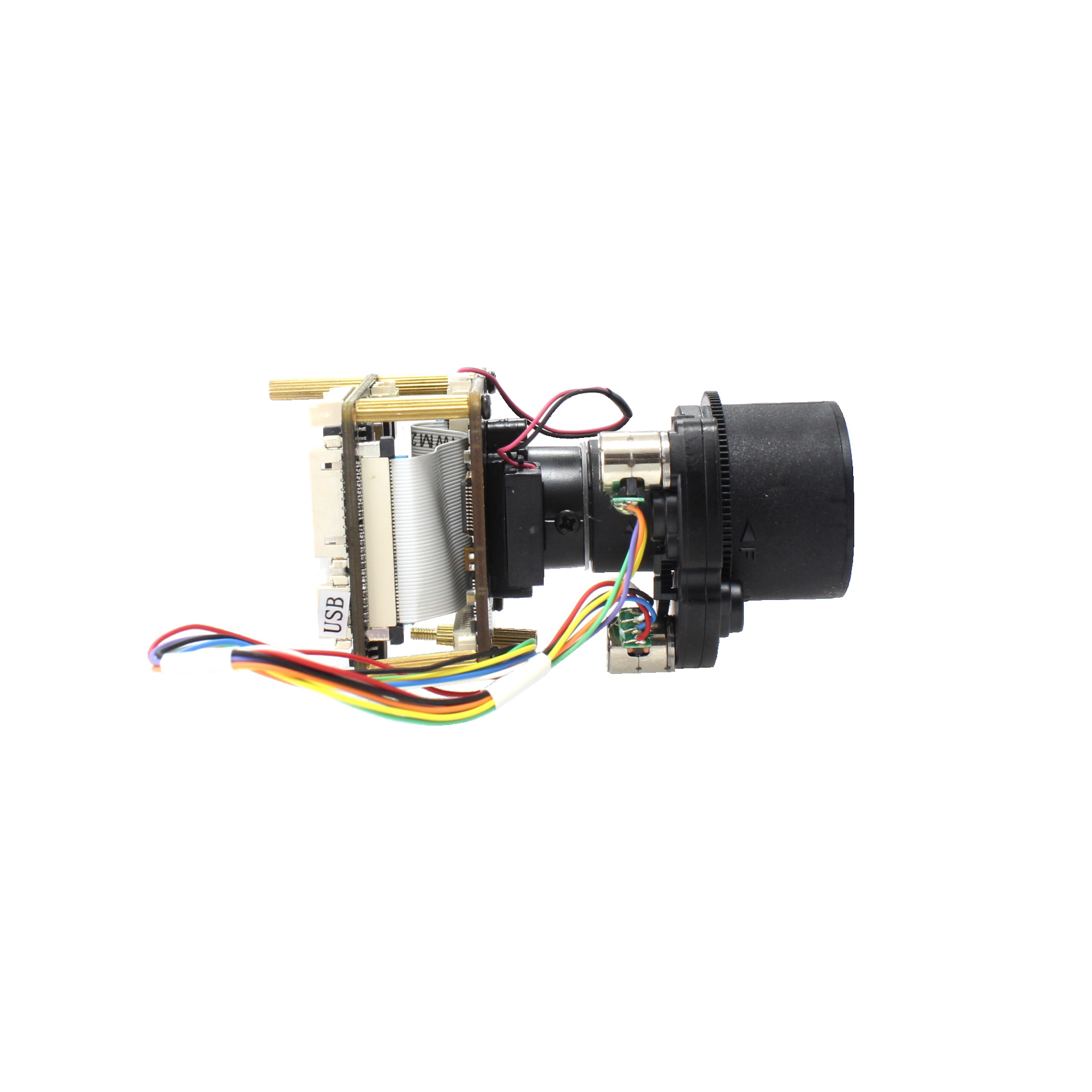

IP16D291D-AZ27135 1/2.8" 2MP Sony IMX291 + HI3516D CMOS Module 5X 2.7-13.5mm Auto Zoom Lens IR-CUT filter

H.265 video compressing, high compression, stream control accurate, stable, support dual stream
1/2.8” SONY Starvis CMOS Sensor, 2MP
5X Optics zoom, auto zoom function
Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods
support dual stream
Support network disconnect, motion detection, Video masking, intelligent out off focus alarm
Smart coding
Up to 4 ROI area,
abundant network protocol
2.0MP/1920*1080@25FPS
D-WDR, 3D noise reduction
ONVIF2.4, GBT28181

Model	IP16D291D-AZ27135
IP camera
Image sensor	1/2.8 inch 2MP IMX291
CPU	HISILICON Hi3516D
Effective pixels	1920(H)x 1080(V)
Scan system	Progressive
Electronic shutter	1/25s~1/10000s
Min illuminator	Color:0.001Lux@F1.2
S/N ratio	≥50dB(AGC OFF)
IR CUT	ICR
WDR	&gt 80dB
Noise reduction	&gt 3D reduction
Privacy masking	UP to 4 area
Lens type	4X automatic zoom lens, YTOT2.7-13.5mm
Video
Coding	H.265/H264/MJPEG
Main stream	1080P(1920x1080)\1280*720
Sub stream	D1(704x576)/VGA(640*480)/QVGA(320x240)
Video frame	1 ~ 25fps (50HZ) 1 ~ 30fps (60HZ)
Video bit ratio	32KB ~ 16Mbps
Picture setting	brightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE areadjustable, support privacy masking OSD Image eversion90°/ 270°,ICRSwitch auto or manual are optional
Smart function
Smart coding	Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROIarea
Smart detection	Support intelligent masking detection ,intelligent out off focus detection
Smart control	Support smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface	10M/100M
Network protocol	IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard	ONVIF/GB28181
Client user	Up to 8 user at same time
Smart phone	iphone, ipap, Android
General parameters
Power	DC 12V
Consumption	2W(MAX)
Temperature, humidity	-10°C~55°C,20-80%RH
Size	38X38X70mm

Dual Board

This product not include cable by default.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)		Depend on color definition of Lens	1.25mm
1	drive-
2	damp-
3	drive+
4	damp+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)		Depend on color definition of Lens	1.25mm
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface		Support powerless microphone and Line in	1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface		Support MT7601 /RT5370 USB wifi module. Support -ET TF card extension board.	1.25mm
1	GND
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out
