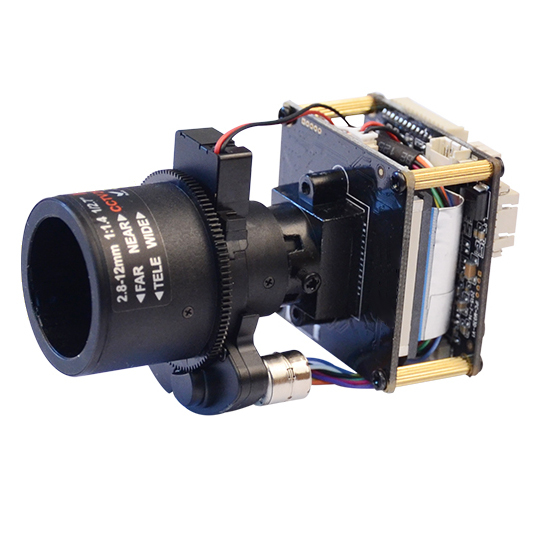

IP16XS323D-AZ2812 1/2.9" 2MP 1080P IP camera board

IP16XS323D-AZ2812 1/2.9" 2MP 1080P IP camera board

SKU: IP16XS323D-AZ2812

Sensor:

Video Coding:

Resolution:

$59.80

Weight: 0.09 kg

Pixel Size:

Description

  • 1/2.9" IMX323 low illumination CMOS sensor

  • Adopt Hi3516CV300, Standard size:38mm*38mm  Dual Board

  • support Day&amp Night switch infrared sensor, Support LDR signal linkage, apply to common Box, Bullet, dome and etc housing

  • H.265/H.264 video coding, support dual stream, Max resolution:1920*1080, color 0.1Lux@F1.2 B&amp W0.01 Lux@F1.2

  • Support onvif 2.4 protocol, Support compatible with most oversea and local platform software manager system

Model NoIP16XS323D-AZ2812(2.0MP)
Hardware
ChipsetHI3516CV300 1/2.9" CMOS IMX323
Min illuminationColor 0.1Lux@F1.2  B&W0.01Lux@F1.2
SNR> 50db(AGC OFF)
WDRDWDR &gt 80db
Lens Type5X Optical auto zoom Lens  2.8-12mm
interface
Audio/ Talk input1CH Audio MIC input/ line input
Audio output1CH line output
Analog video outputsupport 1ch CVBS output
Alarm in/out1ch alarm in
IO interface1ch reset
USB interface1pcs USB interface, support TF card storage expansion(MAX128G)
Video coding
Coding formatH.265 Main Profile coding  H.264 Baseline, Main Profile, High Profile coding
MJPEG coding
Image ResolutionMain stream1920*1080, 1-25(30)fps
1280*720, 1-25(30)fps
Sub-stream704*576, 1-25(30)fps  640*480, 1-25(30)fps
640*352, 1-25(30)fps  320*240, 1-25(30)fps
video compression rate32Kbps-16Mbps able to continue adjusting, support CBR/VBR
Subtitles overlaysupport channel name, date time, streaming info overlay, overlay position adjustable
Data transmission &amp storage
Data storagevideo, image files
Storage mechanismManual, auto(circulation, time, alarming switch volume,motion detection)
Alarm data transmissionFTP, E-mail,browser, manage software
Protocol supportTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF protocolStandard onvif 2.4protocol
Client browserSupport IE6.0 and above(embedded Web Server in device)browse by browser，support 8 users to access simultaneously(MAX)
Mobile clientSupport iPhone, iPad, Android
General Specification
Power supplyDC12V 1A/POE(External connect POE module)
Device power3W(MAX)
Device dimension38(long) * 38(wide) *15(high)mm (without lens)
IR-CUT pitch of holes22mm
Device weight0.15Kg


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
