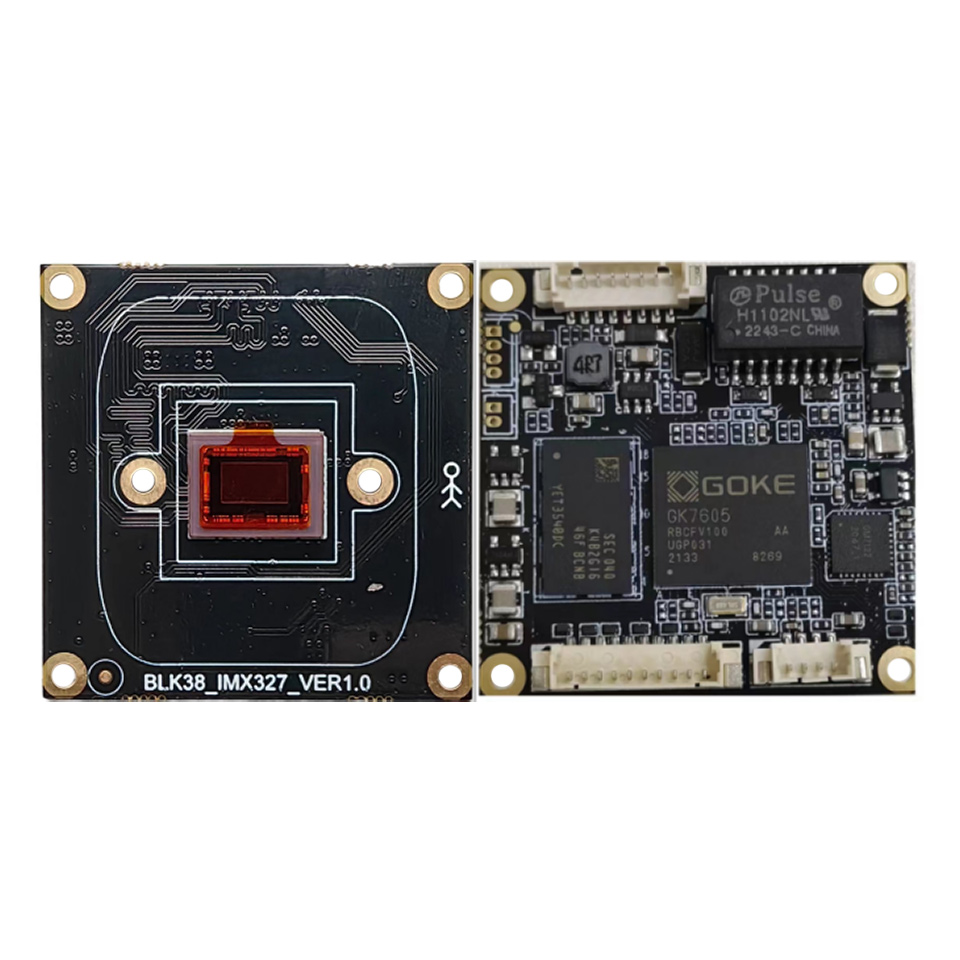

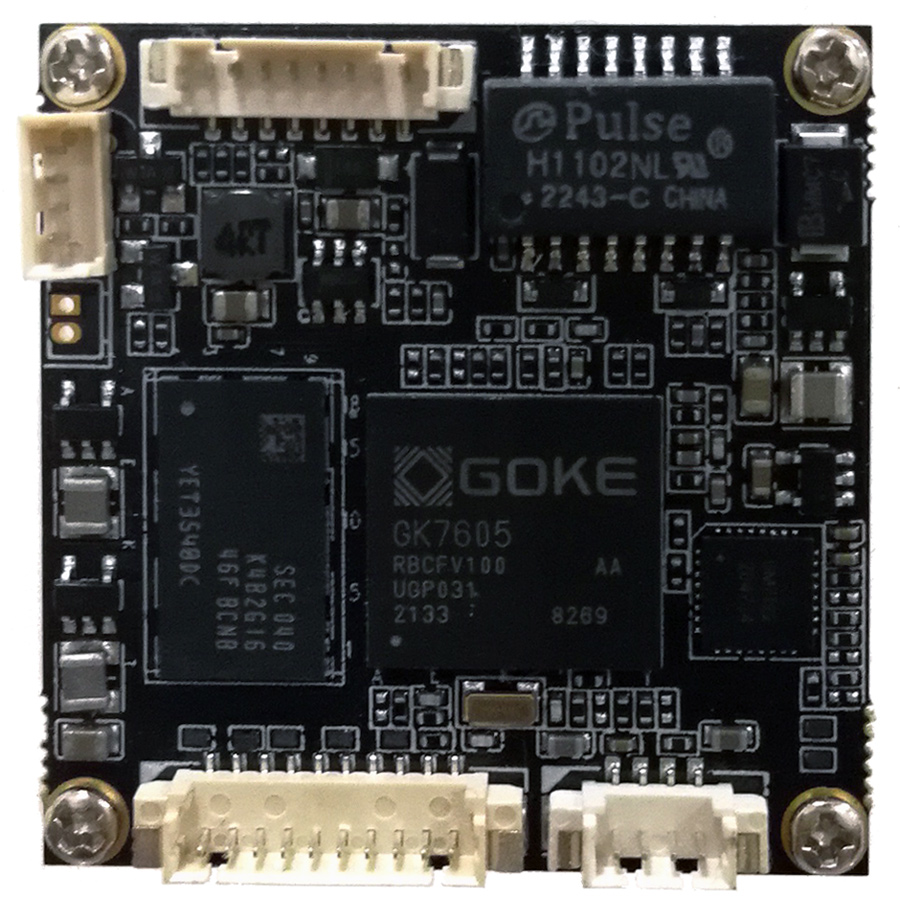

G327A 30fps Starvis 1080P 1/2" Sony Starlight IMX327 + GK7605V100 2MP 1080P CCTV IP CAMERA Board Security Camera Module
Description
1/2.8" 2.0 megapixel CMOS sensor
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color mode, support PWM dimming
Support CVBS analog video output (optional)
Support standard ONVIF
Support motorized zoom (optional), auto iris (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarm
Specification | |
| SOC | GK7605V100，Cortex A7@900MHz |
Sensor | 1/2.8" Progressive Scan CMOS IMX327 |
Min illumination | Color：0.0001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 30 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 30 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi (Optional) |
Reset | Support |
CVBS output | 1ch CVBS analog video output (optional) |
Size | 38x38x18mm，38mm dual board structure |
Weight | 20 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max @30fps) |
Pin definition:
Packing list:

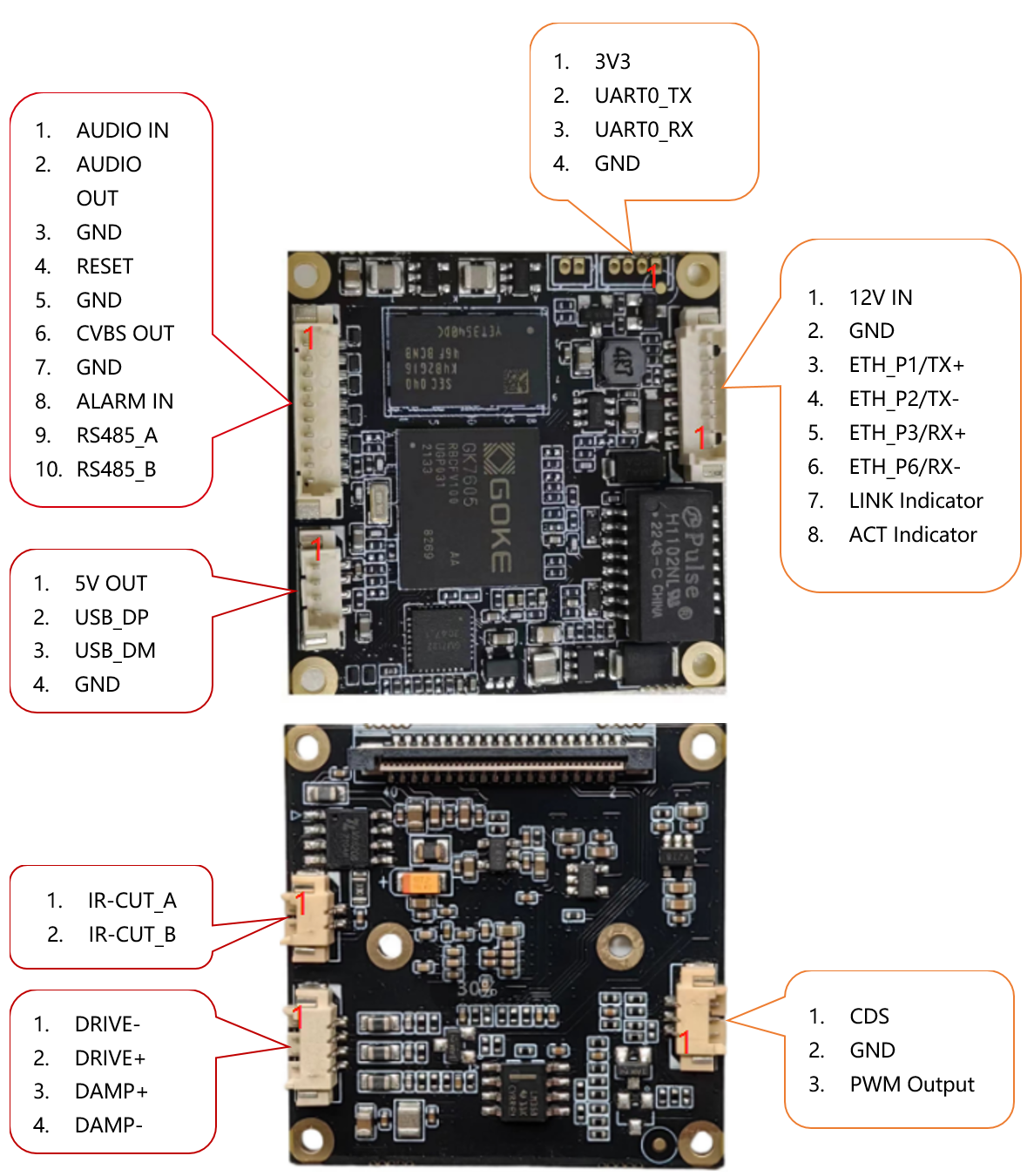

Pin Definition

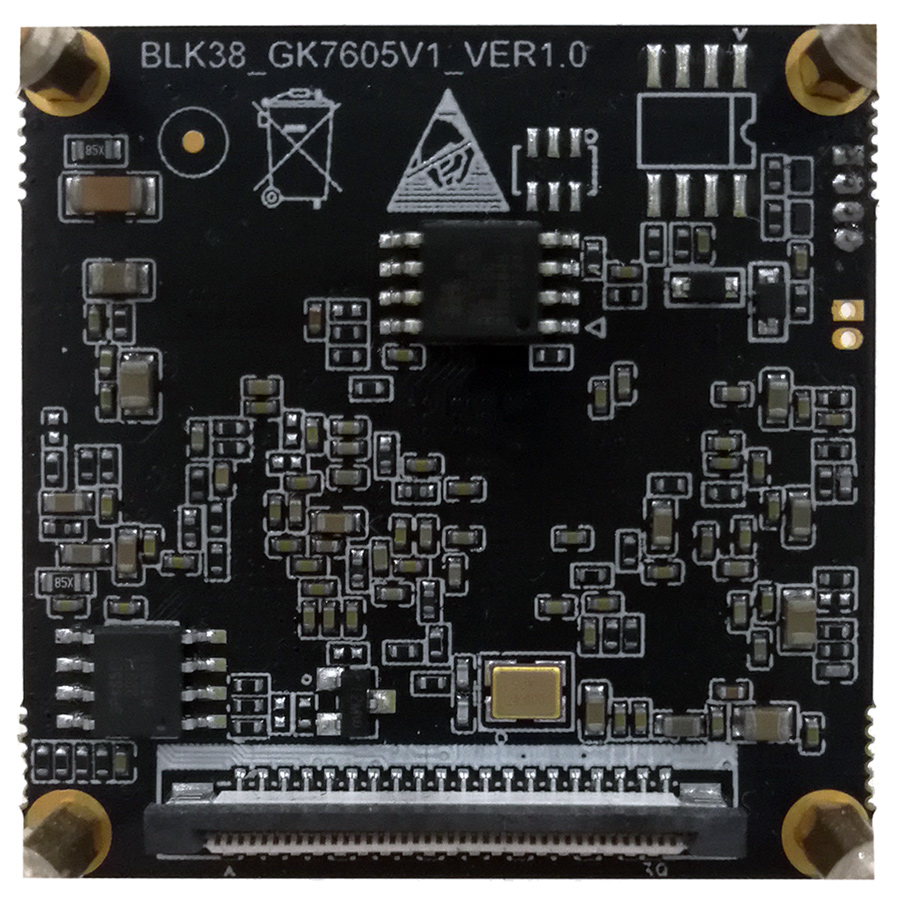

Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V
1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface
1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
