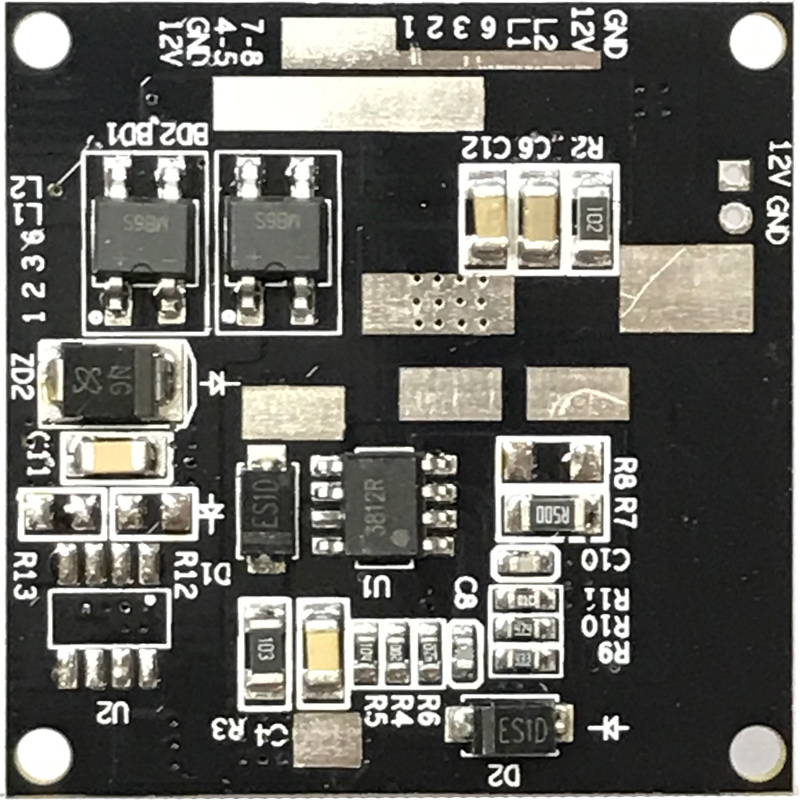

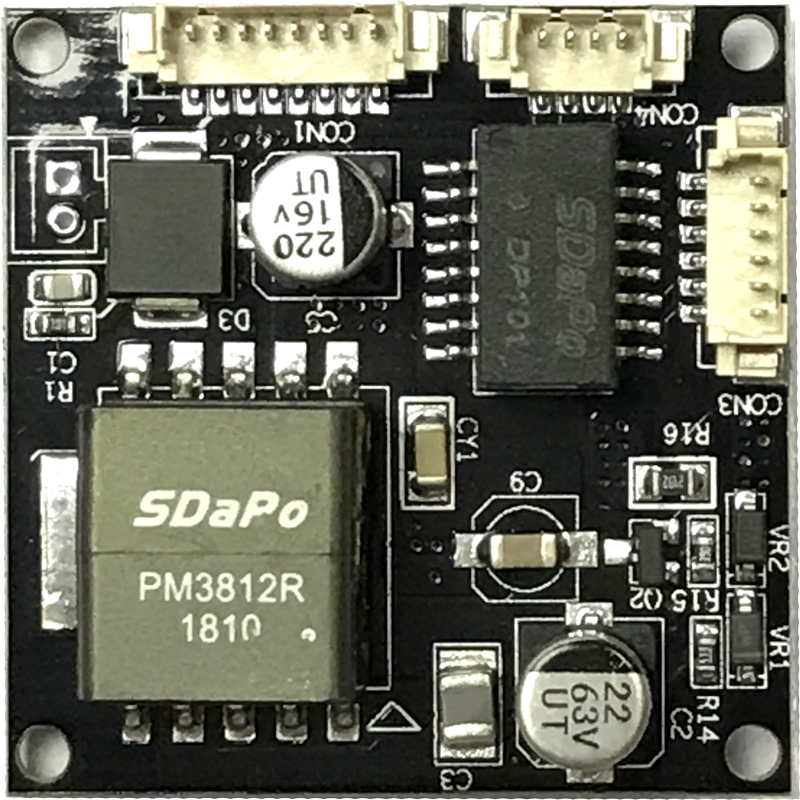

IPCB-EP2 standard 48V to 12V 38mm POE module for IP camera baord module

IPCB-EP2 standard 48V to 12V 38mm POE module for IP camera baord module

SKU: IPCB-EP2
$4.80

Weight: 0.05 kg

Description

Features:
1, Specifications: Meet the IEEE802.3af standard, class 0
2, safety: a perfect short circuit protection circuit, 1500V high voltage isolation
3, size: 38 * 38mm, suitable for IPC internal integrated design
4, integrated network filter, suitable for all IPC modules
5, compatibility: support for end-span (1,2 +/3,6-) and midspan (4,5-+/7,8-) two power modes
6, wide temperature work: -20 ° to 65 ° stable work

The main parameters:

No. Parameter Symbol Min Typ Max Unit
1 Input Voltage Vin 37 48 57 V
2 Output voltage +VDC 11.8 12 12.2 V
3 Output Current PWR 1 1.08 A
4 isolation voltage ISO 1.48 1.5 1.52 KV
5 Storage temperature Tj  -40 25 120 °C
6 operating temperature Tstg -20 25 65 °C

(1) Typical value is 25°C, measured value under 48V power supply, for reference design only

(2) The recommended load value in Af mode should not exceed 950mA (including IR-cut switching) to suit different environments

CON1 to Camera Module
1 RJ45_6
2 RJ45_3
3 RJ45_2
4 RJ45_1
5 RJ45 LED2
6 RJ45 LED1
7 12V+
8 12V-
CON3 Ether port
1 RJ45_6
2 RJ45_3
3 RJ45_2
4 RJ45_1
5 RJ45 LED2
6 RJ45 LED1
CON4 Port
1 DC12V+ 12V DC output
2 GND 12V DC output
3 RJ45_4/5
4 RJ45_7/8
