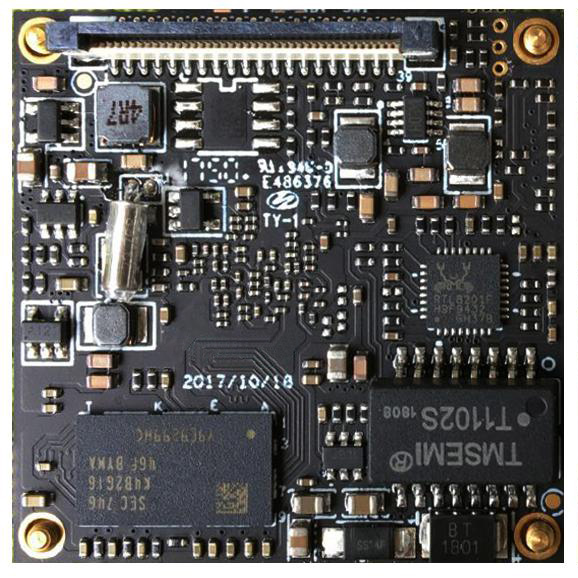

H.265 Hi3516AV200 full function 2MP Sony IMX385 Starlight IP camera board

H.265 Hi3516AV200 full function 2MP Sony IMX385 Starlight IP camera board

SKU: H6A2S385

Sensor:

Video Coding:

Hole Distance:

Resolution:

$139.00

Weight: 0.05 kg

Pixel Size:

Description

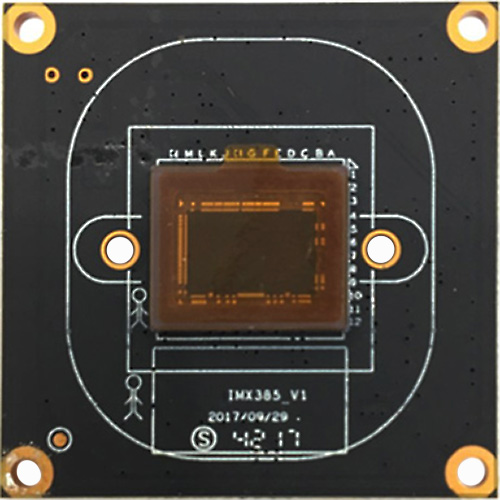

  • Sony IMX385 starlight 2MP sensor.

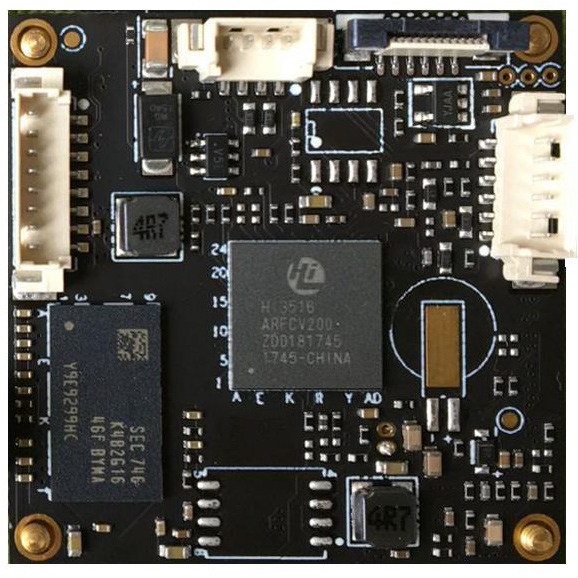

  • Hisilicon Hi3516AV200 processor, the latest version of ISP, low power consumption, low illumination, better noise processing, and further optimized color reproduction;

  • 25fps full real-time monitoring, using H.265 video compression technology, low bit rate, high definition image

  • Full-featured interface: two-way voice, digital input and output alarm, USB wireless WIFI, TF card local storage, RTC time synchronization, hardware reset, etc.

  • Adopting industry-leading low-power process and internal low-power architecture design, the module continues to lead the industry in low bit rate, high image quality and low power consumption;

  • Secondary development customization (PCBA structure, SDK development kit, software platform docking)

Specifications



Model

H6A2S385

System

Main Chip

Hi3516AV200
SensorSony IMX385

Board Type

Full function board

Display

Video Resolution

1920x1080

Effective resolution

2MP

Video Coding standard

H.265/H.264

Video Frame rate

60FPS

Video bitrate

128kbps ~ 8Mbps
VBR CBR selectable

Audio

Audio Input Output

Support

Audio Coding

G.711U

Function

Privacy area

Support 4 privacy area

Exposure Control

Auto

Gain Control

Auto

White Balance

Auto

Day&Night

Manually set the switching mode of IR-CUT through software

Video Adjust

Support contrast, brightness, saturation, sharpness, etc.

Remote operation

System settings, Video stream management, account management, network management

Motion Detection

Support

Alarm

Email Alarm, Client Alarm

Maximum number of remote users

32

DC Auto Iris

Support

USB Interface

Extended wifi module

Reset

Hardware Reset

RTC Time synchronization

Support

Expansion

Add expansion board

Add switch input/output alarm, TF card local storage and other functions

Pin Definition

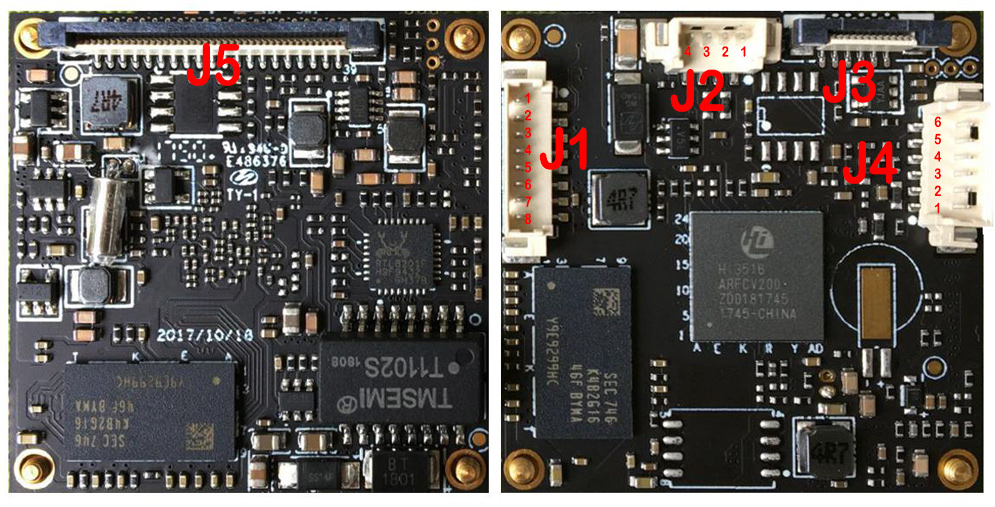

  • H6A2 3516AV200 Board

    Pin definition


    J1 Ethernet Port

    PinDescription
    1TX+
    2TX-
    3RX+
    4RX-
    5LED-Link
    6LED-ACT
    7GND
    8DC 12V



    J2 USB Port

    PinDescription
    13.3V
    2USB-DM
    3USB-DP
    4GND



    J4 Audio Input, Audio Output, Reset, RS485

    PinDescription
    1Ain
    2AC-OUTL-Rear
    3GND
    4RESET
    5RS485 DP
    6RS485 DN



    J3 FPC interface for TF Card & Alarm



    J5 To Sensor Board
