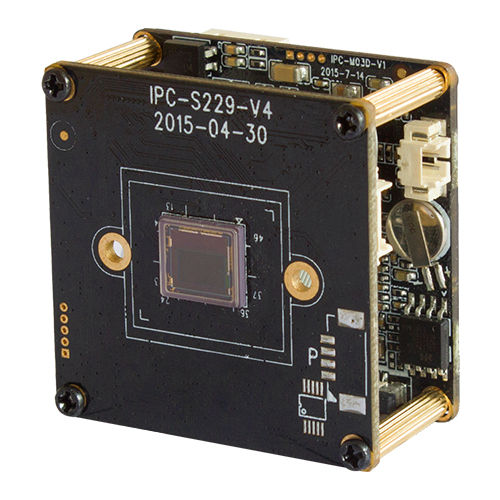

IP16DP229D 1/3" 2MP WDR 120db Panasonic 34229 + Hi3516D IP camera video recorder board (2MP, MN34229)

IP16DP229D 1/3" 2MP WDR 120db Panasonic 34229 + Hi3516D IP camera video recorder board (2MP, MN34229)

SKU: IP16DP229D

Sensor:

Video Coding:

Resolution:

$54.72

Weight: 0.04 kg

Description

  • 2.0 megapixel WDR 2 Boards IP Camera Module, Hi3516D + PANASONIC MN34229 CMOS

  • 1/3" 2.0 Megapixels Progressive Scan Panasonic 34229 CMOS, Hisilicon Hi3516D Chipset, the highestresolution of 1920*1080, 0.05 Lux@F1.2 (color), 0.01 Lux@F1.2 (black and white)

  • 38X38mm 2 boards

  • RS485,Optional Motorized lens, IR - CUT (day/night), adapt Bullet, Dome

  • H.264 or H.265 video coding, doublestream, ONVIF 2.4, be compatible many NVR and platform management software.

  • Hisilicon Hi3516D

  • 1/3" 2.0 Megapixels Progressive Scan Panasonic 34229 CMOS

  • Max 25/30fps@2.0 Megapixels (1920*1080)

  • H.264/H.265/MJPEG dual-stream encoding

  • WDR > 120dB

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol

  • BLC

ModelIP16DP229D(-AI/-ET9/-EP)
Camera
Image Sensor1/3” 2.0 megapixels Progressive Panasonic 34229 CMOS
CPUHisilicon 3516D
Effective Pixels1920(H)*1080(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)
Min. Illumination0.05 Lux@F1.2 (color), 0.01 Lux@F1.2 (black and white)
S/N Ratio≥50db(AGC OFF)
Camera Features
Day/NightAuto(ICR)/Color/B/W
WDR

> 120dB

White BalanceAuto
Gain ControlAuto
Noise Reduction3D
Privacy MaskingUp to 4 areas
Video
CompressionH.264 / MJPEG / H.265
Resolution1080P(1920*1080) / 720P(1280*720) / D1(704*576) / VGA(640*480) / QVGA(320*240)


Main Stream

1920x1080(1 ~ 25/30fps), 1280x720(1 ~ 25/30fps)

Sub Stream

D1 / VGA / QVGA(1 ~ 25/30fps)
Bit Rate32KB ~16Mbps, support VBR, CBR
Text OverlayChannel, Date & Time, Bit Rate
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF 2.4
Max. User Access8 users, IE, Google, Firefox
Smart PhoneWindows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio inSupport
Audio outSupport
BNC Video outSupport
RS485Support
USB

Support (Max 128G USB flash, optional -ET TF extension board)
Support MT7601 WiFi module

Alarm inSupport
Alarm outN/A
IO InterfaceSupport
General
Power Supply

DC12V / PoE (-EP POE extension board 802.3af)

Power Consumption< 3W
Working Environment-20°C~+55°C , Less than 90% RH
Dimensions38 x 38 x 20mm
Weight0.15kg

Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
