standard 48V to 12V 38mm POE module for IP camera baord module
Description
Features:
1, Specifications: Meet the IEEE802.3af standard, class 0
2, safety: a perfect short circuit protection circuit, 1500V high voltage isolation
3, size: 38 * 38mm, suitable for IPC internal integrated design
4, integrated network filter, suitable for all IPC modules
5, compatibility: support for end-span (1,2 +/3,6-) and midspan (4,5-+/7,8-) two power modes
6, wide temperature work: -20 ° to 65 ° stable work
The main parameters:
No. | Parameter | Symbol | Min | Typ | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | Output voltage | +VDC | 11.8 | 12 | 12.2 | V |
3 | Output Current | PWR | 1 | 1.08 | A | |
4 | isolation voltage | ISO | 1.48 | 1.5 | 1.52 | KV |
5 | Storage temperature | Tj | -40 | 25 | 120 | °C |
6 | operating temperature | Tstg | -20 | 25 | 65 | °C |
(1) Typical value is 25°C, measured value under 48V power supply, for reference design only
(2) The recommended load value in Af mode should not exceed 950mA (including IR-cut switching) to suit different environments
CON1 to Camera Module | ||
1 | RJ45_1 | |
2 | RJ45_2 | |
3 | RJ45_3 | |
4 | RJ45_6 | |
5 | RJ45 LED1 | |
6 | RJ45 LED2 | |
7 | 12V+ | |
8 | GND | |
CON3 Ether port | ||
1 | RJ45_1 | |
2 | RJ45_2 | |
3 | RJ45_3 | |
4 | RJ45_6 | |
5 | RJ45 LED1 | |
6 | RJ45 LED2 | |
CON4 Port | ||
1 | DC12V+ | Power output |
2 | GND | Power GND |
3 | RJ45_4/5 | |
4 | RJ45_7/8 |

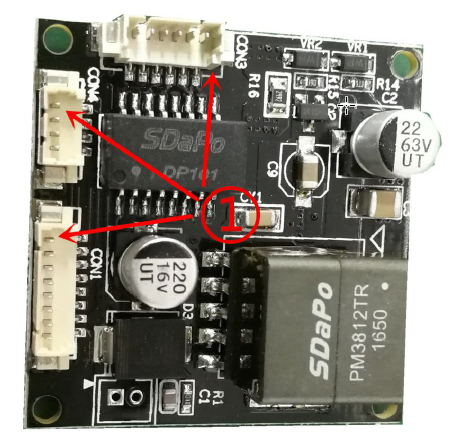

Pin Definition
Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V 1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface 1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
