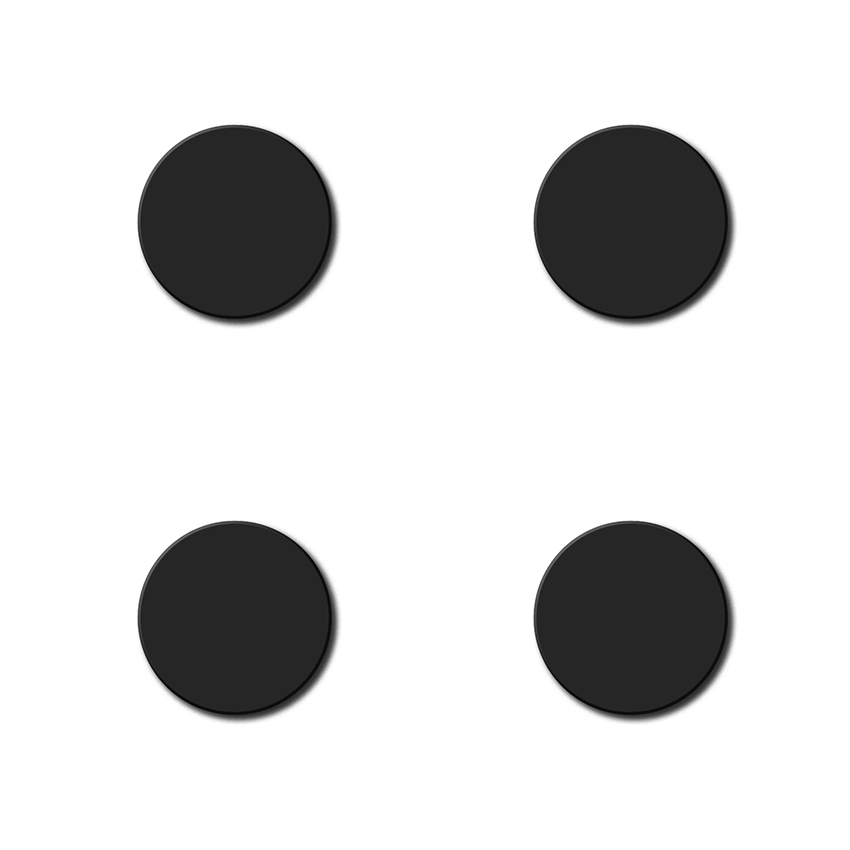

830nm IR long pass filter black 830~2500nm pass Φ15*0.5mm
830nm IR long pass filter black 830~2500nm pass Φ15*0.5mm
SKU: IRLP830-D1505
$6.00
Weight: 0.05 kg
Description
830nm IR long pass filter black 830~2500nm pass Φ15*0.5mm
| model | HWB830 colored optical filter |
| characteristic | Cut-off visible light infrared 830-2500nm infrared high transparency infrared filter |
| size | Φ15*0.5mm |
| thickness | 0.5mm |
| Dimensional tolerance | Positive and negative 0.1mm |
| Thickness tolerance | Positive and negative 0.05mm |

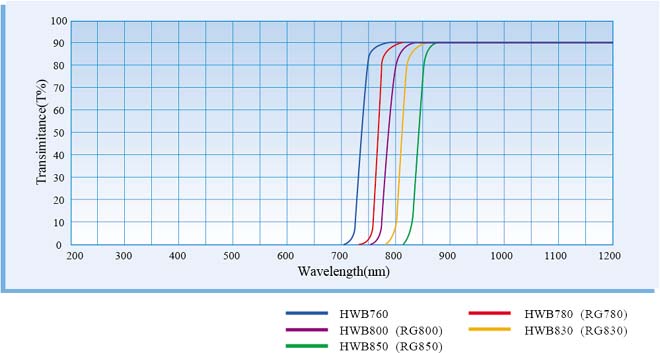

The spectrum is as follows:
