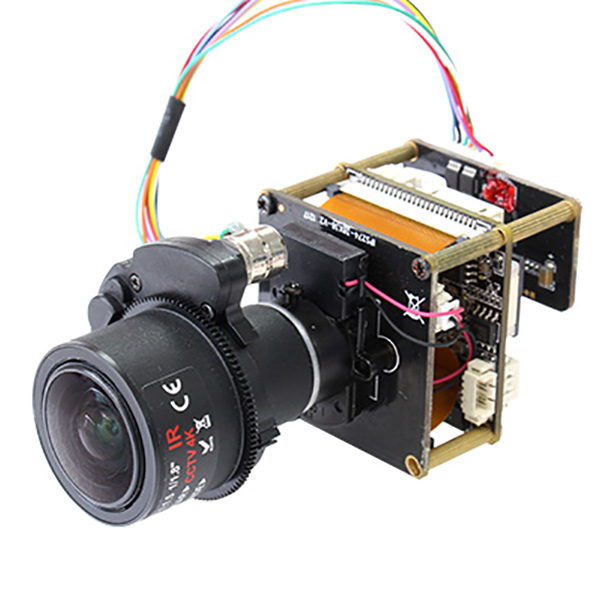

IP19VS274D-AZ3611 1/2.5" 8MP 4K Sony IMX274 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens (8MP, AZ(Auto Zoom), IMX274)

IP19VS274D-AZ3611 1/2.5" 8MP 4K Sony IMX274 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens (8MP, AZ(Auto Zoom), IMX274)

SKU: IP19VS274D-AZ3611

Sensor:

Video Coding:

Hole Distance:

Resolution:

$339.00

Weight: 0.12 kg

Description

Product features:

  • Use latest standard H.265 video compression technology, High compression ratio,accurate and stable stream control ,support dual stream

  • Use 1/2.5 inch 8.0MP CMOS, Sony high performance image sensor

  • 3X optical zoom, focus faster, zoom process with clear throughout

  • Built-in automatic night and day double filter switching mechanism, with manual or automatic color

  • Support dual stream

  • Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm

  • Support intelligent coding control

  • Max supports 4 ROI regions of interest

  • Support rich network protocol

  • 8.0MP/3840*2160@25FPS

  • Support D-WDR,3D noise reduction

  • Support ONVIF protoco, GBT28181

ModelIP19VS274D-AZ3611
IPC
Image sensor1/2.5 Inch 8MP IMX274
CPUHi3519v101
Effective pixels3840(H)x 2160(V)
Scan systemprogressive scanning
Electronic shutter1/25s~1/10000s  automatic regulation
Min illuminatorColor: 0.001Lux@F1.2,
S/N Ratio≥50dB(AGC OFF)
IR CutICR
WDR> 80dB
Noise reduction3D noise reduction
Privacy maskingUp to 4 privacy masking
Lens type3X optical zoom lens,YTOT3.6-11mm 8MP Motorized lens
Video datesheet
CompressionH.265/H264/MJPEG

Main stream

3840*2160 / 2592*1944 / 2048*1536 / 1080P(1920x1080)

Sub stream

D1(704x576) / VGA(640*480) /QVGA(320x240)
Video frame1 ~ 25fps (50HZ)  1 ~ 30fps (60HZ)
Video bit rate32KB ~ 16Mbps, adjustable and fixed bit rate
Image settingAdjustable brightness, contrast, saturation, sharpness, white

balance
AWB(automatic white balance),
AGC(automatic gain),
AE(automatic exposure control),

AIC(automatic aperture correction)

support privacy area occlusion
OSD superposition
image rotation: normal 90°/ 270°automatic, manual or automatic color switching

Smart Function
Smart CodingSupport low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detectionSupport intelligent occlusion detection and intelligent defocus detection
Smart controlSupport intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction
Network
Network interface10M/100M Adaptive Ethernet port
Network protocolIPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standardSupport latest ONVIF / GB28181
Client userUp to 8 user at same time
Smart Phoneiphone, ipap, Android
General
PowerDC 12V
Consumption2W(MAX)
Temperature and humidity-10°C~55°C，20-80%RH (no condensation)
Size38x38mm

-EP for extra POE support


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out

Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP19VS274D-AZ3611
Resolution:
8MP
Sensor:
IMX274
