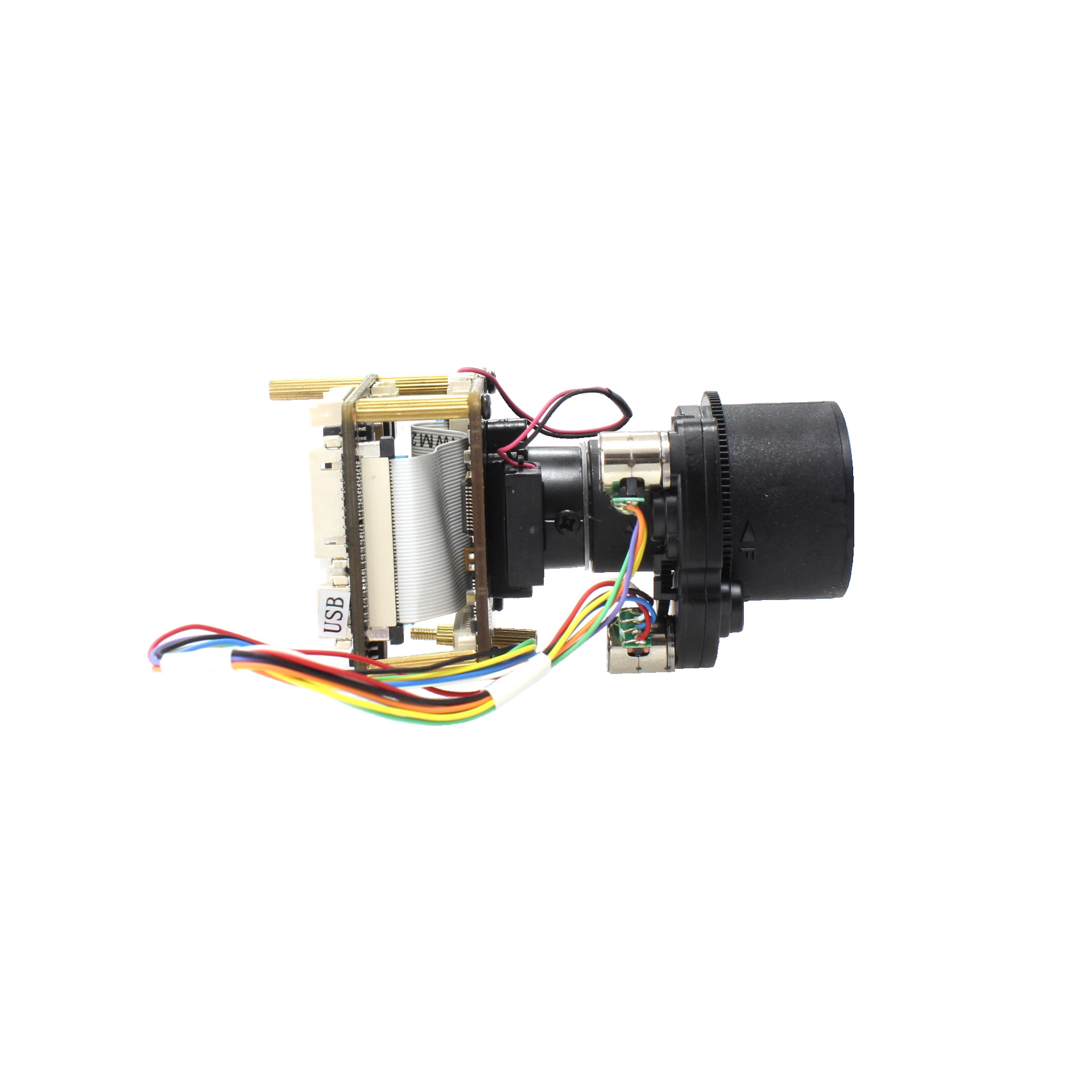

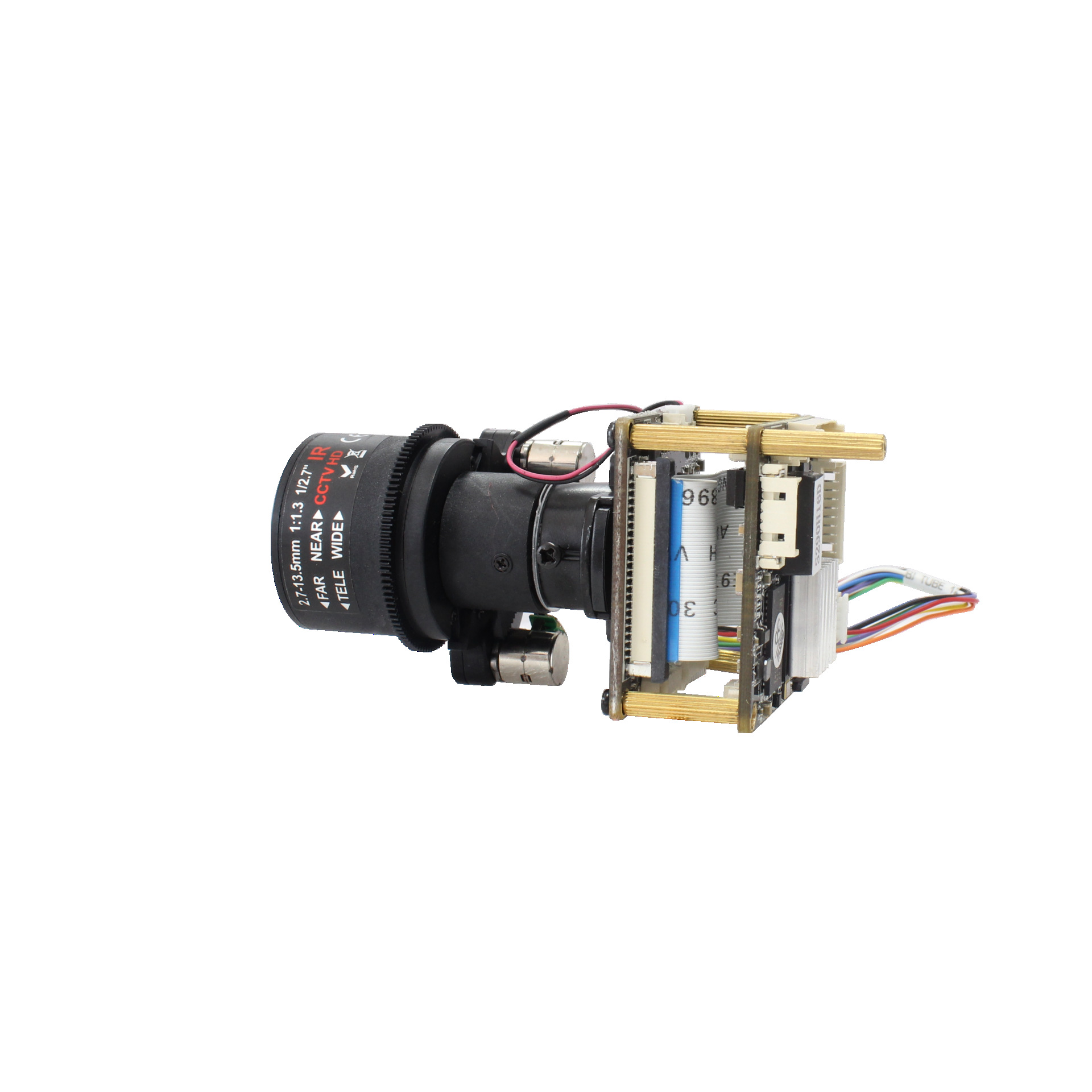

IP16DS124D-AZ0722

SKU: IP16DS124D-AZ0722

Resolution:

$90.30

Weight: 0.12 kg

Description

Product features:
· Use latest standard H.265 video compression technology,High compression ratio,accurate and stable stream control ,support dual stream
·Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor
·5X optical zoom, focus faster, zoom process with clear throughout
·Built-in automatic night and day double filter switching mechanism, with manual or automatic color
·Support dual stream
·Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm
·Support intelligent coding control
·Max supports 4 ROI regions of interest
·Support rich network protocol
·Support D-WDR, 3D noise reduction
·Support ONVIF protocol, GBT28181

Model	IP16DS124D-AZ0722
Camera
Image Sensor	1/2.8" 3MP Progressive Sony IMX124 CMOS
CPU	Hisilicon 3516D
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto (1/25 ~ 1/10000s) automatic regulation
Min. Illumination	0. 001Lux/F1.2 (Color)
S/N Ratio	≥50db(AGC OFF)
Camera Features
Day/Night	Auto(ICR)/Color/B/W
WDR	>80dB
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D
Lens interface	3X optical zoom lens, 7-22mm 4MP Automatic zoom lens
Privacy Masking	Up to 4 areas
Video
Compression	H.264/MJPEG/H.265
Main Stream	20481536/19201080 (1 ~ 25/30fps)
Sub Stream	D1(704576)/VGA(640480)/QVGA(320*240)(1 ~ 25/30fps)
Bit Rate	32KB ~16Mbps, support VBR, CBR
Imaging Setting	Adjustable brightness, contrast, saturation, sharpness, white balance AWB(automatic white balance), AGC(automatic gain), AE(automatic exposure control), AIC(automatic aperture correction) support privacy area occlusion OSD superposition image rotation: normal 90/270°automatic, manual or automatic color switching
Text Overlay	Channel, Date & Time, Bit Rate
Network
Data Storage	Video record, Picture format
Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission	FTP, E-mail, Browser, CMS
Protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF	ONVIF 2.4
Max. User Access	8 users, IE, Google, Firefox
Smart Phone	Windows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio in	Support
Audio out	Support
BNC Video out	Support
RS422/RS485	Support
USB	Support (Max 128G USB flash)
Alarm in	Support
Alarm out	N/A
IO Interface	Support
Smart function
Smart coding	Supports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas
Smart detection	Support intelligent occlusion detection and intelligent defocus detection
Smart control	Support intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction
General
Power Supply	DC12V / PoE (Optional 802.3af)
Power Consumption	< 3W
Working Environment	-20°C~+55°C , Less than 90% RH
Dimensions	38 x 38mm
Weight	0.15kg

JP1 Power Supply Connector
1	DC12V
2	CVBS GND
3	CVBS Signal Out
4	GND
JE1 Network Connector
1	RJ45_1
2	RJ45_2
3	RJ45_3
4	RJ45_6
5	Network Connected Light (Green light)
6	Network Status Light (Yellow light)
J1 IR-CUT Connector
1	IR-CUT Control Signal 5V
2	IR-CUT Control Signal 5V
J2 DC Auto-iris Connector
1	Drive-
2	Damp-
3	Damp+
4	Drive+
J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6)
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
J4 P-Lris Connector
1	IRIS A-
2	IRIS B+
3	IRIS A+
4	IRIS B-
J5 IR Light Board Connector
1	IR Light Board Power Supply (12V)
2	GND
3	IR Feedback Signal Input (0.8V-12V)
4	IC PWM Control
JVO1 BNC Video out
1	BNC Video out
2	GND
J6 Functions Connector
1	Audio In (MIC/ Line )
2	GND (Audio)
3	Audio Out
4	GND
5	Reset
6	Alarm In
7	NULL
8	NULL
9	RS_485+
10	RS_485-
JU1
1	GND
2	USB_DP
3	USB_DM
4	5V Power Supply

Pin Definition

Dual Board

This product not include cable by default.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)		Depend on color definition of Lens	1.25mm
1	drive-
2	damp-
3	drive+
4	damp+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)		Depend on color definition of Lens	1.25mm
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface		Support powerless microphone and Line in	1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface		Support MT7601 /RT5370 USB wifi module. Support -ET TF card extension board.	1.25mm
1	GND
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out
