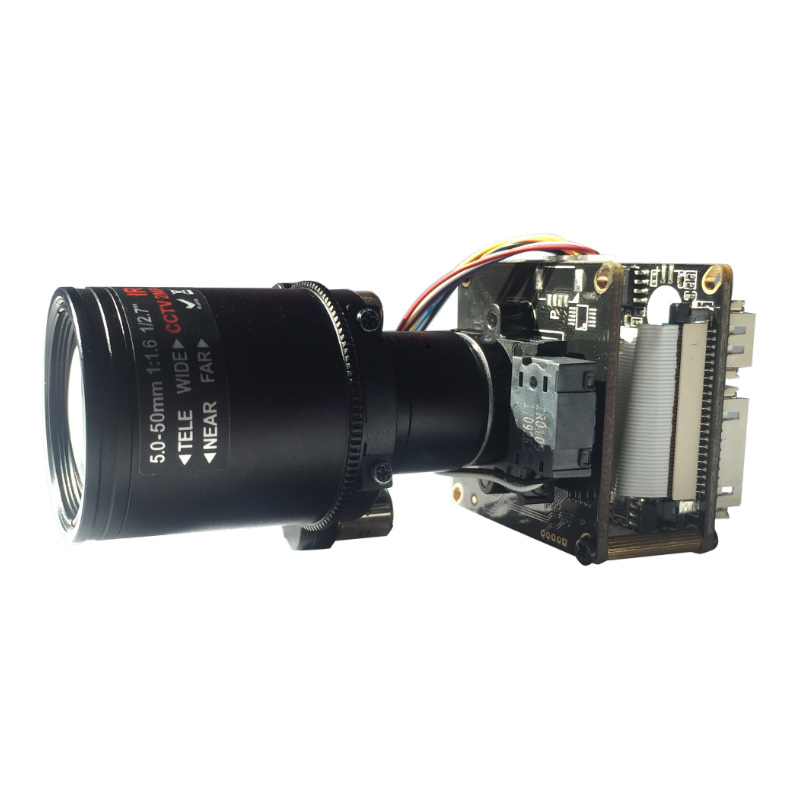

IP16DS123D-AZ0550
Description
Product features:
Use latest standard H.265 video compression technology, High compression ratio, accurate and
stable stream control ,support dual stream
Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor
10X optical zoom, focus faster, zoom process with clear throughout
Built-in automatic night and day double filter switching mechanism, with manual or automatic color
Support dual stream
Support network disconnection, motion detection, video block intelligence, intelligent defocus
detection and alarm
Support intelligent coding control
Max supports 4 ROI regions of interest
Support rich network protocol
Support D-WDR, 3D noise reduction
Support ONVIF protocol, GBT28181
Model | IP16D123D-AZ27135 |
| Camera | |
| Image Sensor | 1/2.8" 3MP Progressive Sony IMX123 CMOS |
| CPU | Hisilicon 3516D |
| Effective Pixels | 2048(H)x1536(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) automatic regulation |
| Min. Illumination | 0. 001Lux/F1.2 (Color) |
| S/N Ratio | ≥50db(AGC OFF) |
| Camera Features | |
| Day/Night | Auto(ICR) / Color / B&W |
| WDR | > 80dB |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D |
| Lens interface | 5 times optical zoom lens, 5-50mm 4MP Automatic lens |
| Privacy Masking | Up to 4 areas |
| Video | |
| Compression | H.264 / MJPEG / H.265 |
Main Stream | 2048*1536 / 1920*1080 / 720P (1280*720) (1 ~ 25/30fps) |
Sub Stream | D1(704*576) / VGA(640*480) / QVGA (320*240) (1 ~ 25/30fps) |
| Bit Rate | 32KB ~16Mbps, support VBR, CBR |
| Imaging Setting | Adjustable brightness, contrast, saturation, sharpness, white balance |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| ONVIF | ONVIF 2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Windows Mobile, iPhone, iPad, Android |
| Auxiliary Interface | |
| Audio in | Support |
| Audio out | Support |
| BNC Video out | Support |
| RS422/RS485 | Support |
| USB | Support (32G USB flash) |
| Alarm in | Support |
| Alarm out | N/A |
| IO Interface | Support |
| Smart function | |
| Smart coding | Supports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas |
| Smart detection | Support intelligent occlusion detection and intelligent defocus detection |
| Smart control | Support intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction |
| General | |
| Power Supply | DC12V / PoE (Optional 802.3af) |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Dimensions | 38 x 38mm |
| Weight | 0.15kg |
| JP1 Power Supply Connector | |
| 1 | DC12V |
| 2 | CVBS GND |
| 3 | CVBS Signal Out |
| 4 | GND |
| JE1 Network Connector | |
| 1 | RJ45_1 |
| 2 | RJ45_2 |
| 3 | RJ45_3 |
| 4 | RJ45_6 |
| 5 | Network Connected Light (Green light) |
| 6 | Network Status Light (Yellow light) |
| J1 IR-CUT Connector | |
| 1 | IR-CUT Control Signal 5V |
| 2 | IR-CUT Control Signal 5V |
| J2 DC Auto-iris Connector | |
| 1 | Drive- |
| 2 | Damp- |
| 3 | Damp+ |
| 4 | Drive+ |
| J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6) | |
| 1 | Focus A- |
| 2 | Focus A+ |
| 3 | Zoom A— |
| 4 | Zoom A+ |
| 5 | Zoom B+ |
| 6 | Zoom B- |
| 7 | Focus B- |
| 8 | Focus B+ |
| J4 P-Lris Connector | |
| 1 | IRIS A- |
| 2 | IRIS B+ |
| 3 | IRIS A+ |
| 4 | IRIS B- |
| J5 IR Light Board Connector | |
| 1 | IR Light Board Power Supply (12V) |
| 2 | GND |
| 3 | IR Feedback Signal Input (0.8V-12V) |
| 4 | IC PWM Control |
| JVO1 BNC Video out | |
| 1 | BNC Video out |
| 2 | GND |
| J6 Functions Connector | |
| 1 | Audio In (MIC/ Line ) |
| 2 | GND (Audio) |
| 3 | Audio Out |
| 4 | GND |
| 5 | Reset |
| 6 | Alarm In |
| 7 | NULL |
| 8 | NULL |
| 9 | RS_485+ |
| 10 | RS_485- |
| JU1 | |
| 1 | GND |
| 2 | USB_DP |
| 3 | USB_DM |
| 4 | 5V Power Supply |

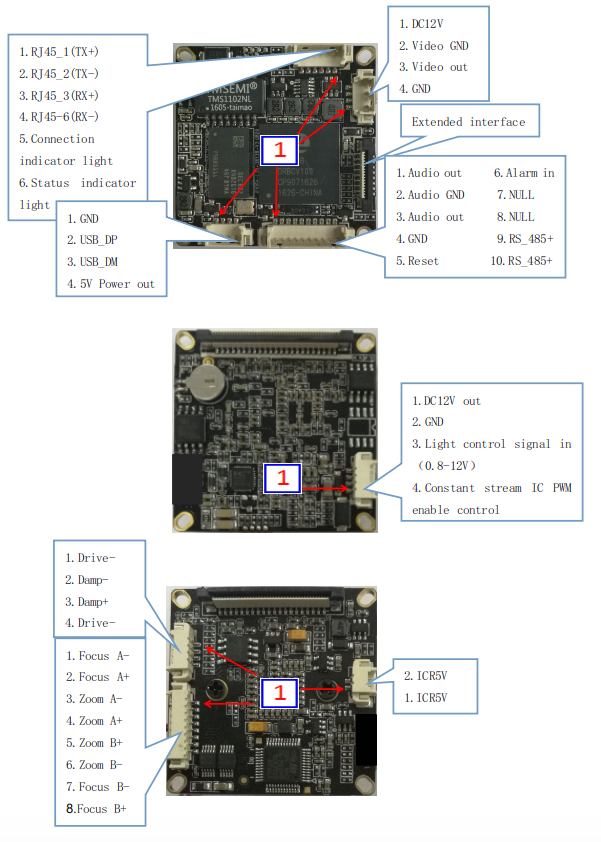

Pin Definition
Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V
1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface
1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
