IP16DV689D-AZ0722

SKU: IP16DV689D-AZ0722

Sensor:

OV4689

Video Coding:

Analog/CVBS, H.264, H.265+, MJPEG

Resolution:

$69.36

Weight: 0.12 kg

Pixel Size:

2.0μm

Description

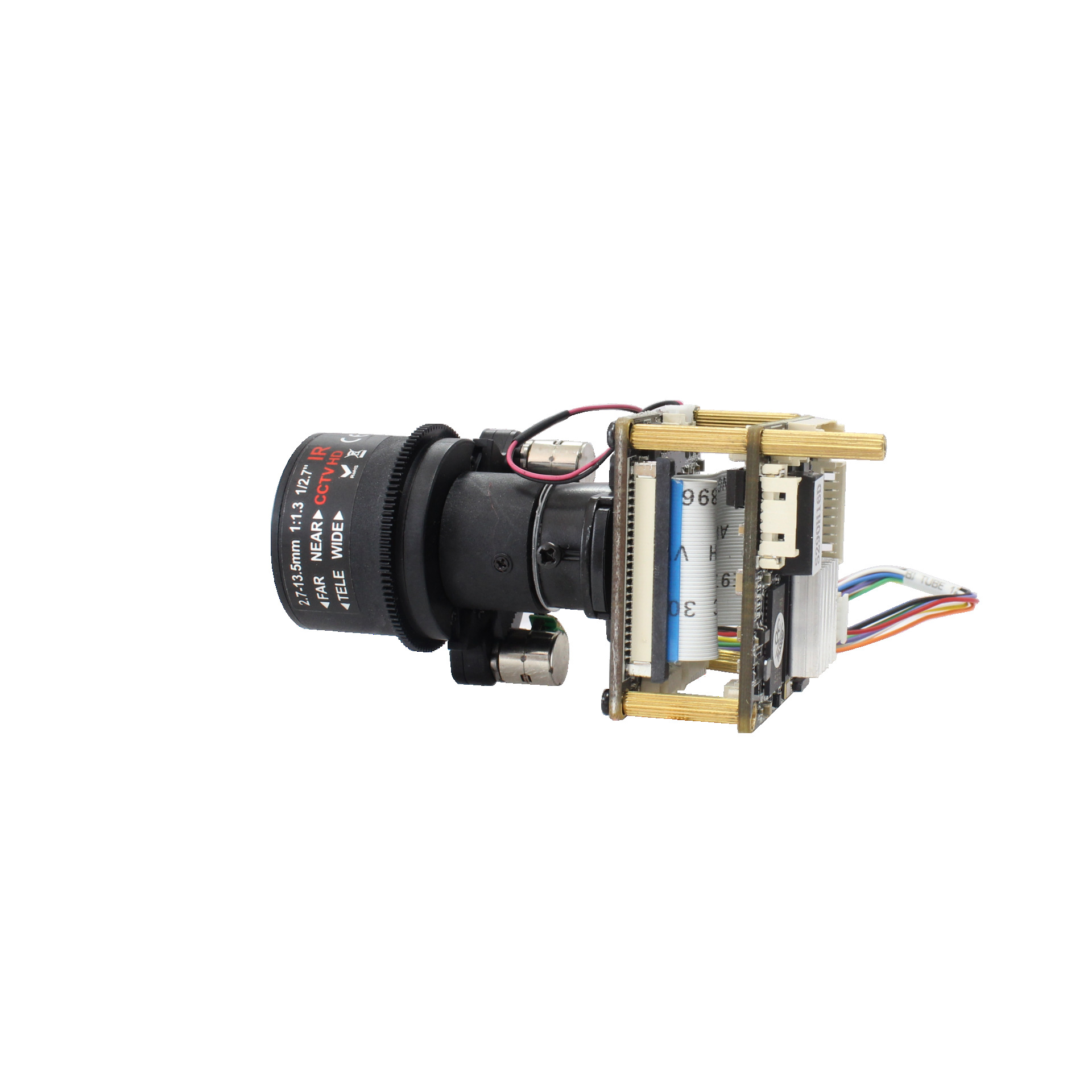

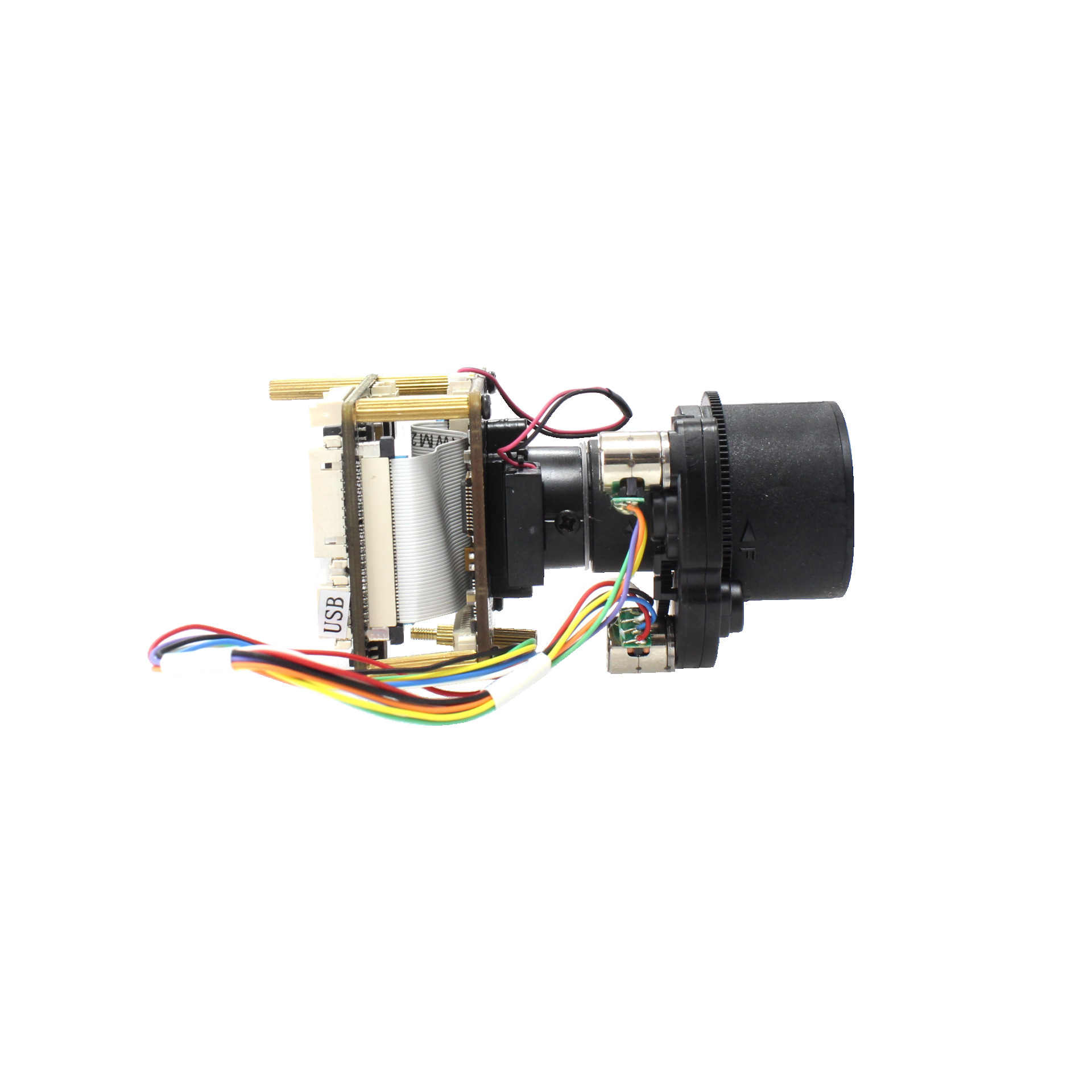

4.0 megapixel 2 Boards IP Camera Module, Hi3516D + OV4689 CMOS
1/3" 4.0 Megapixels Progressive Scan OV4689 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of 2592*1520
0.05 Lux@F1.2 (color), 0.01Lux@F1.2(Black & White)
38x38mm 2 boards
RS485,OptionalMotorized lens, IR - CUT (day/night), adapt Bullet, Dome
H.264 or H.265 video coding, double stream, ONVIF2.4, be compatible many NVR and platform management software.
Hisilicon Hi3516D
1/3" 4.0 Megapixels Progressive Scan OV4689 CMOS
Max 25/30fps@4.0 Megapixels (2592*1520)
H.264/H.265 &amp MJPEG dual-stream encoding
WDR > 80dB
Privacy Mask, Motion Detection
Support Onvif 2.4 protocol

Model	IP16DV689D-AZ0722
Camera
Image Sensor	1/3" 4MP Progressive Scan OV4689 CMOS
CPU	Hisilicon 3516D
Effective Pixels	1920(H)*1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto (1/25 ~ 1/10000s)
Min. Illumination	0.05 Lux@F1.2 (color) 0.01Lux@F1.2(Black&amp White)
S/N Ratio	≥50db(AGC OFF)
Lens Type	3X Optical zoom Lens, 7-22mm
Camera Features
Day/Night	Auto(ICR)/Color/B/W
WDR	> 80dB
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Video
Compression	H.264/MJPEG/H.265
Resolution	1080P(19201080)/ 720P(1280720)/ D1(704576)/ VGA(640480)/ QVGA(320*240)
Main Stream	25921520 (1~25fps) 20481520 (1~25fps) 1920*1080 (1~25/30fps)
Sub Stream	704576, 1-25(30)fps 640480, 1-25(30)fps 640352, 1-25(30)fps 320240, 1-25(30)fps 1D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate	32KB ~16Mbps, support VBR, CBR
Text Overlay	Channel, Date & Time, Bit Rate
Network
Data Storage	Video record, Picture format
Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission	FTP, E-mail, Browser, CMS
Protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Wireless protocol	802.11b/g/n support WEP, WPA, WPA2 encryption protocol
ONVIF	ONVIF 2.4
Browser Access	Support up to IE6.0 (built-in Web Server) browser, max 8 users
Smart Phone	Support iPhone, iPad, Android
Auxiliary Interface
Audio in	1ch MIC/Line in
Audio out	1ch Audio out
BNC Video out	1ch CVBS video out
RS422/RS485	1ch RS485
USB	Support (Optional MT7601 WiFi/128G USB flash)
Alarm in/out	1ch Alarm in
Alarm out	N/A
IO Interface	1ch Reset
General
Power Supply	DC12V 1A/ PoE ( optional 802.3af)
Power Consumption	&lt 3W
Working Environment	-20°C~+55°C , Less than 90% RH
Dimensions	38 x 38 x 20mm
IR-CUT Hole	22mm
Weight	0.15kg

Pin Definition

Dual Board

This product not include cable by default.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)		Depend on color definition of Lens	1.25mm
1	drive-
2	damp-
3	drive+
4	damp+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)		Depend on color definition of Lens	1.25mm
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface		Support powerless microphone and Line in	1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface		Support MT7601 /RT5370 USB wifi module. Support -ET TF card extension board.	1.25mm
1	GND
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out
