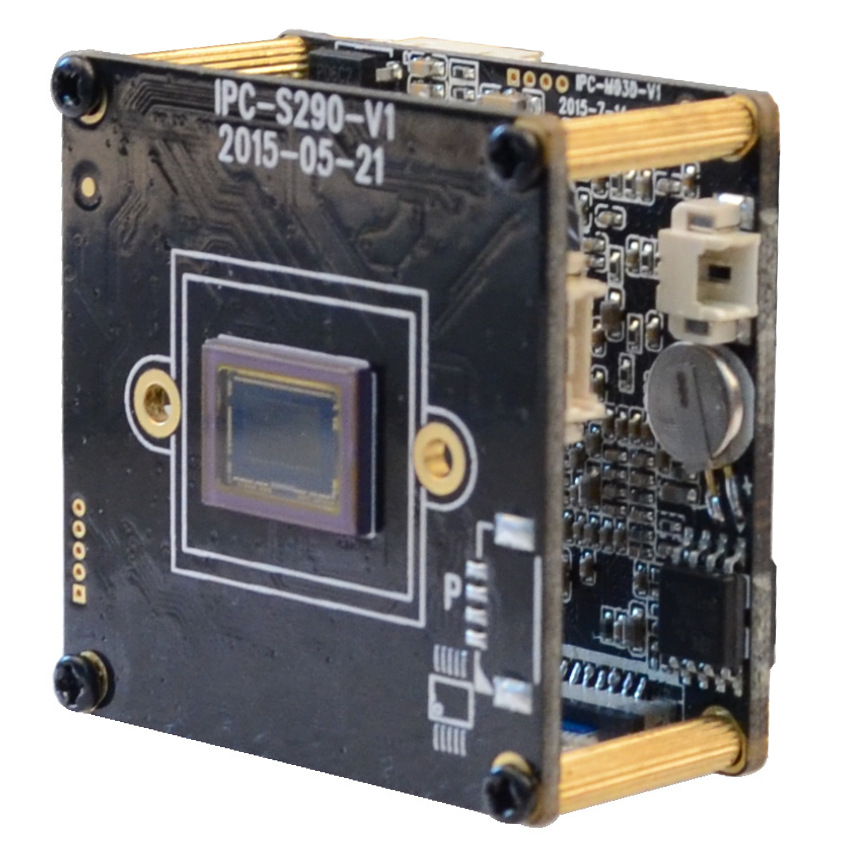

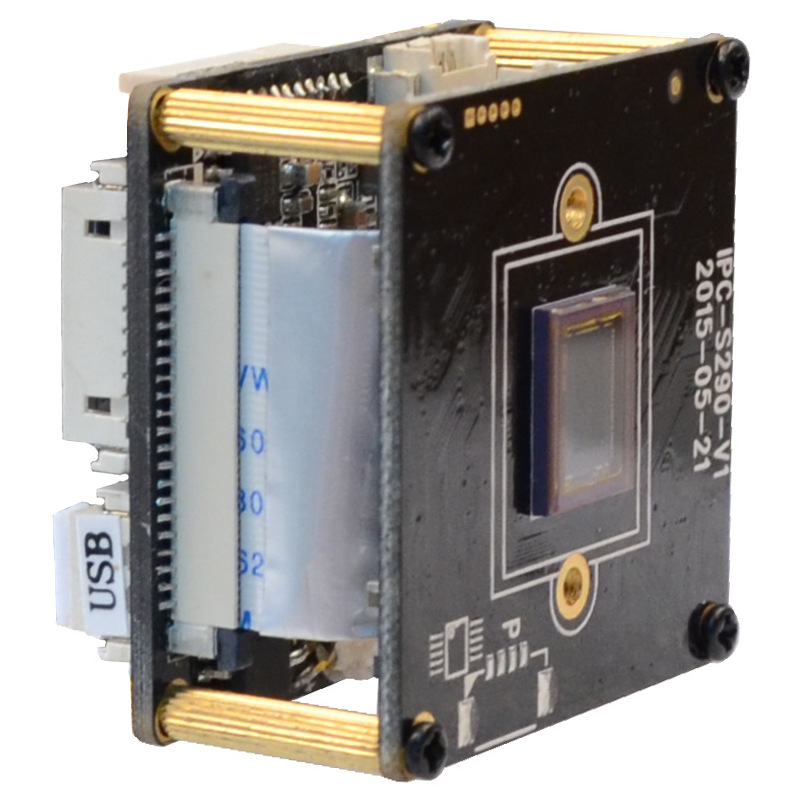

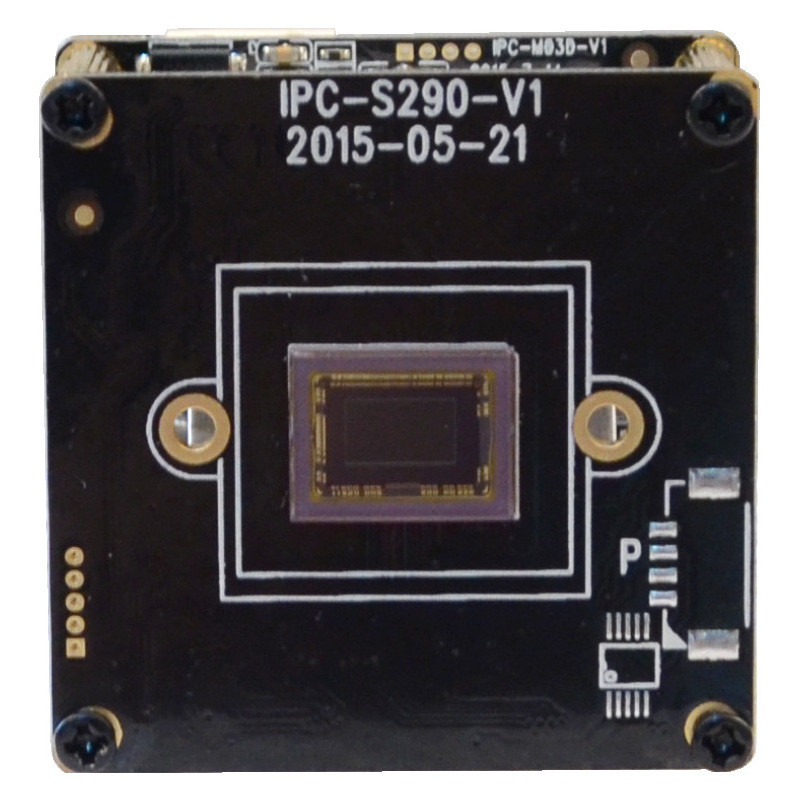

IP16AS291D 1080P 50fps 1/2.8" 2MP Sony IMX291 Hi3516A IP Starlight Security CCTV HD Camera Module board (2MP, IMX291)
Description
IP16A291D 1080P 60fps 1/2.8" 2MP Sony Starvis IMX291 Hi3516A IP Camera Board
1/2.8" Starvis Progressive Scan CMOS Sensor IMX291
Hisilicon latest H.265 SoC Hi3516A
Color0.001Lux@F1.2
Max resolution 2MP(1920*1080)60fps
True WDR 80db,H.265\H.264\MJPEG
Onvif Profile S and Version 2.4
2.0MP IMX291 CMOS Sensor, Dual board size:38mm*38mm
Function:Audio in/out, Alarm in, reset, RS485, CVBS, USB
H.264/H.265 video coding, support dual stream
Max resolution:1920*1080@60FPS, Color:0.001Lux@F1.2,high cost performance,used in the low level of full color environment, as starlight machine.
Model | IP16AS291D(-AI/-AZ) | |
Hardware | ||
CPU | Hi3516A,1/2.8” IMX 291 COMS Sensor | |
Min illumination | Color: 0.001Lux@F1.2 | |
S/N Ratio | ≥50dB(AGC OFF) | |
WDR | D-WDR > 80db | |
Interface | ||
audio/talkback in | 1ch MIC/line in | |
Audio output | 1ch audio out | |
CVBS input | 1ch CVBS output | |
Alarm in/out | 1ch alarm in | |
IO function interface | 1ch reset | |
PTZ interface | 1ch RS485 interface | |
USB interface | 1ch USB interface,support TF card slot (Max 128G) | |
Video encoding | ||
Encoding format | H264,Baseline/Main Profile/High Profile encoding H.265 Main Profile encoding | |
| MJPEG (disabled by default, can enable by Pconfig) | ||
Image resolution | Main stream | 1920*1080,1-25(60)fps/s |
| 1280*720,1-25(60)fps/s | ||
| Sub stream | 704*576,1-25(60)fps/s 640*480,1-25(60)fps/s | |
| 640*352,1-25(60)fps/s 320*240,1-25(60)fps/s | ||
Video compression | 32Kbps-16Mbps,support CBR/VBR | |
OSD setting | support channel name, date and time, stream information superposition, stacking position adjustable | |
Data transmission and storage | ||
Data storage | Video, Image file | |
Storage mechanism | Manual, auto(cycling, timing, alarm on/ off,motion detection) | |
Alarm data trans | FTP, E-mail, browser, management software | |
Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP | |
Wireless protocol | 802.11b/g/n, support WEP, WPA, WPA2 encryption protocol | |
ONVIF | ONVIF2.4 | |
Client browsing | Support up to IE6.0 (built-in Web Server) browser, max 8 users | |
Client APP | Support iPhone, iPad, Android | |
General | ||
Power supply | DC12V 1A/POE(POE optional) | |
Power device | 3W(MAX) | |
Device size | 38(L) * 38(W) *20(H)mm(without lens) | |
IR-CUT hole | 22mm | |
Device weight | 0.15kg | |
JP1 Power interface | |
| 1 | DC12V |
| 2 | Video GND |
| 3 | CVBS output |
| 4 | GND |
JE1 Network interface | |
| 1 | RJ45_1 (TX+) |
| 2 | RJ45_2 (TX-) |
| 3 | RJ45_3 (RX+) |
| 4 | RJ45_6 (RX-) |
| 5 | Network connection indicator light(green light) |
| 6 | Network status indicator light(yellow light) |
Sensor board J1 IR-cut interface | |
| 1 | IR-CUT control signal 5V- |
| 2 | IR-CUT control signal 5V+ |
Sensor board J2 DC auto iris interface(Optional Support automatic aperture model:-AI) | |
| 1 | driver- |
| 2 | damping- |
| 3 | driver+ |
| 4 | damping+ |
Sensor board J3 Power lens interface(Optional Support Electric lens model:-AZ) | |
| 1 | Focus A- |
| 2 | Focus A+ |
| 3 | Zoom A- |
| 4 | Zoom A+ |
| 5 | Zoom B+ |
| 6 | Zoom B- |
| 7 | Focus B- |
| 8 | Focus B+ |
Sensor board J4 No definition | |
J5 Infrared Light board interface | |
| 1 | Infrared Light board12V power output |
| 2 | GND |
| 3 | Infrared feedback signal in(0.8V-12V) |
| 4 | Infrared Light enable control |
J6 Function interface | |
| 1 | Audio in |
| 2 | Audio GND |
| 3 | Audio out |
| 4 | GND |
| 5 | Reset, restore factory setting |
| 6 | Alarm in 1, low level effective |
| 7 | Alarm in 2(reserve),low level effective |
| 8 | Alarm out control GPO,3.3V level signal |
| 9 | RS_485+ |
| 10 | RS_485- |
JU1 USB interface | |
| 1 | GND |
| 2 | USB_DP |
| 3 | USB_DM |
| 4 | 5Vpower out |
J7 Expansion board | |
| 1 | USB_DP |
| 2 | USB_DM |
| 3 | System |
| 4 | SDIO Work Clock |
| 5 | SDIO Data 3 |
| 6 | SDIO Data 2 |
| 7 | SDIO Data 1 |
| 8 | SDIO Data 0 |
| 9 | System |
| 10 | SDIO Order |
| 11 | SDIO Power Enable Control Signal |
| 12 | SDIO Card Test Signal |
| 13 | SDIO Pull-in Resistor Power out |
| 14 | Alarm in control GPO |
| 15 | System |
| 16 | DC5V Power out |
Pin Definition
Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V
1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface
1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
