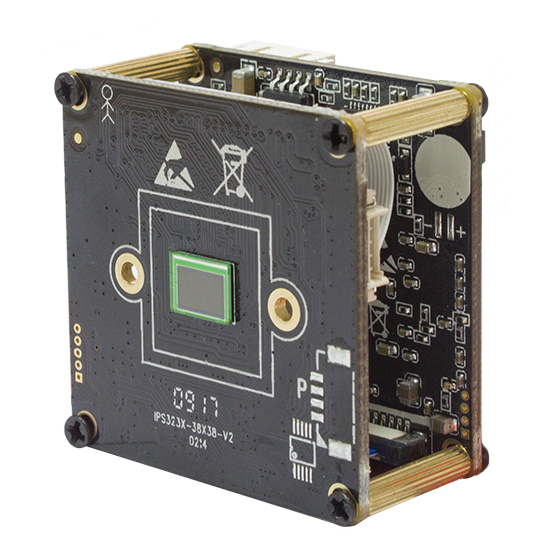

IP16DS323D 2MP 1080P SONY IMX323 Hisilicon Hi3516CV300 H.265 CVBS Dual Board IP Network camera board

IP16DS323D 2MP 1080P SONY IMX323 Hisilicon Hi3516CV300 H.265 CVBS Dual Board IP Network camera board

SKU: IP16XS323D

Sensor:

Video Coding:

Hole Distance:

Resolution:

$35.61

Weight: 0.05 kg

Pixel Size:

Description

IP16XS323D 2MP 1080P SONY IMX323 Hisilicon Hi3516CV300 H.265 CVBS Dual Board IP Network camera board

  • 1/2.9" IMX323 Low illumination CMOS sensor

  • Hi3516CV300, standard board size:38mm*38mm

  • support Day&Night switch(optional IR-CUT) infrared sensor, Support LDR signal linkage, apply to common Box, Bullet, dome and etc housing

  • H.264 video coding, support dual streaming, Max resolution:1920*1080, Color 0.1Lux@F1.2,D&N 0.01 Lux@F1.2

  • Support onvif 2.4protocol, Support compatible with most oversea and local platform software manager system

Model NoIP16XS323D (2MP)
Hardware
Chipset

HI3516CV300 1/2.9" CMOS IMX323

Min illuminationColor 0.1Lux@F1.2  B&W 0.01Lux@F1.2
SNR>50db(AGC OFF)
WDRDWDR >80db
Interface
audio/talk input1CH audio MIC input/line input
audio output1CH line output
Analog video outputSupport
Storage Card interfaceOptional via USB port
IO interface1CH reset
USB interface

1x USB interface

support TF Card Storage expansion(max 128G)
support MT7601 WiFi module board

video coding
Coding formatH.265/H.264 Baseline, Main Profile, High Profile coding
MJPEG coding


Main steaming

1920*1080, 1-25(30)frame/s 1280*720, 1-25(30)frame/s

Sub-steaming

704*576, 1-25(30)frame/s 640*480, 1-25(30)frame/s
640*352, 1-25(30)frame/s 320*240, 1-25(30)frame/s
video compression rate32Kbps-16Mbps continuous adjusting, support CBR/VBR
Subtitles overlaysupport channel name, date time, streaming info overlay,overlay position able to adjust
Data transmission &Storage
Data Storagevideo, image file
Storage mechanismManual, auto(circulation, time, alarming switch volume,motion detection)
Alarm Data TransmissionFTP, E-mail,browser, manage software
Support ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF ProtocolStandard onvif 2.4 Protocol
Client browseSupport IE6.0 and above(embedded Web Server in device)browse by browser，support 10users to access simultaneously(MAX)
Mobile clientSupport iPhone, iPad, Android
General specification
Power supplyDC12V/POE(external connection POE module)
Device power2W(MAX)
Device dimension38(long ) * 38(wide ) *15(high)mm(without lens)
IR-CUT pitch of holes22mm
Device weight0.07kg
JP4 Power interface
1DC12V
2CVBS GND
3CVBS Video (704*576)
4GND
J6 Network interface
1RJ45_1 (TX+)
2RJ45_2 (TX-)
3RJ45_3 (RX+)
4RJ45_6 (RX-)
5Network connection indicator light（green light）
6Network status indicator light（yellow light）
J1 IR-CUT interface
1IR-CUT control signal 12V
2IR-CUT control signal 12V
J3 IR board interface
1IR Board 12V power supply output
2GND
3IR return signal input(Rang:0.8V-12V)
4IR enable control
J2 Function interface
1audio input
2audio GND
3audio output
4Reset
5GND
6USB_DP
7USB_DM
85V output
9Alarm output controlling GPIO
10Alarm input GPIO


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out

Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP16XS323D
Resolution:
2MP 1080P
Sensor:
IMX323
