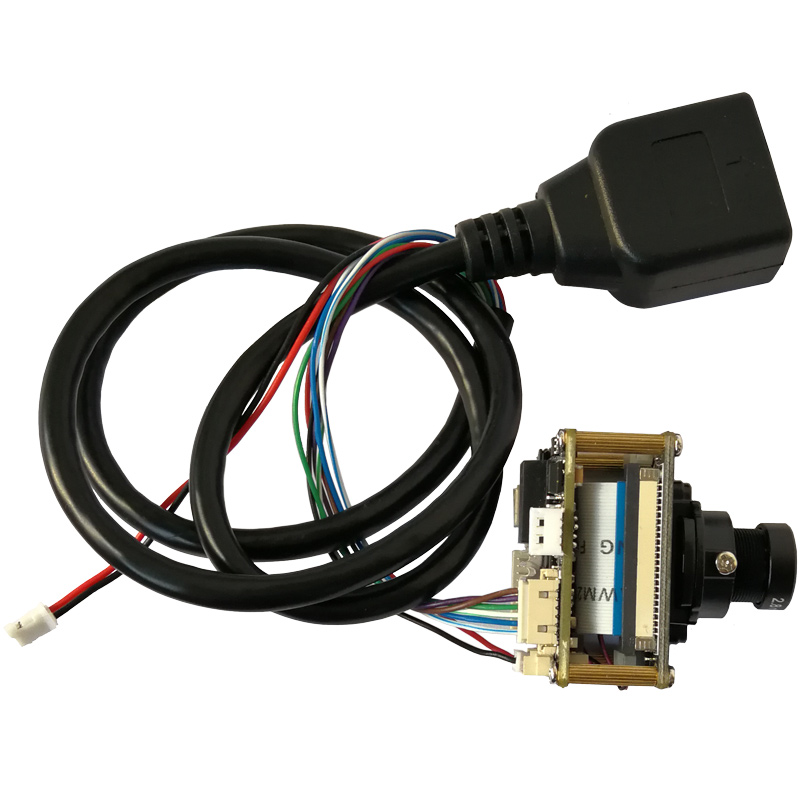

IP16DS327DK 2MP starlight SONY IMX327 Dual Board IP Network camera Module

SKU: IP16DS327DK-CBN-L3.6

$102.50

Weight: 0.05 kg

2 megapixel low-light 2 Boards IP Camera Module, Hi3516D + SONY IMX327 CMOS
1/2.8" 2 Megapixels Progressive Scan Sony IMX327 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of 1920*1080, 0.001 Lux@F1.2 (color)
38X38mm 2 boards
RS485,Optional Motorized lens, IR -CUT (day/night), adapt Bullet, Dome
H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatiblemany NVR and platform management software.
Hisilicon Hi3516D
1/2.8" 2 Megapixels Progressive Scan Sony IMX290 CMOS
H.264/H.265 & MJPEG dual-stream encoding
Privacy Mask, Motion Detection
Support Onvif 2.4 protocol
WDR>80db

Model	IP16DS327DK
Camera
Image Sensor	1/2.8" 2 megapixels Progressive Sony IMX327 CMOS
CPU	Hisilicon 3516D
Effective Pixels	1920(H)*1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto (1/25 ~ 1/10000s)
Min. Illumination	0.001Lux/F1.2 (Color)
S/N Ratio	≥50db(AGC OFF)
Camera Features
Day/Night	Auto(ICR)/Color/B&W
WDR	>80dB
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Video
Compression	H.265+/H.265/H.264/MJPEG
Resolution	1080P(19201080) / D1(704576) / VGA(640480) / QVGA(320240)
Main Stream	19201080 / 720P(1280720) (1 ~ 25/30fps)
Sub Stream	D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate	32KB ~16Mbps, support VBR, CBR
Text Overlay	Channel, Date & Time, Bit Rate
Network
Data Storage	Video record, Picture format
Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission	FTP, E-mail, Browser, CMS
Protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF	ONVIF 2.4
Max. User Access	8 users, IE, Google, Firefox
Smart Phone	Windows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio in	Support
Audio out	Support
BNC Video out	Support
RS485	Support
USB	Support (128G USB flash with Extension Board ET9/ET9A)
Alarm in	Support (Optional with Extension Board ET9/ET9A)
Alarm out	N/A
IO Interface	Support
General
Power Supply	DC12V / PoE (802.3af)
Power Consumption	< 2W
Working Environment	-20°C~+55°C, Less than 90% RH
Dimensions	38 x 38 x 40mm
Weight	0.12kg

Dual Board

This product not include cable by default.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)		Depend on color definition of Lens	1.25mm
1	drive-
2	damp-
3	drive+
4	damp+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)		Depend on color definition of Lens	1.25mm
1	Focus A-
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface		Support powerless microphone and Line in	1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface		Support MT7601 /RT5370 USB wifi module. Support -ET TF card extension board.	1.25mm
1	GND
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out
