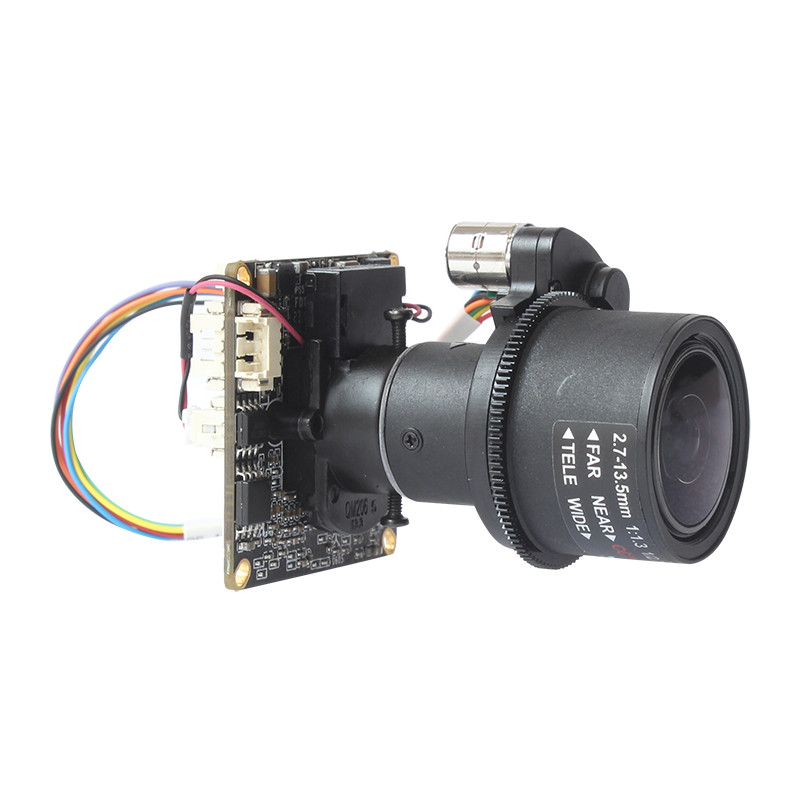

IP16AV510-AZ27135 1/2.5" 5MP OS05A10 realtime 30fps IP camera module board 2.7-13.5mm auto zoom lens

IP16AV510-AZ27135 1/2.5" 5MP OS05A10 realtime 30fps IP camera module board 2.7-13.5mm auto zoom lens

SKU: IP16AV510-AZ27135

Sensor:

Video Coding:

Hole Distance:

Resolution:

$94.00

Weight: 0.09 kg

Description

  • H.265 video compressing, high compression, stream control accurate, stable, support dual stream

  • 1/2.7" OS5A10 CMOS Sensor, 5MP

  • 5X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods

  • support dual stream

  • Support network disconnect, motion detection, Video masking, intelligent out off focus alarm

  • Smart coding

  • Up to 4 ROI area,

  • abundant network protocol

  • D-WDR, 3D noise reduction

  • ONVIF2.4, GBT28181

  • Support photoresistor signal linkage ，This board use for box camera, bullet camera, Infrared dome camera；

ModelIP16AV510-AZ27135
IP camera

Image sensor

1/2.7 inch  5MP OS05A10

DSP

Hi3516A

Effective pixels

2592(H)x 1944(V)

Scan system

progressive

Electronic shutter

1/25s~1/10000s  Auto

Min illuminator

Color: 0.6Lux@F1.2  Black & White: 0.08 Lux@F1.2

S/N Ratio

≥50dB(AGC OFF)

IR Cut mode

ICR Switch

WDR

> 80dB (D-WDR)

Noise reduction

3D

Video masking

Up to 4 area

Lens type

5X automatic zoom lens, 2.7-13.5mm 6MP

Video

Coding

H.265/H.264/MJPEG

Video resolution

Main stream

2592x1944/2048x1536/1018P(192.x1080)

Sub stream

D1(704x576)/VGA(640x480)/QVGA(640x360)/CIF(352x288)

Video frame

1 ~ 25fps (50HZ)   1 ~ 30fps (60HZ)

Video bit ratio

32KB ~ 16Mbps ( CBR/VBR)

Audio Coding

ACC, G711U, G711A

OSD Setting

channel name, date and time, stream information superposition, stacking position adjustable

Data transmission and storage

Data storage

Video, Image file

Storage

Manual , auto(cycling, timing, alarm on/off, motion detection)

Alarm data trans

FTP, E-mail, browser, manage software

Protocol


TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

ONVIF

ONVIF2.42

Client user

IE6.0 and above (built-in Web Server)browser,
Up to 8 user at same time

Smart phone

iphone, ipap, Android

Smart Function

Smart Coding

Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area

Smart detection

Support intelligent masking detection ,intelligent out off focus detection

Smart control

Support smart control alarm open, alarm shut, fault clear, smart noise reduction

General parameter

Power

DC 12V/1A (Not include)

Consumption

3W(MAX)

Temperature, humidity

-10°C~55°C,20-90%RH

Size

38x38x68mm

Pin Definition

  • Single Board H.265 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2Video GND
    3CVBS Signal Out
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in


Shipping

Shipping fee table:

-+

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.

Specification

SKU:
IP16AV510-AZ27135
Resolution:
5MP
Sensor:
OS05A10
