IP16AV510 1/2.7" 5MP OS05A10 Hi3516A single PCB IP Camera Module Board (5MP, OS05A10)

IP16AV510 1/2.7" 5MP OS05A10 Hi3516A single PCB IP Camera Module Board (5MP, OS05A10)

SKU: IP16AV510

Sensor:

Video Coding:

Hole Distance:

Resolution:

$53.02

Weight: 0.03 kg

Description

  • 5.0 megapixel single Board IP Camera Module, Hi3516A + OS05A10

  • 1/2.7" 5.0 Megapixels Progressive Scan OS05A10 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of2592*1944, 0.6 Lux@F1.2 (color)

  • 0.08 Lux@F1.2 (black and white )

  • 38X38mm board

  • Support IR - CUT(day/night), adapt Bullet, Dome

  • H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.

  • Hisilicon Hi3516A

  • Max 10fps@5.0 Megapixels (2592*1944), 25/30fps@3MP (2048*1536)

  • H.264/H.265 &amp  MJPEG dual-stream encoding

  • 3D DNR

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol

Model

IP16AV510 (5MP)

Camera

Image Sensor

1/2.7" 5.0 megapixels Progressive OS05A10 CMOS

CPU

Hisilicon 3516A

Effective Pixels

2560(H)*1920(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto (1/25 ~ 1/10000s)

Min. Illumination

0. 6Lux/F1.2 (Color), 0.08Lux/F1.2(B/W)

S/N Ratio

≥50db(AGC OFF)

Camera Features

Day/Night

Auto(ICR)/Color/B/W

WDR

&gt 80dB

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Video

Compression

H.265 Main Profile coding H264,Baseline/Main Profile/High Profile coding

MJPEG Coding (Up to 3MP Non-support coding)

Resolution

2592*1944 / 2592*1520 / 2048*1520 / 1080P(1920×1080) / D1(704×576) / VGA(640*480) / QVGA(320×240)


Main Stream

2592*1944, 1-25(30)fps  2048*1536, 1-25(30)fps  1080P 1-25(30)fps

Sub Stream

D1/VGA/QVGA(1 ~ 25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Text Overlay

Channel, Date &amp  Time, Bit Rate

Network

Data Storage

Video record, Picture format

Trigger

Manual, Automatic(timing, motion detection, alarm, schedule, cycle )

Alarm data transmission

FTP, E-mail, Browser, CMS

Protocol

TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

ONVIF

ONVIF 2.4

Max. User Access

8 users, IE, Google, Firefox

Smart Phone

Windows Mobile, iPhone, iPad, Android

Auxiliary Interface

Audio in

1ch MIC in/ Line in

Audio out

1ch audio out

BNC Video out

Support 1ch CVBS output (D1 704x576)

RS422/RS485

Support

USB

1ch USB, Support (Max 128GB USB flash)

Alarm in

Support

Alarm out

N/A

IO Interface

1ch Reset

General

Power Supply

DC12V / PoE (802.3af, need extra PoE Module)

Power Consumption

&lt  3W

Working Environment

-20°C~+55°C , Less than 90% RH

Dimensions

38 x 38 x 10mm (without lens)

Weight

0.1kg

JP1 Power Supply Connector

1

DC12V

2

CVBS GND

3

CVBS Signal Out

4

GND

JE1 Network Connector

1

RJ45_1

2

RJ45_2

3

RJ45_3

4

RJ45_6

5

Network Connected Light (Green light)

6

Network Status Light (Yellow light)

J1 IR-CUT Connector

1

IR-CUT Control Signal 12V-

2

IR-CUT Control Signal 12V+

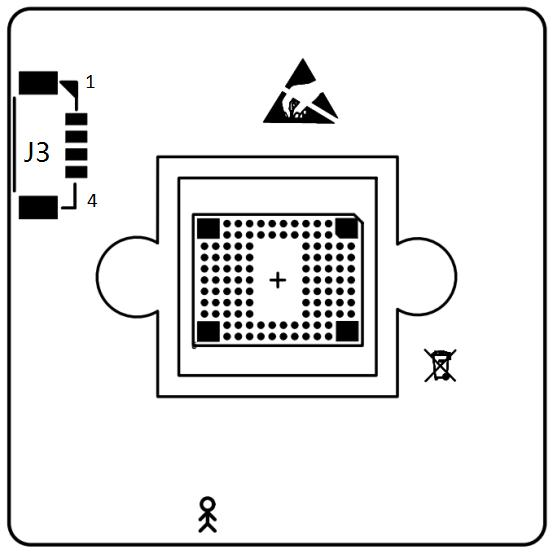

J3 IR Light Board Connector

1

IR Light Board Power Supply (12V)

2

GND

3

IR Feedback Signal Input (0.8V-12V)

4

IR PWM Control

J2 Functions Connector

1

Audio In (MIC/ Line )

2

GND (Audio)

3

Audio Output

4

Reset

5

GND

6

USB_DP

7

USB_DM

8

5V poweer Output

9

Alarm Output Control GPO(3.3V)

10

Alarm Input (Low Level)

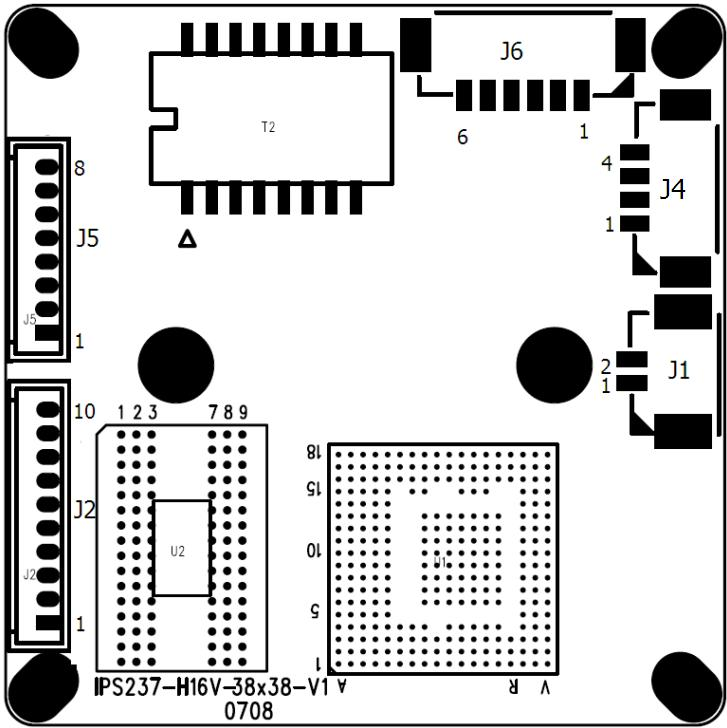

Pin Definition

  • Single Board H.265 Full function



    No.Pin DefinationPitchPreview
    JP4 Power interface1.25mmimage.png
    1DC12V
    2Video GND
    3CVBS Signal Out
    4GND
    J6 Network interface1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connector light(Green)
    6Network status light(Yellow)
    J1 IR-cut interface1.25mm

    1IR-CUT control signal 12V-
    2IR-CUT control signal 12V+
    J3 LED Board interface1.25mm

    1LED board 12V power out
    2GND
    3LED feedback signal (0.8V-12V)
    4Infrared light enable control
    J2 Function interface1.25mm

    1Audio in
    2Audio GND
    3Audio out
    4Reset
    5GND
    6USB_DP
    7USB_DM
    85V power out
    9alarm out I/O(3.3V Level signal)
    10Alarm in
