IP16D4689-D26 (OV4689, 4MP)

IP16D4689-D26 (OV4689, 4MP)

SKU: IP16DV689D

Sensor:

Video Coding:

Resolution:

$41.47

Weight: 0.09 kg

Pixel Size:

Description

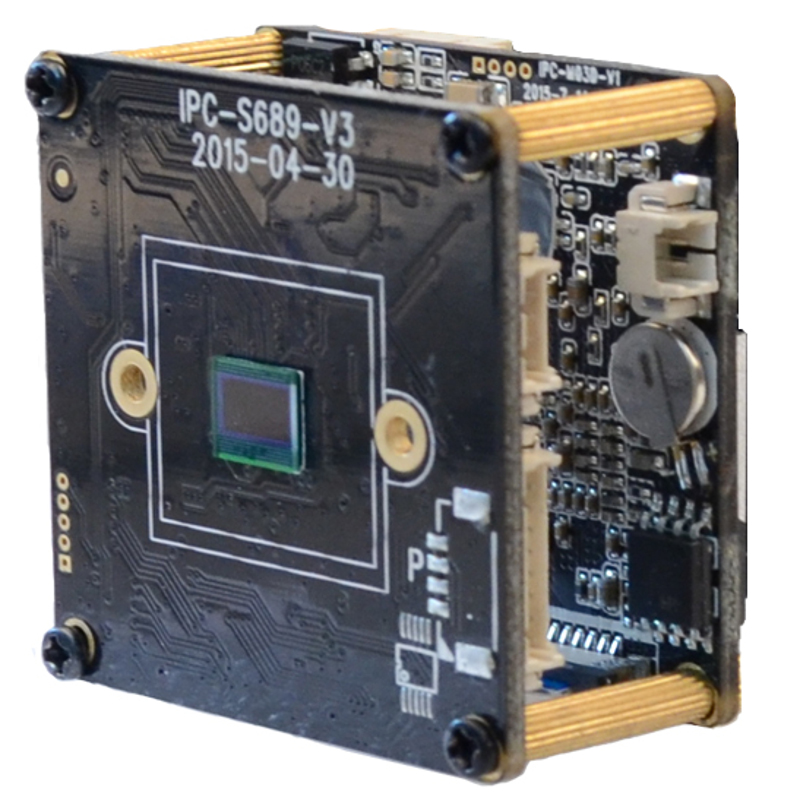

  • 4.0 megapixel 2 Boards IP Camera Module, Hi3516D + OV4689

  • 1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of2592*1520, 0.05 Lux@F1.2 (color)

  • 0.08 Lux@F1.2 (black and white )

  • 38x38mm 2 boards

  • RS485,IR - CUT(day/night), adapt Bullet, Dome Camera

  • H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.

  • Hisilicon Hi3516D

  • Max 25/30fps@4.0 Megapixels (2592*1520)

  • H.264/H.265 & MJPEG dual-stream encoding

  • 3D DNR

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol

  • Support Auto Iris Lens with -AI extension Board (optional)

  • Support Auto Zoom Lens with -AZ extension Board (optional)


Model

IP16DV689D(-AI/AZ)

Hardware

CPU

Hi3516D, 1/3" OV4689 COMS Sensor

Min illumination

Color: 0.6Lux@F1.2 Black and white: 0.08Lux@F1.2

S/N Ratio

≥50dB(AGC OFF)

WDR Range

D-WDR > 80db

Interface

audio/talkback in

1ch MIC/line in

Audio output

1ch audio out

CVBS input

1ch CVBS output

Alarm in/out

1ch alarm in

IO function interface

1ch reset

Interface

1 ch RS485 interface

USB interface

1ch USB interface, support TF card slot (Max 128G)

Video  encoding

Encoding format

H264,Baseline/Main Profile/High Profile encoding H.265 Main Profile encoding

MJPEG

Image resolution

Main stream

2592*1520, 1-25fps

2048*1520, 1-25fps

1920*1080, 1-25fps

Sub stream

704*576, 1-25(30)fps 640*480,1-25(30)fps

640*352, 1-25(30)fps 320*240,1-25(30)fps

Video compression

32Kbps-16Mbps, support CBR/VBR

OSD setting

support channel name, date and time, stream information superposition, stacking position adjustable

Data transmission and storage

Data storage

Video, Image file

Storage mechanism

Manual, auto(cycling, timing, alarm on/ off,motion detection)

Alarm data trans

FTP, E-mail, browser, management software

Protocol

TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

Wireless protocol

802.11b/g/n, support WEP, WPA, WPA2 encryption protocol

ONVIF

ONVIF2.4

Client browsing

Support up to IE6.0 (built-in Web Server) browser, max 8 users

Client APP

Support iPhone, iPad, Android

General Info

Power supply

DC12V 1A/POE(POE optional)

Power device

3W(MAX)

Device size

38(L) * 38(W) *20(H)mm(without lens)

IR-CUT hole site

22mm

Device weight

0.15kg


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
