IP35S307-AZ27135 1/2.8" SONY Starlight IMX307 SSC335 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265 2.7-13.5mm motorized lens
Description
Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (2MP)
2. H.264/H.265/H.265+ video compression standard, G.711/G711A/AAC audio compression standard
3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4.
Two-way audio real-time transmission on the Internet, the video frame
rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ
21. 2.7-13.5mm motorized zoom lens
| model | ES335S307-AZ27135 |
| SOC | SigmaStar SSC335 buildin 64MB RAM |
| Image sensor | 1/2.8" 2MP Sony IMX307 |
| Minimum illumination | Color 0.01 Lux |
| SNR | >=50dB |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR,
support WDR, support anti-face overexposing, support defog function,
H.264/H.265/H.265+ coding format, achieve ultra-low storage, code
rate/frame rate adjustable, manual adjustable shutter |
| Image resolution | Main stream: 3MP@25 FPS, 1080P / 960P / 720P /D1 @30fps sub stream: D1 / VGA / 640*360 / CIF @30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711U/G711A encoding, support two-way voice intercom |
| Network interface | RJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Not available |
| IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program |
| LED Board interface | Support active mode and passive mode, need compatible light board to work together |
| IRCUT interface | Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
| Conventional parameters | DC12V/POE, 1.5W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.06kg |
| Working temperature | -30~70°C |
| Parameter of Lens | |||||||
| Pixel | 5MP(8MP optional) | ||||||
| Image Format | 1/2.7″ | ||||||
| Focal Length | 2.7-12mm | ||||||
| Aperture | F1.3 | ||||||
| Mount | Φ14 | ||||||
| Field Angle DxHxV(°) | 1/2.7" | 138.2°-36° / 113°-31.4° / 58.4°-17.6° | |||||
| 1/2.8" | 130.9°-34.8° / 108.1° - 30.3° / 56.3°-17.1° | ||||||
| M.O.D | 0.8m | ||||||
| Dimension | Φ28x52.38mm | ||||||
| Weight | / | ||||||
| Back Focal Length | 5.6mm | ||||||
| Optical Distoration | |||||||
| Operation | Iris | Auto | |||||
| Focus | Auto | ||||||
| Zoom | Motorized | ||||||
| Operating temperature | -20°C~+60°C | ||||||

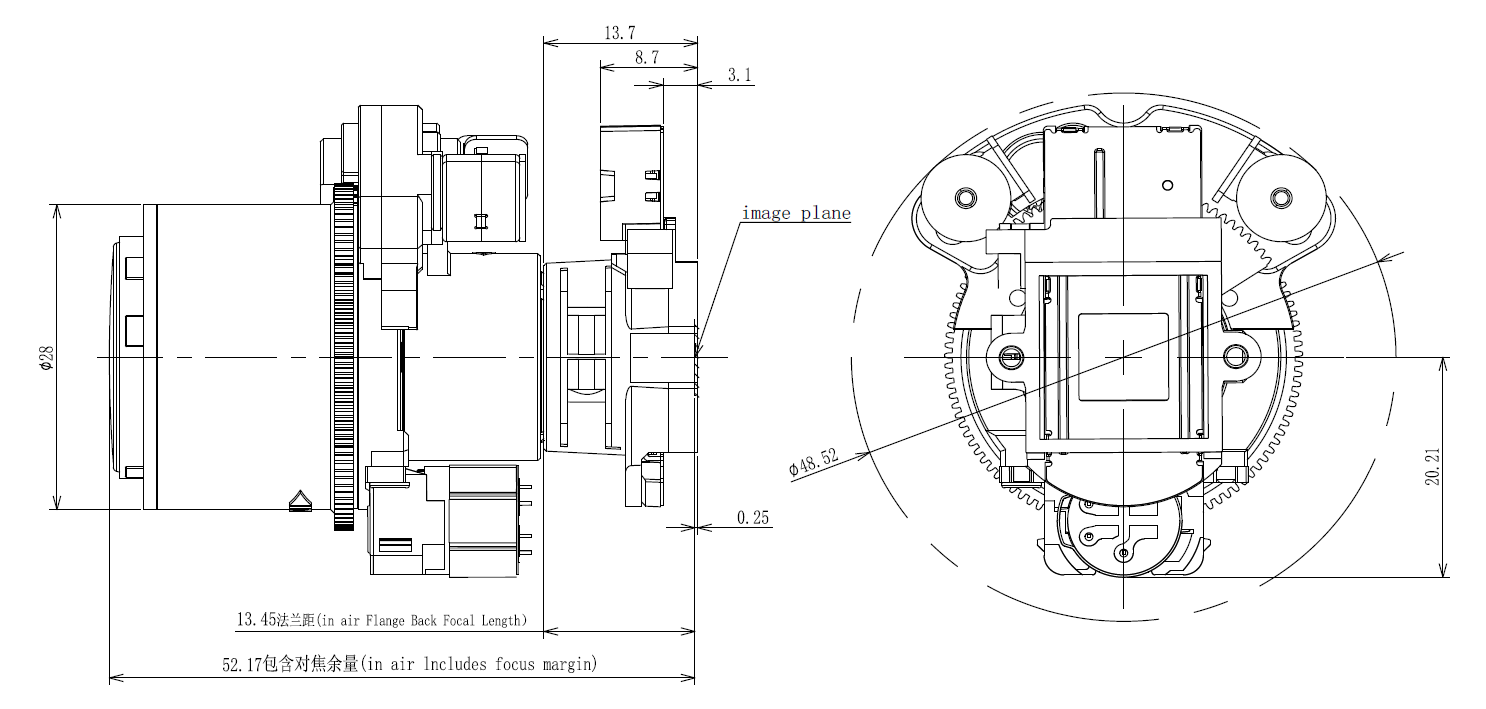

| Size | |||||||
 | |||||||
| Sizetolerance(mm): | 0-10±0.05 | 10-30±0.10 | 30-120±0.20 | ||||
| Angle tolerance | ±2° | ||||||
Please access the web page by IE browser.
Default IP Address: 192.168.0.123
username: admin
password: 123456
Please contact us for more info.
Pin Definition
IP37S307
No. Pin Defination Description Pitch Preview J1 Power & Ethernet interface 1.25mm 1 DC12V Power DC 12V input 2 GND Power GND 3 RJ45_6 4 RJ45_3 5 RJ45_2 6 RJ45_1 7 LED+ Network status 8 LED+ Network status J2 Network interface 1.25mm 1 RESET reserved 2 GND GND 3 UART_TX AF auto focus lens 4 UART_RX NC 5 UART1_TX reserved 6 UART1_RX reserved 7 IO_IN IO amplifier control J3 Audio interface 1.25mm 1 Audio_Out 2 Audio_In 3 GND J4 IR-cut interface 1.25mm 1 IR-CUT 2 IR-CUT J5 LED Board interface 1.25mm 1 CDS_IN 2 GND 3 DC 12V OUT 4 GND 5 IO_IN Software IR light 6 IO_OUT Software warm light
