IP19VS334D-L5 8MP realtime Sony IMX334 Hi3519V101 Dual Board 5mm Lens IP Network camera board

IP19VS334D-L5 8MP realtime Sony IMX334 Hi3519V101 Dual Board 5mm Lens IP Network camera board

SKU: IP19VS334DK-L5

Sensor:

Video Coding:

Resolution:

$172.00

Weight: 0.12 kg

Pixel Size:

Description

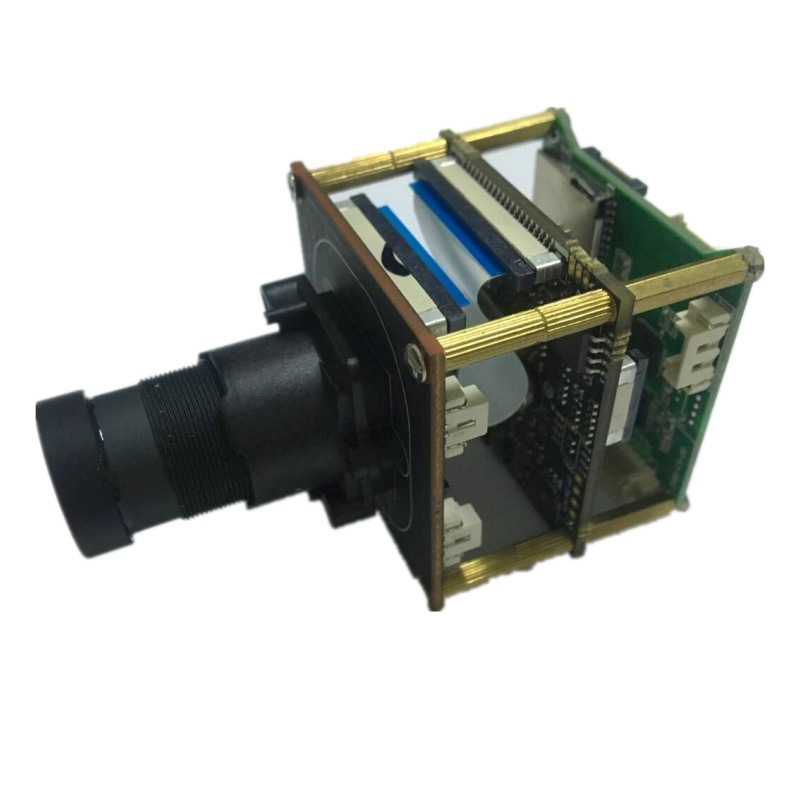

IP19VS334D-L5 8MP realtime Sony IMX334 Hi3519V101 Dual Board 5mm Lens IP Network camera board

  • 8MP 2 Boards IP Camera Module, Hi3519V101 + IMX334 CMOS

  • 1/1.8" 8MP Progressive Scan Sony IMX334 CMOS sensor, Hisilicon Hi3519V101 Chipset, the highestresolution of 3840*2160, 0.005 Lux@F1.2 (color),  0.001 Lux@F1.2 (White & black)

  • 38X38mm 2 boards

  • RS485, IR -CUT (day/night), adapt Bullet, Dome camera

  • H.264, H.265, MJPEG video coding, Three video stream, ONVIF profileS, be compatiblemany NVR and platform management software.

  • Hisilicon Hi3519V101

  • Max 8 Megapixels (3840*2160) 30fps

  • Privacy Mask, Motion Detection

ModelIP19VS334DK-L5
Camera
Image Sensor1/1.8" 8MP Progressive IMX334 CMOS
CPUHisilicon Hi3519V101
Effective Pixels3840(H)*2160(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)
Min. Illumination

Color: 0.005Lux@F1.2
Black & White: 0.001Lux@F1.2

S/N Ratio56dB(AGC OFF)
LensM12 5mm focal llength
Camera Features
Day/NightPhotosensitive detection / video detection / time detection
WDR>80dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D DNR
Privacy MaskingUp to 4 areas
Video
CompressionH.265/H.264/MJPEG
Max Resolution3840*2160
Main Stream

3840*2160 @25/30fps

Sub Stream 720P(1280*720) / D1(704*576)@25/30fps
Third StreamD1(704*576) / 352*288 @25/30fps
Bit Rate16KB ~20Mbps, support VBR, CBR
Text OverlaySupport
Network
Ethernet10/100Mbps auto adjust adapter
ProtocolTCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF ProfileS
WiFiOptional
GB/T28181Support
CGISupport
Auxiliary Interface
RS485Support
Extension storageSupport (128G TF card storage with Extension Board)
Alarm in / outSupport (Optional with Extension Board)
ResetSupport
General
Power SupplyDC12V / PoE (802.3af)
Power Consumption< 3W
Working Environment-20°C~+60°C, Less than 90% RH
Dimensions38 x 38 x 20mm
Weight0.12kg


Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
