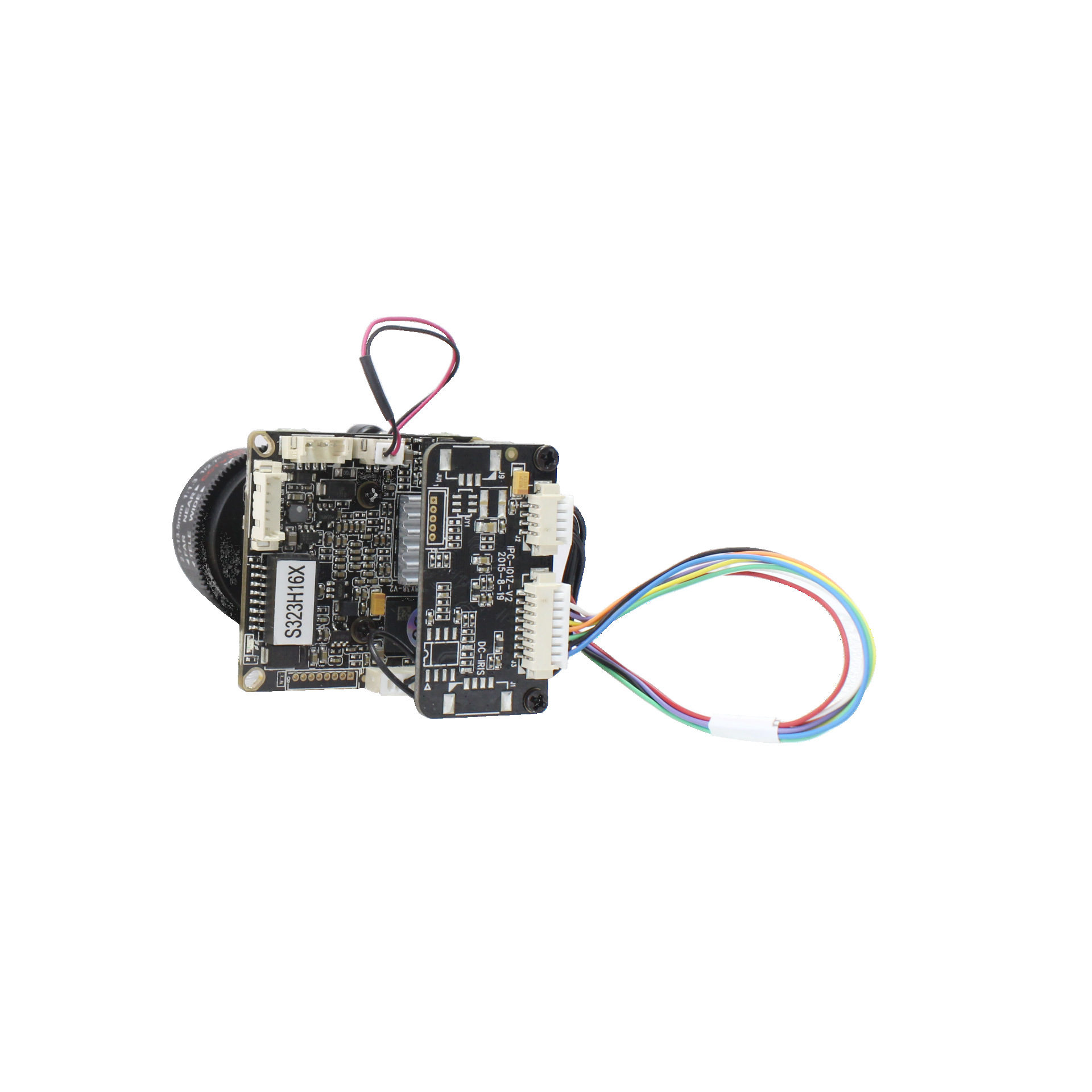

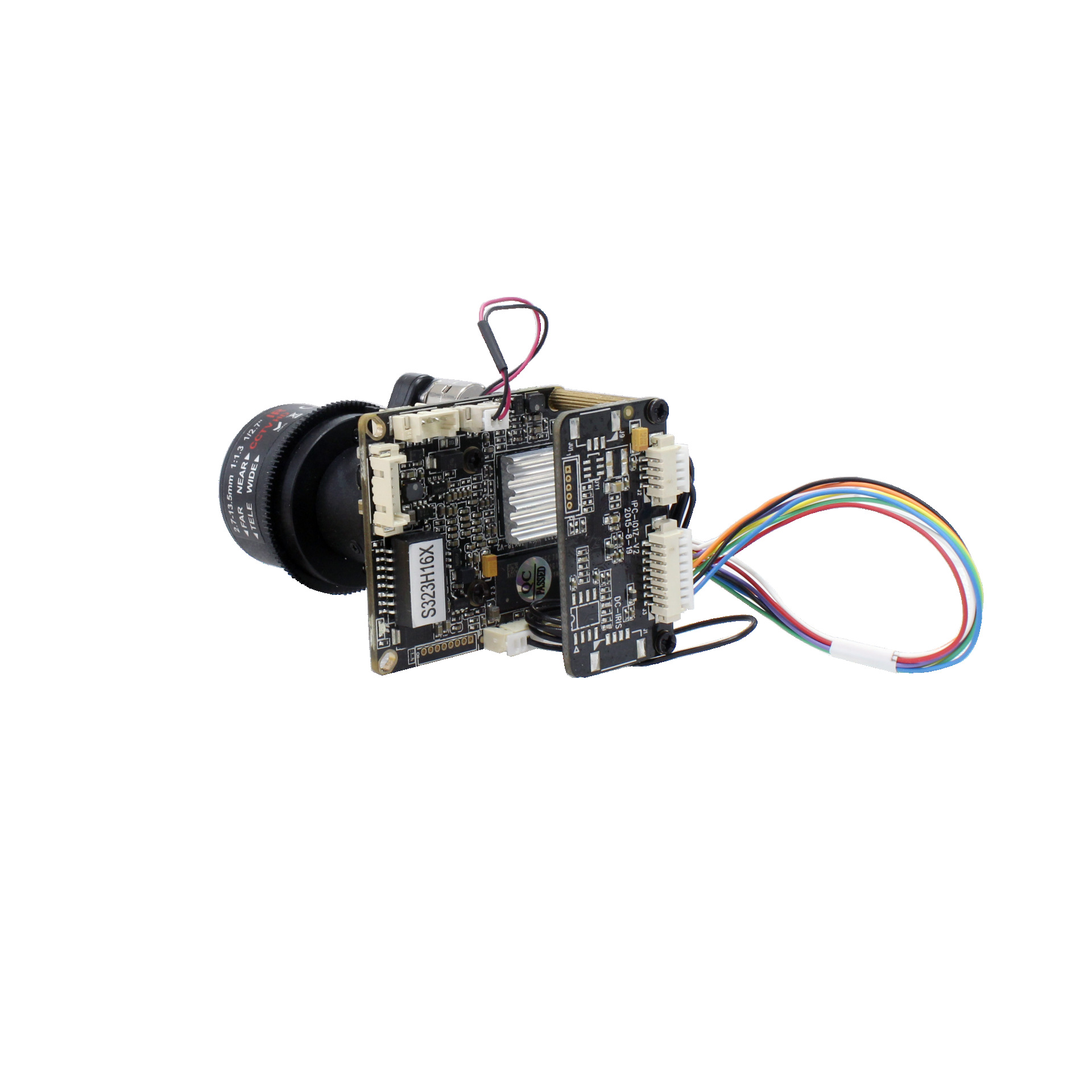

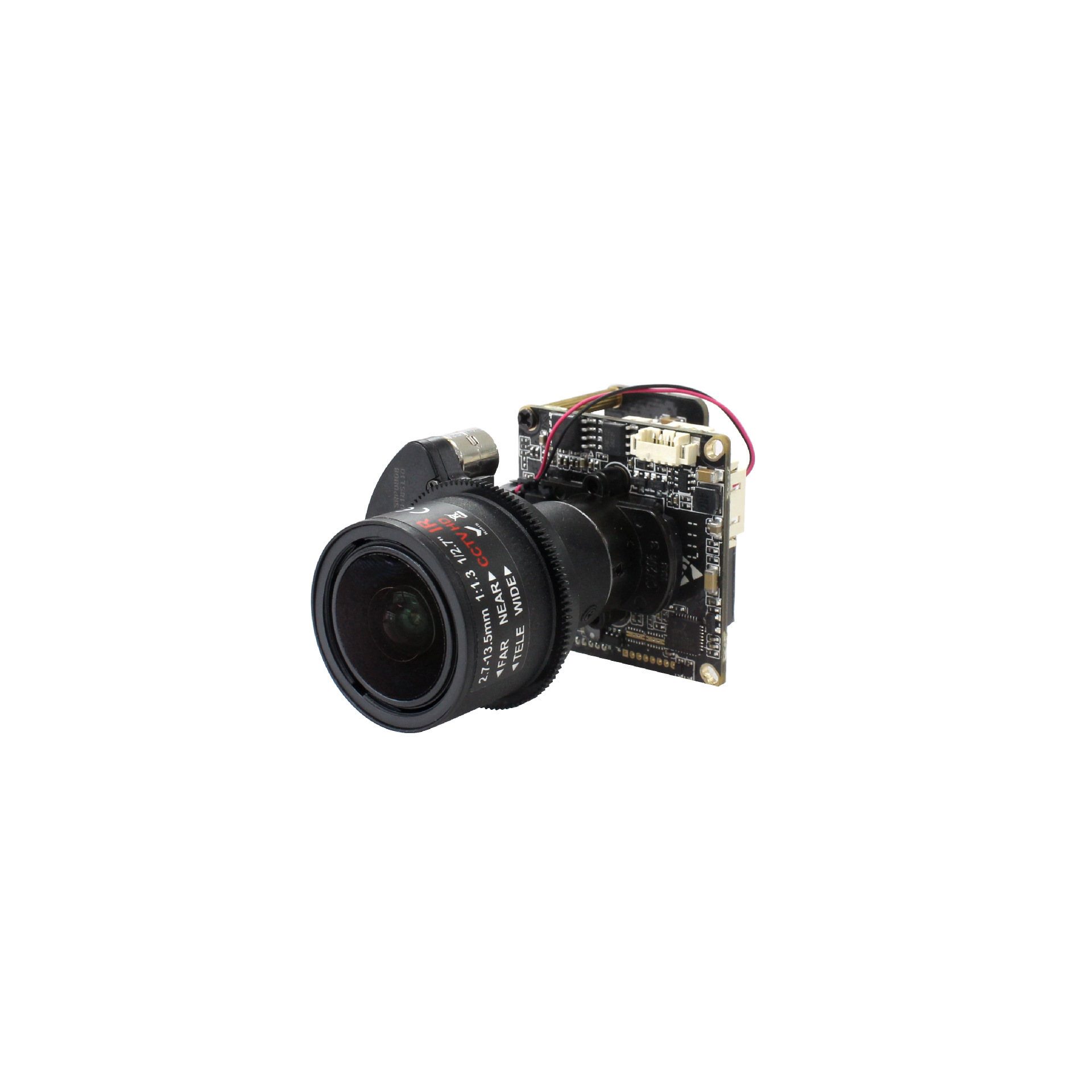

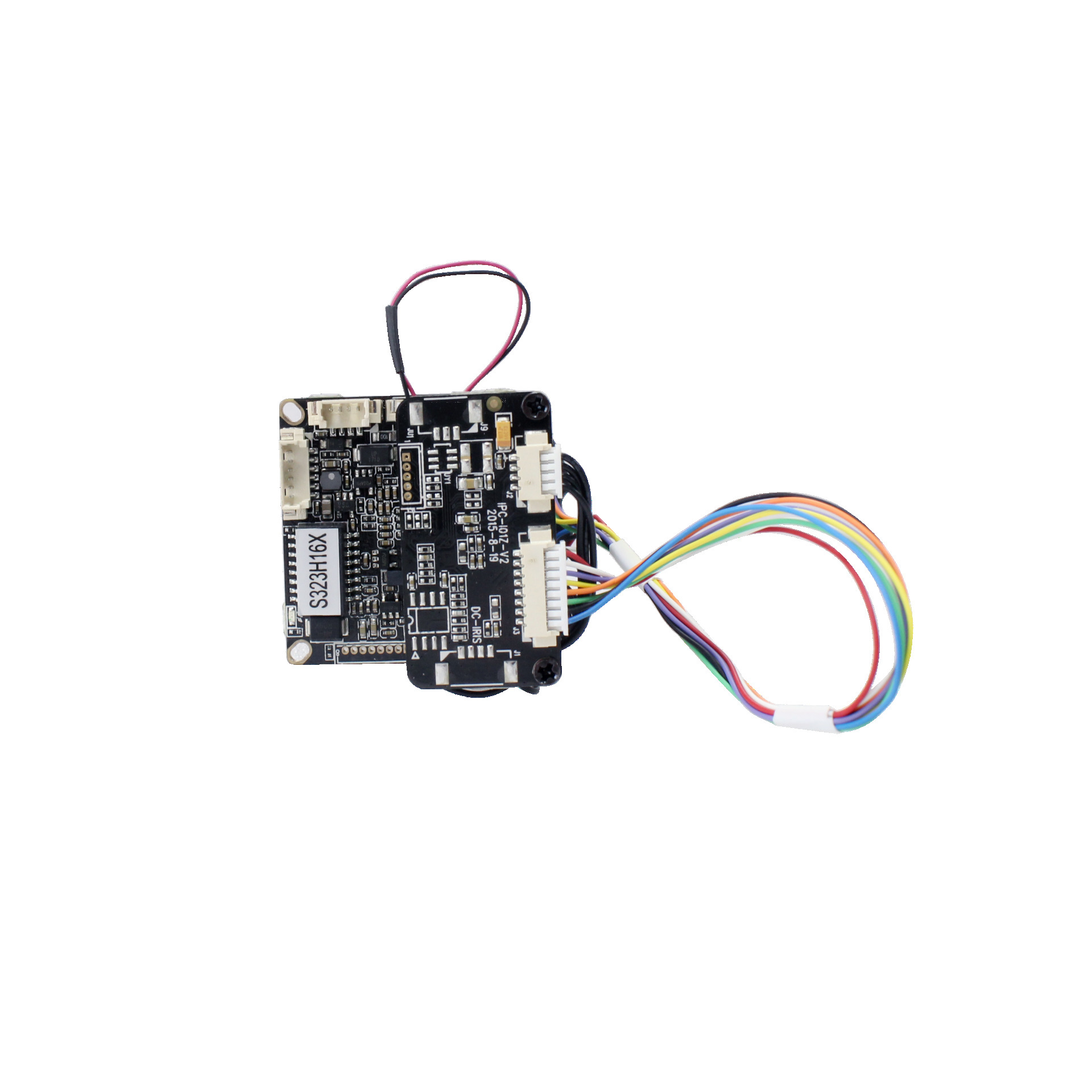

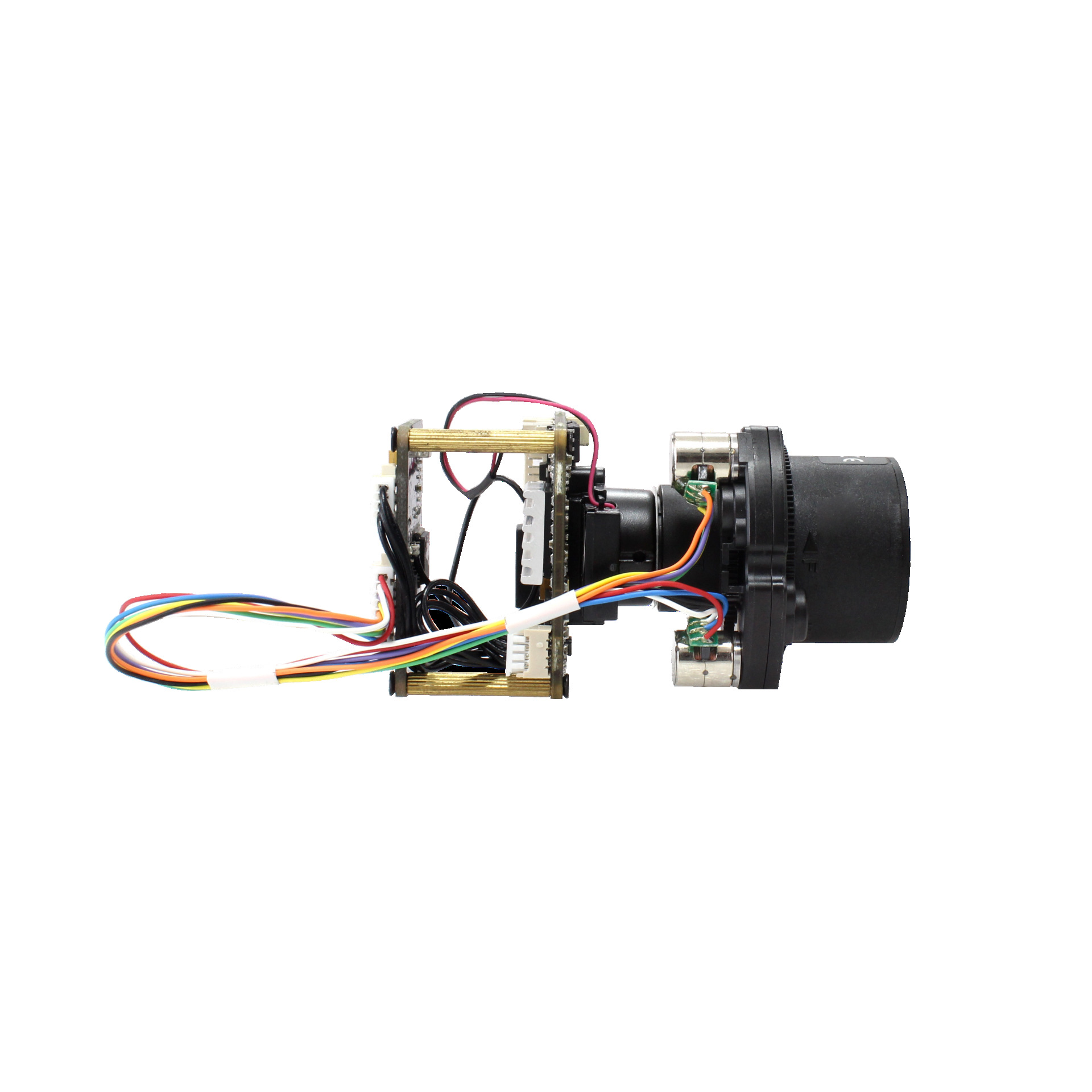

IP16VS323-AZ27135 1/2.9" 2MP Sony IMX323 realtime 30fps h.264 IP camera module board 2.7-13.5mm auto zoom lens

SKU: IP16VS323-AZ27135

$48.82

Weight: 0.09 kg

Pixel Size:

2.0μm

Description

H.264 video compressing, high compression, stream control accurate?stable, support dual stream
1/2.8" SONY CMOS Sensor, 2MP
4X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods
support dual stream
Support network disconnect, motion detection, Video masking, intelligent out off focus alarm
Smart coding
Up to 4 ROI area,
abundant network protocol
D-WDR, 3D noise reduction
ONVIF2.4, GBT28181

Model		IP16VS323-AZ27135
IP camera
Image sensor		1/2.8-lnch 2MP IMX323
DSP		Hi3516CV200
Effective pixels		1920(H)x 1080(V)
Scan system		progressive
Electronic shutter		1/25s~1/10000s
Min illuminator		Color:0.05Lux@F1.2,Black to white:0.01 Lux@F1.2
S/N Ratio		>50dB(AGC OFF)
IR Cut mode		ICR Switch
WDR		> 80dB D-WDR
Noise reduction		3DNR
Video masking		Up to 4 area
Lens type		5X automatic zoom lens, 2.7-13.5mm
Video
Coding		H.264/MJPEG
Video resolution	Main stream	1080P(1920x1080), 960P(1280x960), 720P(1280x720)
	Sub stream	D1(704x576)/VGA(640x480)/QVGA(640x360)/CIF(352x288)
Video frame		1 ~ 25fps (50HZ) 1 ~ 30fps (60HZ)
Video bit ratio		32KB ~ 16Mbps ( CBR/VBR)
Audio Coding		ACC, G711U, G711A
Picture setting		brightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE areadjustable, support privacy masking OSD Image eversion90°/ 270°,ICRSwitch auto or manual are optional
Smart function
Smart coding		Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROIarea
Smart detection		Support intelligent masking detection ,intelligent out off focus detection
Smart control		Support smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface		RJ45 10M/100M
Network protocol		IPv4,HTTP,TCP/IP,UDP,RTSP,SMTP,NTP,DHCP,PPPOE,DDNS,FTP
Wireless protocol		802.11b/g/n, Support WEP,WPA,WPA2 (Neet extra USB WiFi module)
Video protocol		CGI,RTSP,ActiveX
Access standard		ONVIF, Hikvision protocol
Client user		Up to 8 user at same time
Smart phone		iphone, ipap, Android
Interface
Alarm interface		1ch Alarm input, 1ch Alarm output
Reset interface		1ch Reset
USB interface		1ch USB interface, Support WiFi Module /TF card
Audio interface		1ch Mic/linear input, 1ch Audio output
General parameter
Power		DC 12V/1A (Not include)
Consumption		3W(MAX)
Temperature, humidity		-10°C~60°C,20-90%RH
Size		38x38mm

Pin Definition

Single Board H.264 Full function

No.	Pin Defination	Pitch	Preview
JP4 Power interface		1.25mm
1	DC12V
2	NC
3	NC
4	GND
J6 Network interface		1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connector light(Green)
6	Network status light(Yellow)
J1 IR-cut interface		1.25mm
1	IR-CUT control signal 12V-
2	IR-CUT control signal 12V+
J3 LED Board interface		1.25mm
1	LED board 12V power out
2	GND
3	LED feedback signal (0.8V-12V)
4	Infrared light enable control
J2 Function interface		1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	Reset
5	GND
6	USB_DP
7	USB_DM
8	5V power out
9	alarm out I/O(3.3V Level signal)
10	Alarm in
