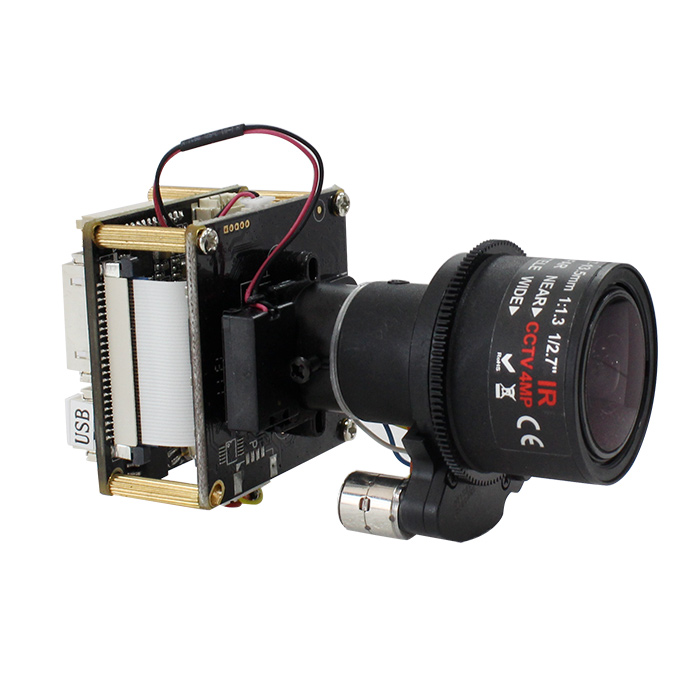

IP16DS123D-AZ27135 1/2.8" Sony IMX123 Starlight 3MP IP camera Module 2.7-13.5mm auto zoom

IP16DS123D-AZ27135 1/2.8" Sony IMX123 Starlight 3MP IP camera Module 2.7-13.5mm auto zoom

SKU: IP16DS123D-AZ27135

Sensor:

Video Coding:

Hole Distance:

Resolution:

$109.00

Weight: 0.12 kg

Description

IP16DS123D-AZ27135 1/2.8" Sony IMX123 Starlight 3MP IP camera Module 2.7-13.5mm auto zoom

Product features:

  • Use latest standard H.265 video compression technology,High compression ratio,accurate and stable stream control ,support dual stream

  • Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor

  • 5X optical zoom, focus faster, zoom process with clear throughout

  • Built-in automatic night and day double filter switching mechanism, with manual or automatic color

  • Support dual stream

  • Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm

  • Support intelligent coding control

  • Max supports 4 ROI regions of interest

  • Support rich network protocol

  • Support D-WDR,3D noise reduction

  • Support ONVIF protocol, GBT28181


ModelIP16DS123D-AZ27135
Camera
Image Sensor1/2.8" 3MP Progressive Sony IMX123 CMOS
CPUHisilicon 3516D
Effective Pixels2048(H)x1536(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)   automatic regulation
Min. Illumination0. 001Lux/F1.2 (Color)
S/N Ratio≥50db(AGC OFF)
Camera Features
Day/NightAuto(ICR)/Color/B/W
WDR> 80dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D
Lens interface5 times optical zoom lens, 2.7-13.5mm 4MP Automatic lens
Privacy MaskingUp to 4 areas
Video
CompressionH.264/MJPEG/H.265
Main Stream2048*1536/1920*1080/720P(1280*720)(1 ~ 25/30fps)
Sub StreamD1(704*576)/VGA(640*480)/QVGA(320*240)(1 ~ 25/30fps)
Bit Rate32KB ~16Mbps, support VBR, CBR
Imaging SettingAdjustable brightness, contrast, saturation, sharpness, white balance
AWB(automatic white balance), AGC(automatic gain), AE(automatic exposure control), AIC(automatic aperture correction)
support privacy area occlusion OSD superposition
image rotation: normal 90/270°automatic, manual or automatic color switching
Text OverlayChannel, Date &amp  Time, Bit Rate
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF 2.4
Max. User Access8 users, IE, Google, Firefox
Smart PhoneWindows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio inSupport
Audio outSupport
BNC Video outSupport
RS422/RS485Support
USBSupport (32G USB flash)
Alarm inSupport
Alarm outN/A
IO InterfaceSupport
Smart function
Smart coding

Supports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas

Smart detection

Support intelligent occlusion detection and intelligent defocus detection

Smart  control

Support intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction

General

Power Supply

DC12V / PoE (Optional 802.3af)

Power Consumption

<3W

Working Environment

-20°C~+55°C , Less than 90% RH

Dimensions

38 x 38mm

Weight

0.15kg


JP1 Power Supply Connector

1

DC12V

2

CVBS GND

3

CVBS Signal Out

4

GND

JE1 Network Connector

1

RJ45_1

2

RJ45_2

3

RJ45_3

4

RJ45_6

5

Network Connected Light (Green light)

6

Network Status Light (Yellow light)

J1 IR-CUT Connector

1

IR-CUT Control Signal 5V

2

IR-CUT Control Signal 5V

J2 DC Auto-iris Connector

1

Drive-

2

Damp-

3

Damp+

4

Drive+

J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6)

1

Focus A-

2

Focus A+

3

Zoom A—

4

Zoom A+

5

Zoom B+

6

Zoom B-

7

Focus B-

8

Focus B+

J4 P-Lris Connector

1

IRIS A-

2

IRIS B+

3

IRIS A+

4

IRIS B-

J5 IR Light Board Connector

1

IR Light Board Power Supply (12V)

2

GND

3

IR Feedback Signal Input (0.8V-12V)

4

IC PWM Control

JVO1 BNC Video out

1

BNC Video out

2

GND

J6 Functions Connector

1

Audio In (MIC/ Line )

2

GND (Audio)

3

Audio Out

4

GND

5

Reset

6

Alarm In

7

NULL

8

NULL

9

RS_485+

10

RS_485-

JU1

1

GND

2

USB_DP

3

USB_DM

4

5V Power Supply



Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
