G385A 30fps 1080P 1/2" Sony Starlight IMX385 + GK7605V100 2MP 1080P CCTV IP CAMERA Board Security Camera Module
Description
1/2" 2.0 megapixel CMOS sensor

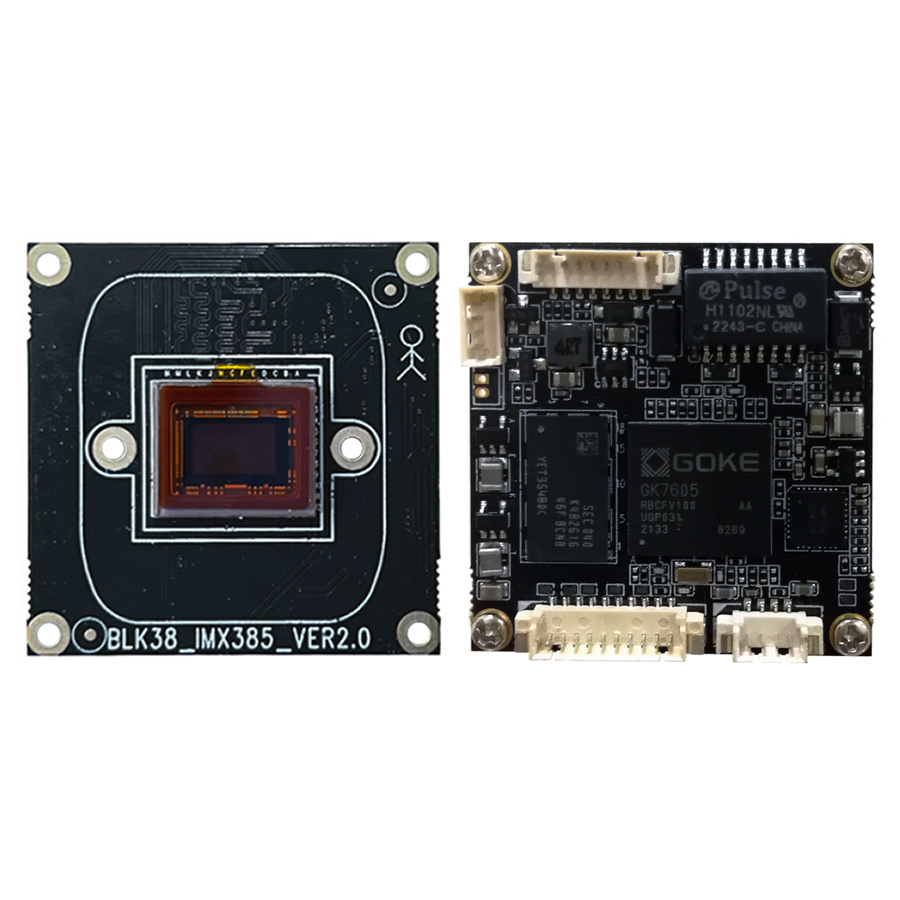

Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color /dual light mode, support PWM dimming
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection
Specification | |
| SOC | GK7605V100，Cortex A7@900MHz |
Sensor | 1/2" Progressive Scan CMOS IMX385 |
Min illumination | Color：0.001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 30 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 30 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi |
Reset | Support |
CVBS output | Not available |
Size | 38x38x18mm，38mm dual board structure |
Weight | 20 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max) |
Pin definition:
Packing list:

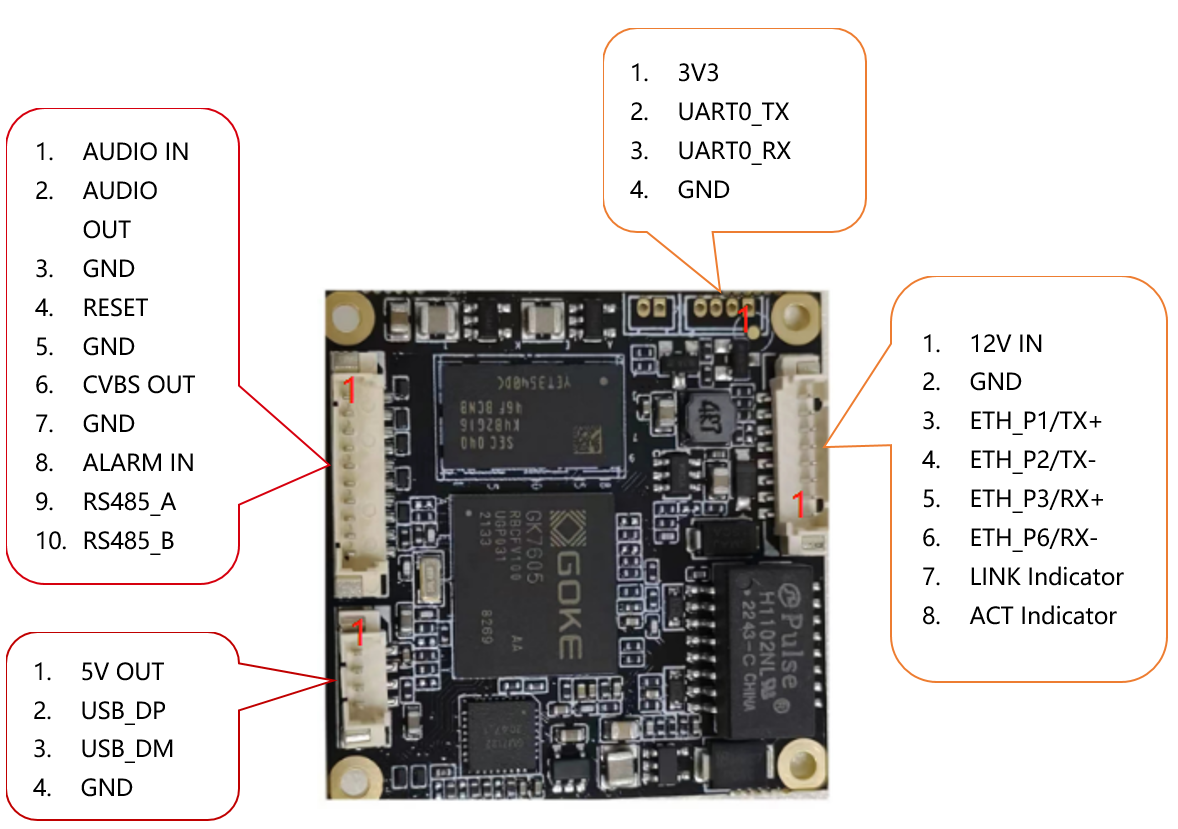

Pin Definition

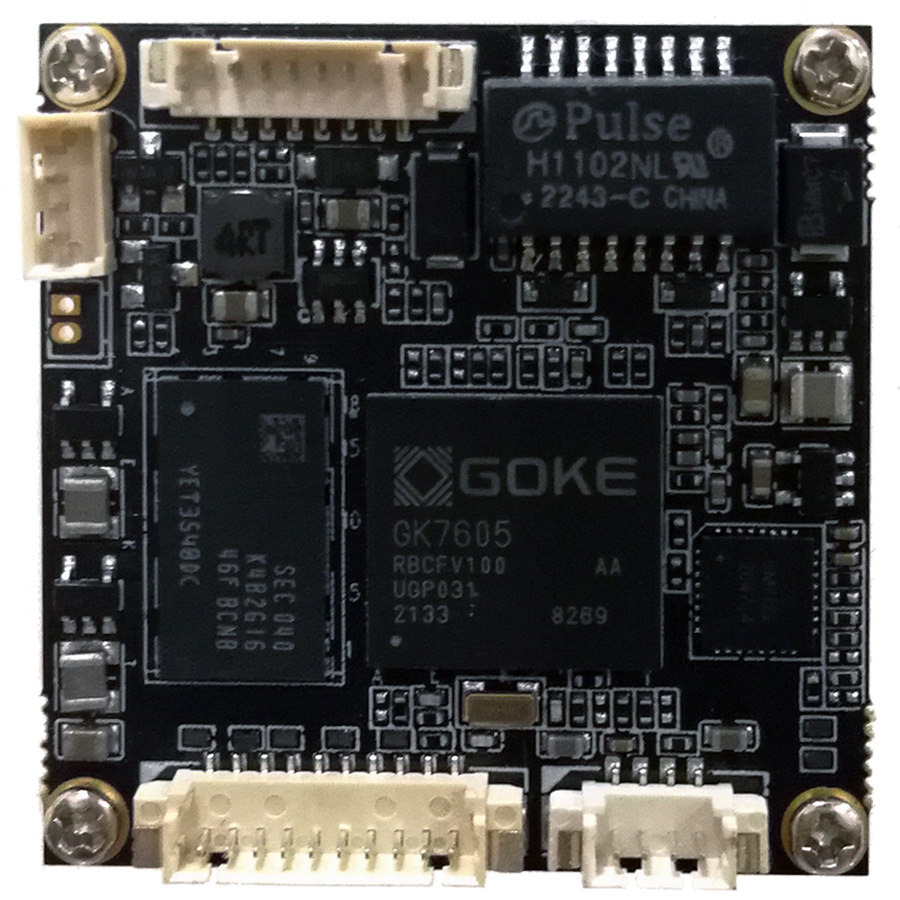

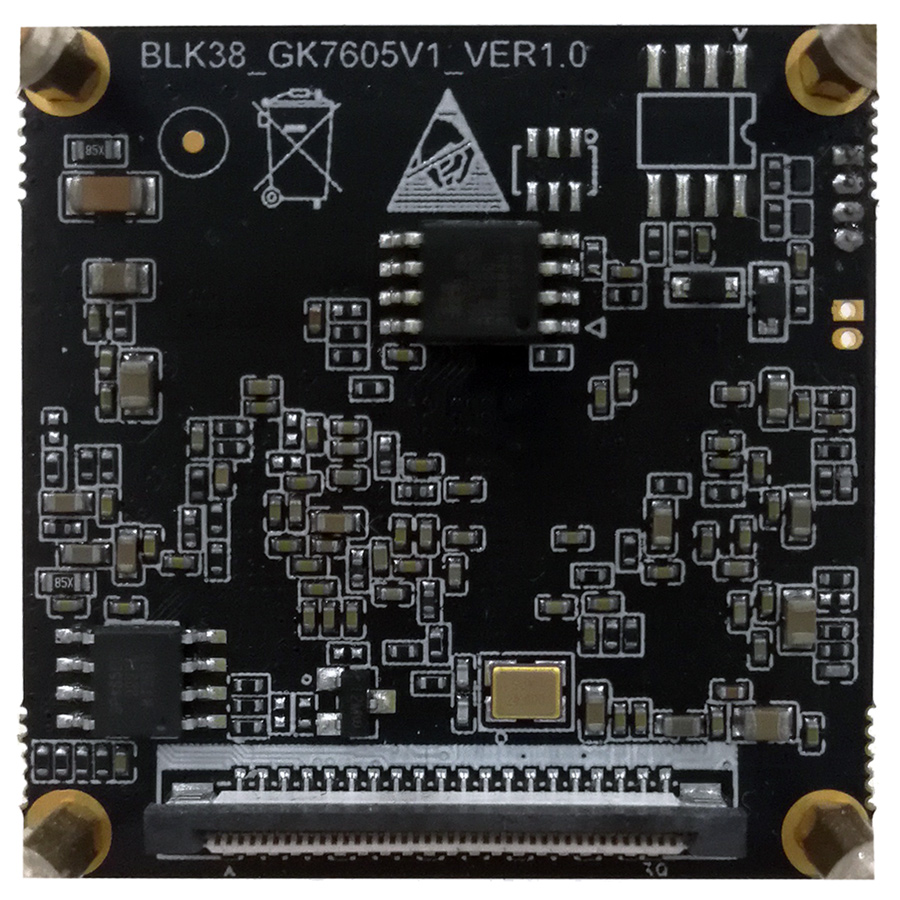

Dual Board
This product not include cable by default.
JP1 Power interface Preview Pitch
1 DC12V
1.25mm 2 Video GND 3 CVBS output 4 GND JE1 Network interface

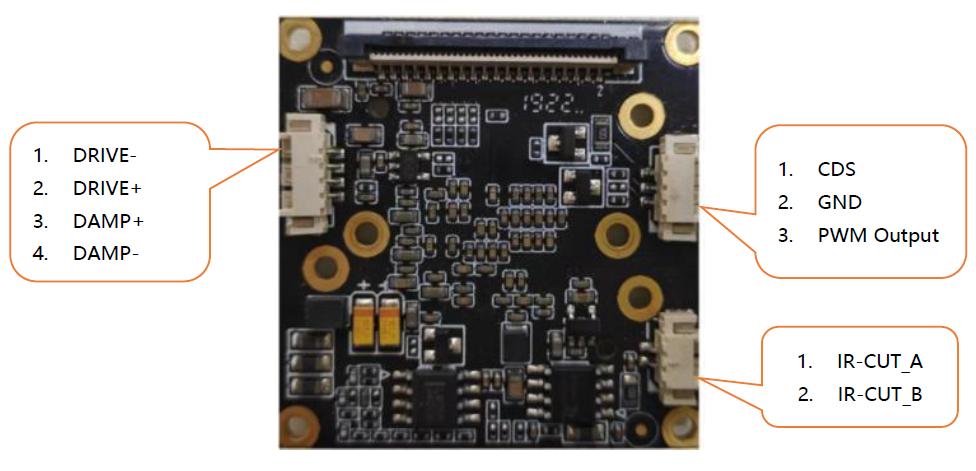

1.25mm 1 RJ45_1 (TX+) 2 RJ45_2 (TX-) 3 RJ45_3 (RX+) 4 RJ45_6 (RX-) 5 Network connection indicator light (green light) 6 Network status indicator light (yellow light) Sensor board J1 IR-cut interface 1.25mm 1 IR-CUT control signal 5V- 2 IR-CUT control signal 5V+ Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) Depend on color definition of Lens 1.25mm 1 drive- 2 damp- 3 drive+ 4 damp+ Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) Depend on color definition of Lens 1.25mm 1 Focus A- 2 Focus A+ 3 Zoom A- 4 Zoom A+ 5 Zoom B+ 6 Zoom B- 7 Focus B- 8 Focus B+ Sensor board J4 No definition J5 Infrared Light board interface 1.25mm 1 Infrared Light board12V power output 2 GND 3 LED feedback signal input(0.8V-12V) 4 Infrared Light enable control J6 function interface Support powerless microphone and Line in 1.25mm 1 Audio in 2 Audio GND 3 Audio out 4 GND 5 Reset 6 Alarm in 1, low level effective 7 Alarm in 2 (reserve), low level effective 8 Alarm out control GPO, 3.3V level signal 9 RS_485+ 10 RS_485- JU1 USB interface Support MT7601 /RT5370 USB wifi module.
Support -ET TF card extension board.1.25mm 1 GND 2 USB_DP 3 USB_DM 4 5V power out J7 expandion board FPC 1 USB_DP 2 USB_DM 3 System 4 SDIO Work Clock 5 SDIO Data3 6 SDIO Data2 7 SDIO Data1 8 SDIO Data 0 9 System 10 SDIO Order 11 SDIO Power enable control signal 12 SDIO Card detection signal 13 SDIO Pull-up resistor power out 14 Alarm out control GPO 15 System 16 DC5V Power out
