IP16DV689D-AZ0550

IP16DV689D-AZ0550

SKU: IP16DV689D-AZ0550

Sensor:

Video Coding:

Resolution:

$117.16

Weight: 0.15 kg

Pixel Size:

Description

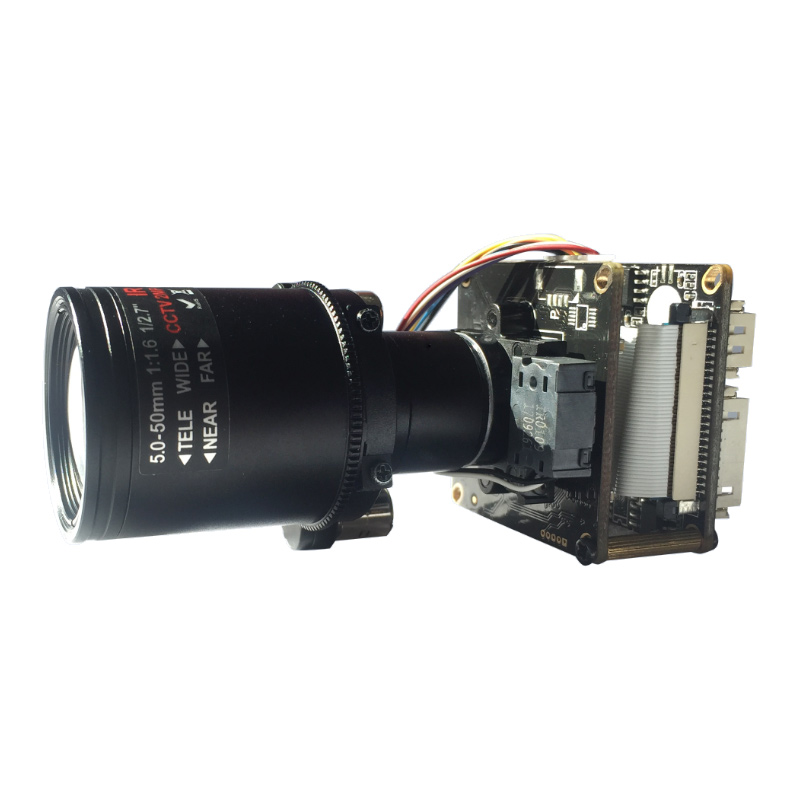

  • 4.0 megapixel 2 Boards IP Camera Module, Hi3516D + OV4689 CMOS

  • 1/3" 4.0 Megapixels Progressive Scan OV4689 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of 2592*1520

  • 0.05 Lux@F1.2 (color), 0.01Lux@F1.2(Black&amp White)

  • 38x38mm 2 boards

  • RS485,OptionalMotorized lens, IR - CUT (day/night), adapt Bullet, Dome

  • H.264 or H.265 video coding, double stream, ONVIF2.4, be compatible many NVR and platform management software.

  • Hisilicon Hi3516D

  • 1/3" 4.0 Megapixels Progressive Scan OV4689 CMOS

  • Max 25/30fps@4.0 Megapixels (2592*1520)

  • H.264/H.265 &amp  MJPEG dual-stream encoding

  • WDR &gt 80dB

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol


ModelIP16DV689D-AZ0550
Camera
Image Sensor1/3" 4MP Progressive Scan OV4689 CMOS
CPUHisilicon 3516D
Effective Pixels1920(H)*1080(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)
Min. Illumination0.05 Lux@F1.2 (color) 0.01Lux@F1.2(Black&amp White)
S/N Ratio≥50db(AGC OFF)
Lens Type10X Optical zoom Lens, 5-50mm
Camera Features
Day/NightAuto(ICR)/Color/B/W
WDR&gt 80dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D
Privacy MaskingUp to 4 areas
Video
CompressionH.264/ MJPEG/ H.265
Resolution1080P(1920*1080)/ 720P(1280*720)/ D1(704*576)/ VGA(640*480)/ QVGA(320*240)
Main Stream2592*1520(1~25fps)
2048*1520(1~25fps)
1920*1080(1~25/30fps)
Sub Stream704*576, 1-25(30)fps
640*480, 1-25(30)fps
640*352, 1-25(30)fps
320*240, 1-25(30)fps
1D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate32KB ~16Mbps, support VBR, CBR
Text OverlayChannel, Date &amp  Time, Bit Rate
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Wireless protocol802.11b/g/n  support WEP, WPA, WPA2 encryption protocol
ONVIFONVIF 2.4
Browser AccessSupport up to IE6.0 (built-in Web Server) browser, max 8 users
Smart PhoneSupport iPhone, iPad, Android
Auxiliary Interface
Audio in1ch MIC/Line in
Audio out1ch Audio out
BNC Video out1ch CVBS video out
RS422/RS4851ch RS485
USBSupport (Optional MT7601 WiFi/128G USB flash)
Alarm in/out1ch Alarm in
Alarm outN/A
IO Interface1ch Reset
General
Power SupplyDC12V 1A/ PoE ( optional 802.3af)
Power Consumption&lt  3W
Working Environment-20°C~+55°C , Less than 90% RH
Dimensions38 x 38 x 20mm
IR-CUT Hole22mm
Weight0.15kg

Pin Definition

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
