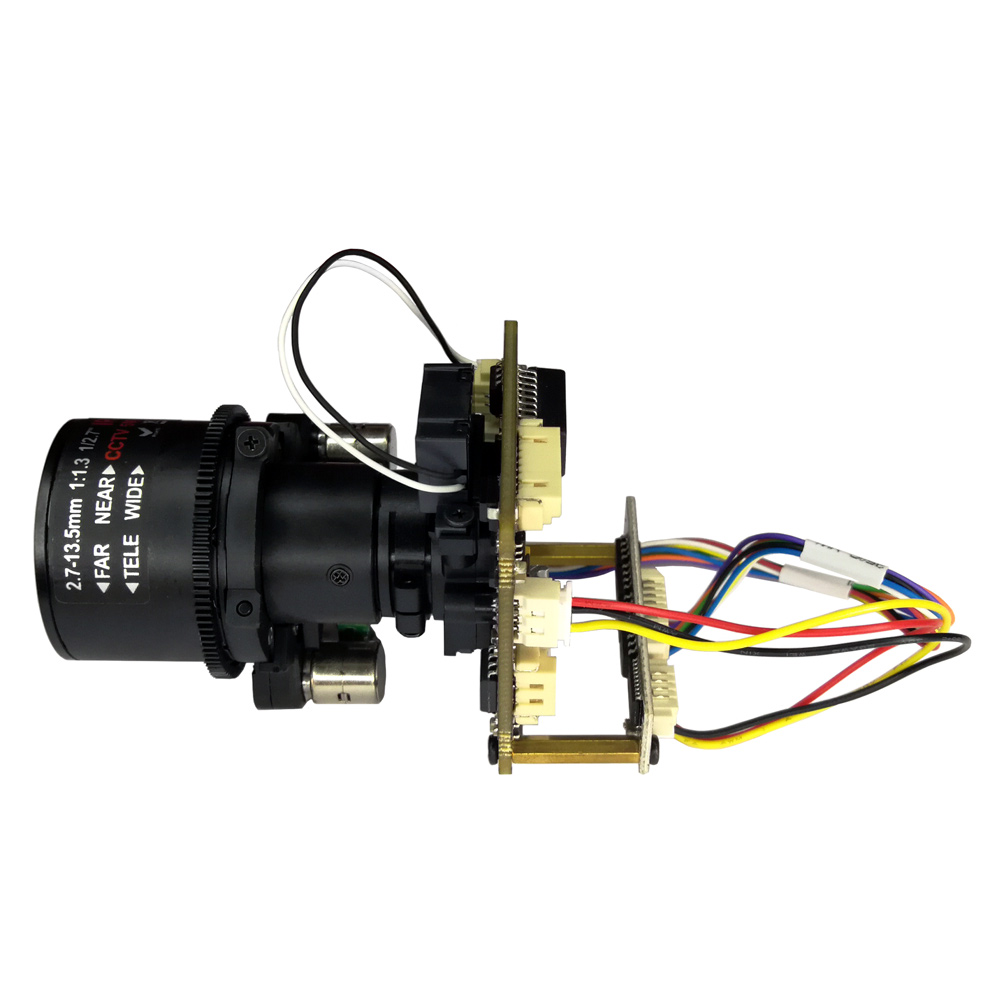

G307SZ5X 30fps Starvis 1080P 1/2.8" Sony Starlight IMX307 + GK7205V300 2MP 1080P 2.7-13.5mm 5X optical motorized zoom IP CAMERA Module
Description
1/2.8" 2MP Sony IMX307 starlight CMOS sensor

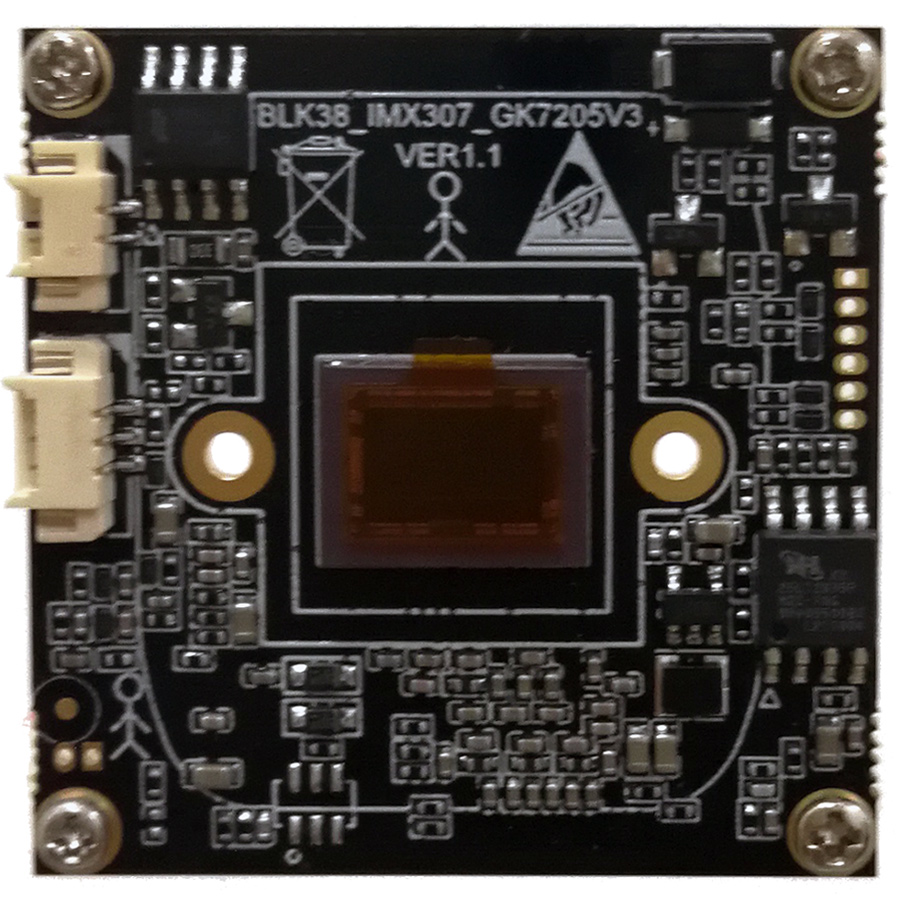

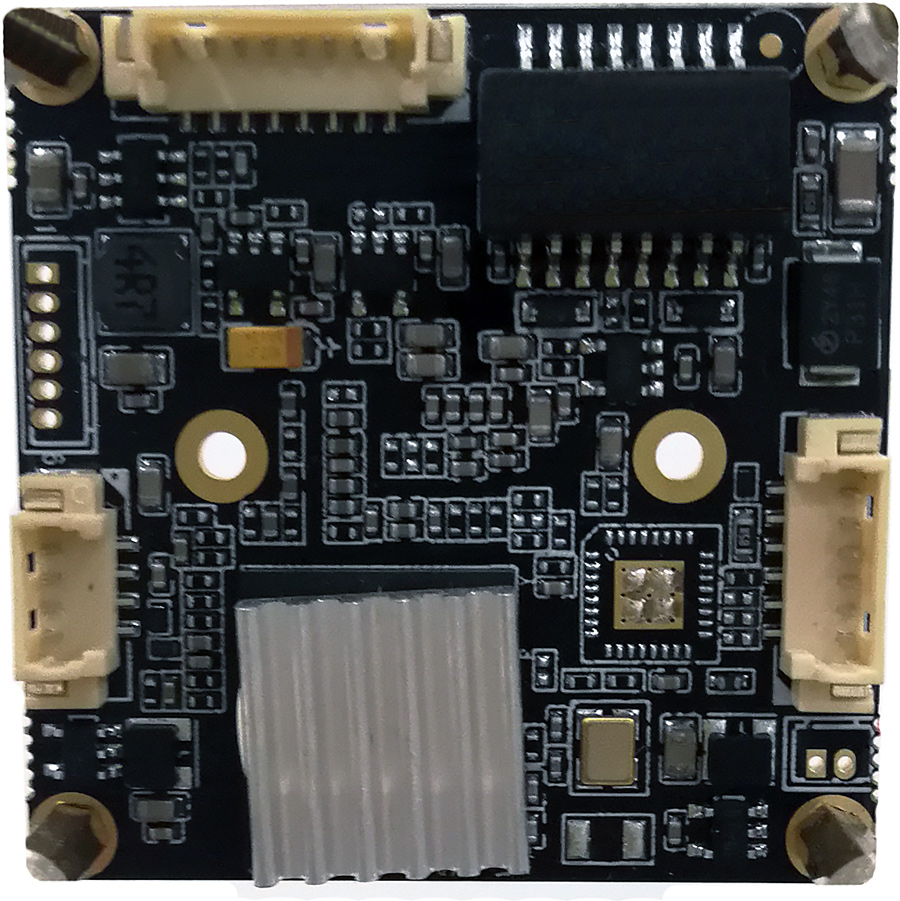

Standard 38*38 single board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color mode, support PWM dimming
Support CVBS analog video output (optional)
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarm
Specification | |
| SOC | GK7205V300，Cortex A7@900MHz |
Sensor | 1/2.8" Progressive Scan CMOS IMX327 |
Min illumination | Color：0.001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 30 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 30 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
| Lens | 5X optical motorized zoom 2.7-13.6mm |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi (Optional) |
Reset | Support |
CVBS output | 1ch CVBS analog video output (optional) |
Size | 38x38x10.8mm，38mm Single board structure |
Weight | 10 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max @30fps) |
Pin definition:
Packing list:
