1/1.8" SONY Starvis IMX178 + Hi3516A CMOS BOARD 5.0 MegaPixel H.265 IP CAMERA (IMX178, 5MP, H.265) (IMX178, 5MP)

1/1.8" SONY Starvis IMX178 + Hi3516A CMOS BOARD 5.0 MegaPixel H.265 IP CAMERA (IMX178, 5MP, H.265) (IMX178, 5MP)

SKU: IP16AS178D

Sensor:

Video Coding:

Hole Distance:

Resolution:

$119.40

Weight: 0.04 kg

Description

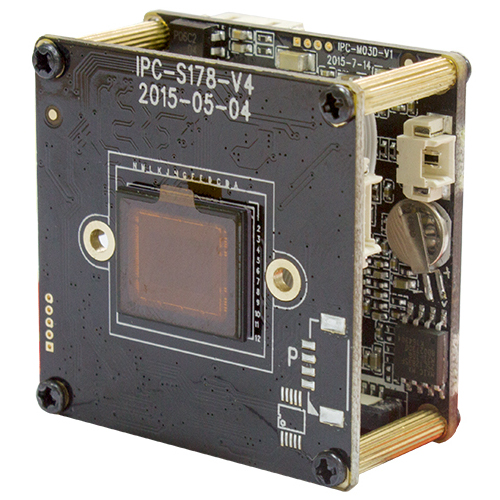

  • 5.0 megapixel low-light 2 Boards IP Camera Module, Hi3516A + SONY IMX178 CMOS

  • 1/1.8" 5.0 Megapixels Progressive Scan Sony IMX178 CMOS, Hisilicon Hi3516A Chipset, the highestresolution of 2592*1944, 0.001 Lux@F1.2 (color)

  • 38X38mm 2 boards

  • RS485,Optional Motorized lens, IR -CUT (day/night), adapt Bullet, Dome

  • H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatiblemany NVR and platform management software.

  • Hisilicon Hi3516A

  • 1/1.8" 5.0 Megapixels Progressive Scan Sony IMX178 CMOS

  • Max 5.0 Megapixels (2592*1944)

  • H.264/H.265 & MJPEG dual-stream encoding

  • Privacy Mask, Motion Detection

  • Support Onvif 2.4 protocol

  • WDR> 80db

ModelIP16AS178D
Camera
Image Sensor1/1.8" 5.0 megapixels Progressive Sony IMX178 CMOS
CPUHisilicon 3516A
Effective Pixels2592(H)*1944(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)
Min. Illumination0.001Lux/F1.2 (Color)
S/N Ratio≥50db(AGC OFF)
Camera Features
Day/NightAuto(ICR)/Color/B/W
WDR> 80dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D
Privacy MaskingUp to 4 areas
Video
CompressionH.264/MJPEG/H.265
Resolution2592*1944 / 2590*1920 / 2048*1536 / 1080P(1920*1080) / D1(704*576) / VGA(640*480) / QVGA(320*240)
Main Stream2592*1944 / 2590*1920 / 2048*1536 / 1920*1080(1 ~ 25/30fps)
Sub StreamD1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate32KB ~16Mbps, support VBR, CBR
Text OverlayChannel, Date & Time, Bit Rate
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF 2.4
Max. User Access8 users, IE, Google, Firefox
Smart PhoneWindows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio inSupport
Audio outSupport
BNC Video outSupport
RS422/RS485Support
USBSupport (128G USB flash with Extension Board ET9/ET9A)
Alarm inSupport (Optional with Extension Board ET9/ET9A)
Alarm outN/A
IO InterfaceSupport
General
Power SupplyDC12V / PoE (802.3af)
Power Consumption< 3W
Working Environment-20°C~+55°C, Less than 90% RH
Dimensions38 x 38 x 20mm
Weight0.15kg


Pin Definition

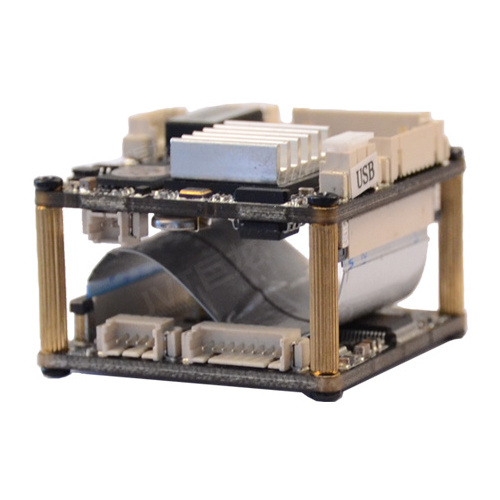

  • Dual Board


    This product not include cable by default.

    JP1 Power interfacePreview

    Pitch

    1DC12Vimage.png1.25mm
    2Video GND
    3CVBS output
    4GND
    JE1 Network interface


    		1.25mm
    1RJ45_1  (TX+)
    2RJ45_2  (TX-)
    3RJ45_3  (RX+)
    4RJ45_6  (RX-)
    5Network connection indicator light (green light)
    6Network status indicator light (yellow light)
    Sensor board  J1  IR-cut interface
    		1.25mm
    1IR-CUT control signal 5V-
    2IR-CUT control signal 5V+
    Sensor board J2  DC auto Iris interface (Support automatic aperture model: -AI)Depend on color definition of Lens1.25mm
    1drive-
    2damp-
    3drive+
    4damp+
    Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)Depend on color definition of Lens1.25mm
    1Focus A-
    2Focus A+
    3Zoom A-
    4Zoom A+
    5Zoom B+
    6Zoom B-
    7Focus B-
    8Focus B+
    Sensor board J4 No definition

    J5  Infrared Light board interface
    		1.25mm
    1Infrared Light board12V power output
    2GND
    3LED feedback signal input(0.8V-12V)
    4Infrared Light enable control
    J6  function interfaceSupport powerless microphone and Line in1.25mm
    1Audio in
    2Audio GND
    3Audio out
    4GND
    5Reset
    6Alarm in 1, low level effective
    7Alarm in 2 (reserve), low level effective
    8Alarm out control GPO, 3.3V level signal
    9RS_485+
    10RS_485-
    JU1  USB interface

    Support MT7601 /RT5370 USB wifi module.
    Support -ET TF card extension board.

    		1.25mm
    1GND
    2USB_DP
    3USB_DM
    45V power out
    J7 expandion board
    		FPC
    1USB_DP
    2USB_DM
    3System
    4SDIO Work Clock
    5SDIO Data3
    6SDIO Data2
    7SDIO Data1
    8SDIO Data 0
    9System
    10SDIO Order
    11SDIO Power enable control signal
    12SDIO Card detection signal
    13SDIO Pull-up resistor power out
    14Alarm out control GPO
    15System
    16DC5V Power out
