IR0117-M12 8MP 1/2.5" 20mm IR CUT filter M12 lens mount double filter switcher 7.9mm height
Description
For Fisheye lens, Pinhole lens which is short.Couldn't focus with ICR204-M12.

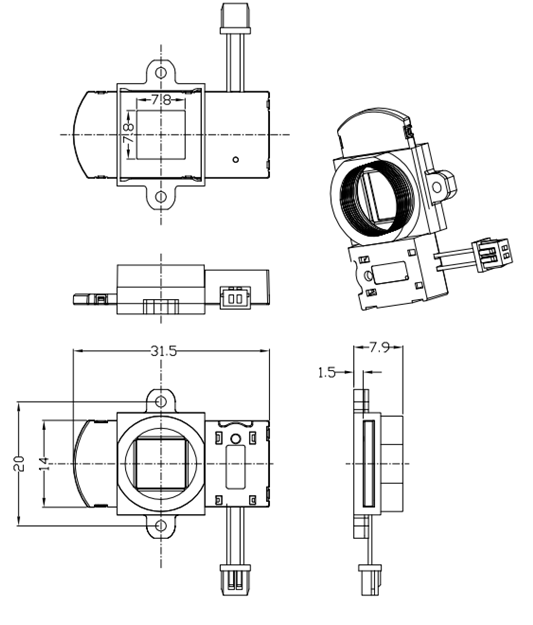

Please check draw of the item and your lens.
1.产品特性/Product Features
本产品适用于IP摄像机、百万像素高清摄像机、红外摄像机、枪机等各类摄像器材，用于过滤红外线，让它通过或截止，修正白天偏光问题，提升夜晚亮度。
This product is suitable for the IP camera,high-definition cameras millions of pixels,the infrared camera,the bolt and other kinds of photographic equipment,used to filter infrared,let it pass or cut-off,fixed a problem with polarized light during the day,night brightness of ascension.
2.性能参数/Performance Parameter
No. | 项目/Items | 参数/Specification |
2-1 | 阻抗/Resistance | 25Ω±3Ω(常温25℃下) 25Ω±3Ω(under the normal temperature25℃) |
2-2 | 额定电压/Rated Voltage |
|
2-3 | 适用电压范围/Operating Voltage | 3.3~12.0V DC |
2-4 |
动作方向/Actuation Direction |
The red wire of by positive voltage,the wire negative
The red wire of by negative voltage,the wire positive
|
2-5 |
动作/Actuation | 全姿势、动作范围不完全、不动作、不可干涉，通电时间 100~200ms Whole posture,actuation range is incomplete,no movement Do not interference,electrify time of 100~200ms |
2-6 |
性能保证/Performance Guarantee | 温度范围：-20℃~+80℃，动作满足2-1,2-2,2-3性能。 Temperature range:-20℃~+80℃,Actuation meet2-1,2-2,2-3 performance. |
3.可靠性测试/Reliability Test
No. | 项目/Items | 规格/Specification |
3-1 |
高低温试验/High And Low Temperature Test | 1.-20℃/24H,常温放置6H后，2-2性能保证动作，其性能均可满 足. -20℃/after 24h,6h at room temperature,2-2performance Guarantee actuation,its performance can be satisfied. 2.+80℃/24H,常温放置6H后，2-2性能保证动作，其性能均可满 足. +80℃/after 24h,6h at room temperature,2-2performance Guarantee actuation,its performance can be satisfied.
|
3-2 |
冷热冲击/Hot and Cold Impact | 按要求循环6次，常温放置6H后，测试性能可满足2-2动作保证性能。 Cycle6times as required,normal temperature after 6h,test
 0 |
3-3 |
振动试验/Vibration Test | 按照出货标准进行包装，频率10~55Hz,振幅1.0mm,3个方向测试，总测试时间30分钟，完成后再作测试，其性能能满足2-2项目中的所有特性。 After shipment in accordance with the standards for packaging,10~55hz frequency.The amplitude is1.0mm,3 direction test,its total test times 30minutes,again after the completion of the test,its performance can meet 2-2 all the features in the project. |
3-4 |
跌落试验/Drop Test | 产品放置在跌落台上，高度为1M，3面各2回，共6回。完成后再作测试，测试性能可满足2-2项目所有特性。 The product is placed on the fall,height of 1m,3the surface/2back,a total of 6times.After further testing, test performance can meet 2-2 all the features in the project. |
3-5 |
噪音/Noise | 1.机械噪音实用上无影响。 There is no influence of mechanical noise and practical. 2.电气噪音实用上无影响。 There is no influence of electrical noise in practical.
|
3-6 |
耐久性测试(寿命) |
Temperature:+20℃±5℃,humidity
under the condition of 60% plus or minus 10% Close to Open,Close/1.2s
a cycle,after 50000times actuation,against the foot 2-2 performance
guarantee. |
4.光学特性/Optical Properties
No. | 项目/items | 参数Specification |
4-1 | 波长参照Cut Off –Reference Wavelength(nm) | 640±10nm |
4-2 | 红玻璃透过率 The IR FilterTransmittance | 透过率在420-630nm之间，平均≥90% Transmittance between 420-630nm，Tave≧90% |
4-3 | 白玻璃透过率 The Dummy GlassTransmittance | 透过率在380-1100nm之间，平均≥91% Transmittance between 390-1100nm，Tave≧91% |
4-4 | 红玻璃(IR) 白玻璃(AR) | 1.Width(X) 宽度：8±0.05mm 2.Length(Y) 长度:9±0.05mm 3.Thickness(T) 厚度:0.21mm |
5.出货检查/Shipment Inspection Specifications
No. | 项目/Items | 条件Condition |
5-1 | 外观 Appearance | 无损痕、锈斑、污痕、缺料。 Nondestructive mark、rusty spot、stain、lack of material |
5-2 | 关键尺寸 Critical Size | 标注公差范围 Meet tolerance range |
5-3 | 出货检查Shipment inspection Specification | 1.常温：+20℃±5℃/Temperature:+20℃±5℃ 2.常湿：60%±25%/Often60% plus or minus25% 3. 4. |
6-4 | 特性/Features | 满足规格条款2-1~2-6/Meet Specification clause2-1~2-6 |
6.储存条件/Storage Conditions
6-1.不可再高温、高湿、腐蚀气体、有机气体等环境下存放。
Not in high temperature,high humidity,corrosive gas,organic gas deposit environment.
6-2.不可存放超过6个月。
Do not store more than 6 months.
6-3.焊接采用无铅焊锡
Does the welding using lead-free solder(Sn-Ag-Cu)

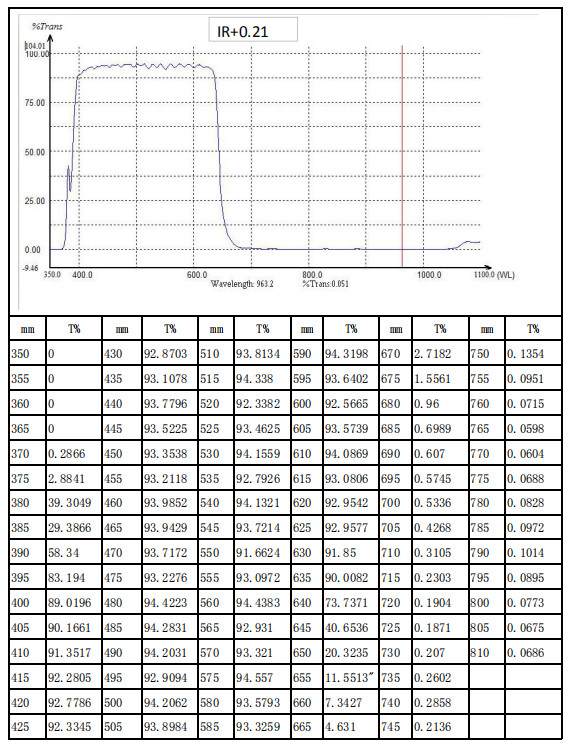

IR Filter Spectrum

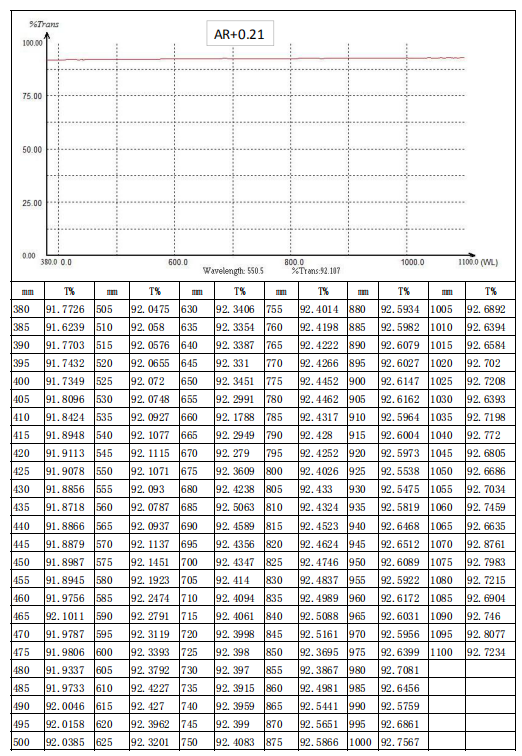

Dummy Glass Spectrum
Function:
1.
Fixed daytime color cast problems, enhancing the brightness at night.
IR-CUT filter switch automatically according to external light along
with the strength of automatic switching, making the image to achieve
the best results. That is, during the day or night, the dual filter can
automatically switch filters, therefore, whether in the next day or
night, can get the best imaging results.
2. According to the instruction automatic switch infrared cut-off and the full spectrum glass, day and night switch, automatic positioning, in order to achieve infrared end filter work during the day time, sunshine is vivid, restore the true color. Full spectrum glass work at night, and increase low illumination, night vision is very clear.
3. Use on the camera board, to modify the problem of partial color, out of focus, let video images do not lose focus, unbiased color and excellent resolution.
4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.

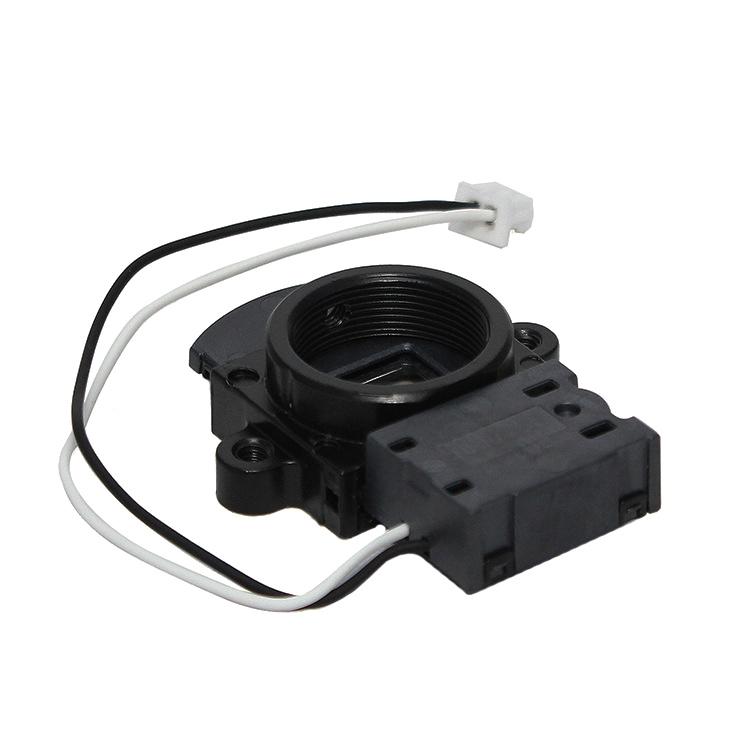

Packaging included: 1pcs 20mm strong magnet IR-CUT switch M12 lens mount holder
Remarks:

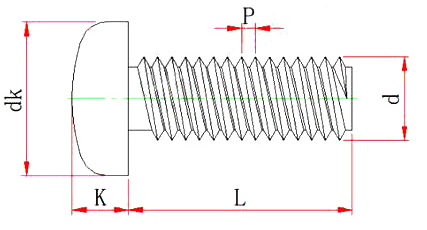

Need Screw like below to mound this holder on camera board and fix lens.
Model: PM2.0x4 / PM2.0x5
L: 4mm / 5mm
d: 2mm
dk: 3.5mm
K: 1.3mm
