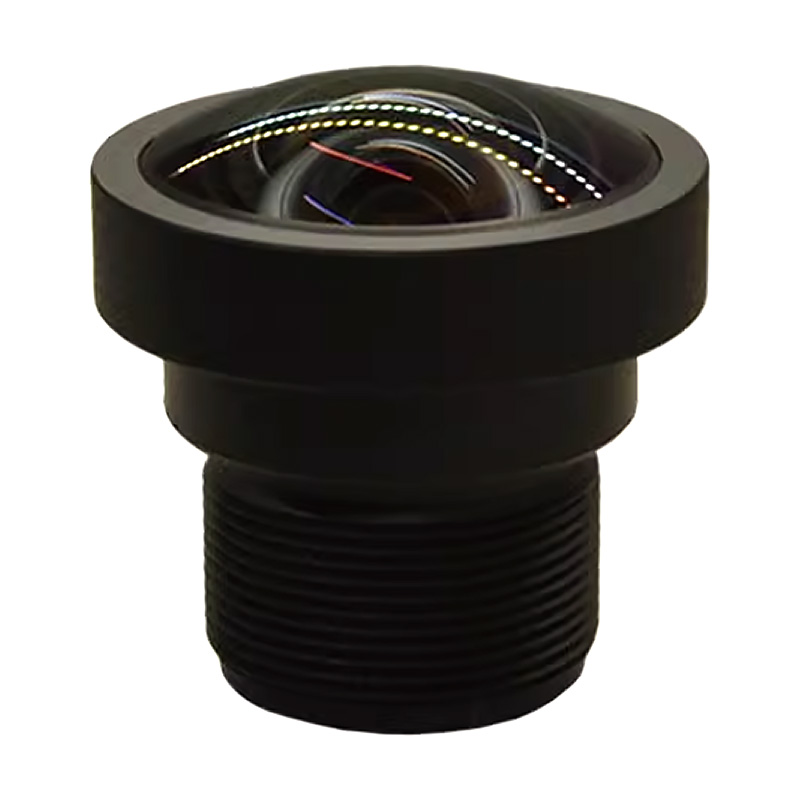

LF2.8-M12L-8MP 2.8mm focal length 1/2" M12 F2.8 8MP 110° HFOV 3% low distortion Lens
Description
| Model: | LF2.8-M12L-8MP | |
| Parameter of Lens | ||
| Pixel | 8MP | |
| Image Format | 1/2" | |
| Focal Length | 2.8mm | |
| Aperture | F2.4±5% | |
| Mount | M12×0.5 | |
| Field Angle D×H×V(°) | ° | 1/2 |
| D | 126 | |
| H | 110 | |
| V | 77 | |
| Optical Distortion | <=3.0% | |
| Dimension | Φ18×18.26mm | |
| Weight | 6g | |
| Flange Back Focal Length | 3.74mm | |
| Back Focal Length | 4.92mm | |
| IR | IR-CUT filter 650nm (optional) | |
| Operation | Iris | FIX |
| Focus | / | |
| Zoom | / | |
| Operating temperature | -20°C~+70°C | |

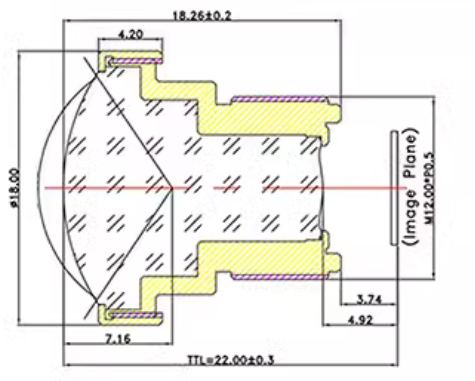

| Size | ||
 | ||
